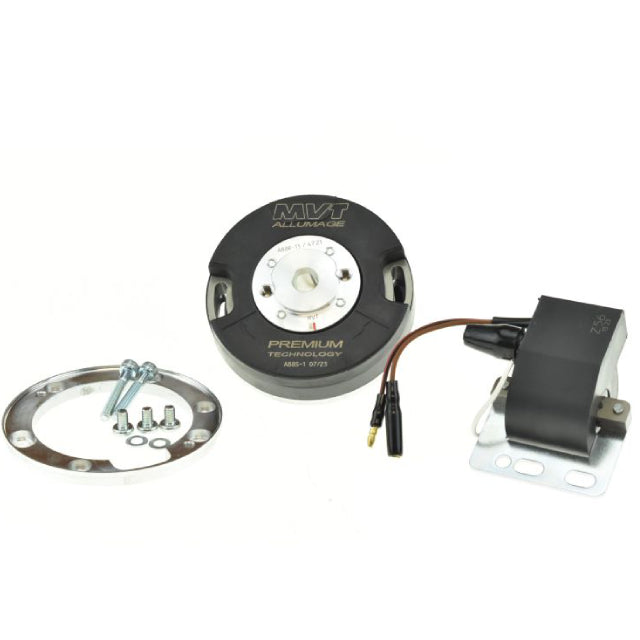

The MVT Premium ignition for Minarelli horizontal from 2003 onwards is really one of the most innovative ignitions.
It is an internal rotor with a real light, so this ignition is powerful enough to power the entire electrical system of the bike.
The MVT premium rotor is a perfect replacement for the stock ignition and is quite easy to install.
It incorporates a de-limited CDI.
A nice feature is the option to limit the MVT Premium rotors - on each rotor a blue wire is "left over". When this wire is connected to ground, the rotor cuts out at 6,500 RPM, so with the limitation on the bike does not go over 45 km/h.
that is why the MVT Premium rotor is not only the most powerful rotor with light, but also the ideal rotor for service intervals in which the bike does not usually go over 50 km/h.
CDI wiring
Stator wiring
Brown wire: must be jumper positive with original CDI or direct from a 12V battery.
These rotors are always set to PMS.
SKU: | PREM19 |
Type: | Analog |
Product Type: | No |
Make | Model |
---|---|
Make | Model |
MBK | Nitro 50 CAT (a partir del 2003) |
Yamaha | Aerox 50c.c. LC CAT (a partir del' 2003) |
Yamaha | Aerox Naked 50c.c. LC CAT (a partir del 2003) |
Yamaha | Jog R 50c.c. AC |
Yamaha | Jog RR 50c.c. LC |
Yamaha | Aerox 50c.c. (a partir del 2013) |
Adly | Thunderbike 50 AC |
Aprilia | SR 50c.c. LC (desde 94 hasta 97) - Minarelli |
Aprilia | SR 50 Netscaper - Minarelli horiz |
Aprilia | SR 50 Stealth - Minarelli horizontal |
Aprilia | Gulliver 50c.c. AC |
Aprilia | SR 50 Racing (antes del '2000) - Minarelli horiz |
Aprilia | SR 50c.c. WWW LC(desde '2000) - Minarelli horiz. |
Aprilia | Gulliver 50c.c. LC |
Aprilia | Rally 50c.c. AC |
Aprilia | Rally 50c.c. LC |
Aprilia | Sonic 50c.c. AC |
Aprilia | Sonic 50c.c. LC |
Aprilia | SR 50 WWW - Minarelli horizontal |
Benelli | Naked 50c.c. AC (desde 2003) - Motor Minarelli |
Benelli | 491 50c.c RR Replica LC (< 2003) - Motor Minarelli |
Benelli | 491 50c.c. RR LC (< 2003) - Motor Minarelli |
Benelli | K2 50c.c. AC (aire) - Minarelli horiz. |
Benelli | K2 50c.c. LC (agua) - Minarelli horiz. |
Beta | ARK 50c.c. LC (Minarelli horizontal) |
Beta | Eikon 50c.c. LC - Minarelli horizontal |
Beta | Chrono 50c.c. AC - Minarelli horiz. |
Beta | Quadra 50c.c. AC - Minarelli horizontal |
Beta | ARK 50c.c. AC (Minarelli horizontal) |
Beta | Tempo 50c.c. AC |
Italjet | Dragster 50c.c. LC |
Kreidler | Flory 50c.c. AC |
Kreidler | Florett 50c.c. AC |
Malaguti | F12 Phantom 50cc AC (a partir del 2004) |
Malaguti | F10 Wap 50c.c. AC (a partir del 2004) |
Malaguti | Yesterday 50c.c. AC |
Malaguti | Centro 50c.c. AC |
Malaguti | F15 Firefox 50c.c. LC (agua) (a partir del 2004) |
Malaguti | F15 Firefox 50c.c. AC (aire) a partir del 2004) |
Malaguti | F10 Jet Line 50c.c. AC (antes del '99) |
Malaguti | F12 Phantom 50c.c. LC (agua) |
Malaguti | F12 Phantom 50c.c. LC (a partir del 2004) |
Malaguti | F12 Phantom 50c.c. AC (aire) |
Malaguti | F15 Firefox 50c.c. LC |
Malaguti | F10 CAT 50c.c. (a partir del '99) |
MBK | Fizz 50c.c. LC |
MBK | Flipper 50c.c. AC |
MBK | Equalis 50c.c. AC |
MBK | Mach G 50c.c. LC (antes del 2003) |
MBK | Ovetto 50c.c. AC |
MBK | Evolis 50c.c. AC |
MBK | Forte 50c.c. LC |
MBK | Mach G 50c.c. AC |
Yamaha | Zest YE 50c.c. AC |
Yamaha | Neo's 50c.c. AC |
Yamaha | Why 50c.c. AC |
Yamaha | Breeze 50c.c. (AC) |
Yamaha | Jog 50c.c. AC |
Yamaha | Axis 50 AC (aire) |
Aprilia | Area 51 LC - 50c.c. |
Aprilia | Scarabeo 50c.c. AC (antes del '98) |
Italjet | Formula 50c.c. LC (agua) |
Malaguti | Ciak 50c.c. AC |
MBK | Mach G 50c.c. CAT LC (a partir del 2003) |
MBK | Nitro 50c.c. LC CAT (a partir del 2003) |
Yamaha | Zuma 50c.c. AC |
Yamaha | Zuma II 50c.c. AC |
Aprilia | Scarabeo 50c.c. AC (a partir del '98) |
CPI | Popcorn 50c.c. AC (> 2003/Bulón 12mm) - Min. horiz |
CPI | Hussar 50c.c. AC (antes del 03) - Minarelli horiz. |
CPI | Popcorn 50c.c. AC (< 2003/Bulón 10mm) - Min. horiz |
CPI | GTR 50c.c. LC - Minarelli horiz. |
CPI | Hussar 50c.c. AC(> 2003 / Bulón 12mm) - Min.horiz |
CPI | Oliver 50c.c. AC (> 2003/Bulón 12mm) - Min.horiz |
CPI | Oliver 50c.c. AC (< 2003 / Bulón 10mm) - Min.horiz |
Keeway | Focus 50 |
Keeway | RY8 50 |
Keeway | Hurricane 50 |
Keeway | RX8 50 |
Keeway | Flash 50 |
Keeway | F-ACT 50 |
Keeway | Matrix 50 |
