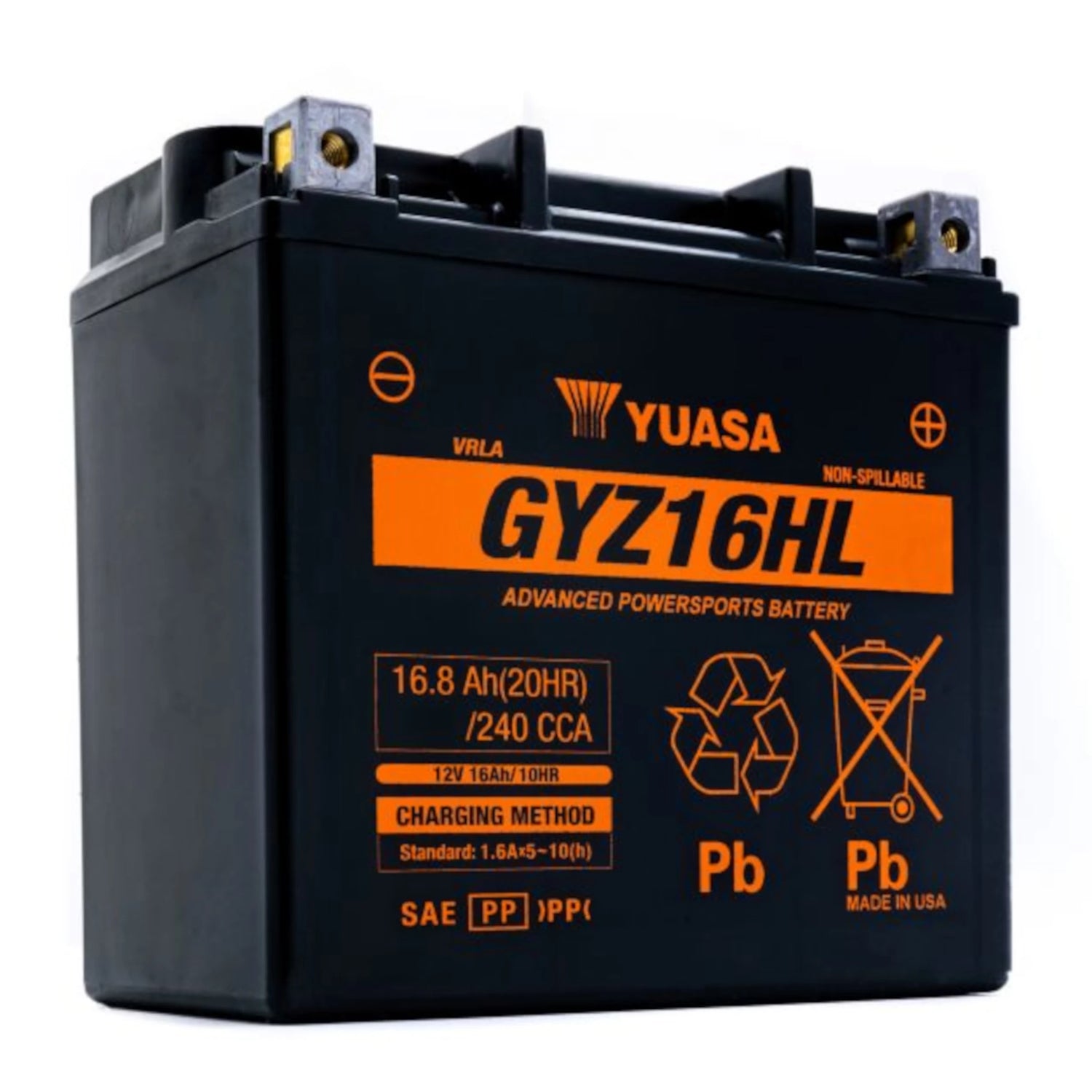

Battery GYZ16HL wet Yuasa

Battery GYZ16HL wet from manufacturer Yuasa.

The Yuasa GYZ16HL battery is the component you need if you are looking for maximum reliability when starting your Harley-Davidson. Large displacement V-Twin engines require a very strong initial power burst to move the pistons, and this GYZ range is specifically designed to deliver excellent cold cranking power (CCA), ensuring the bike starts on the first try even after periods of inactivity.

By using AGM technology (Absorbent Glass Mat separator), the acid is completely immobilized, making it a leak-proof and spill-proof part. This is essential in bikes with high vibrations, as the internal structure is reinforced to prevent corrosion and plate shedding, extending the battery’s lifespan much longer than conventional models.

One of the great practical advantages is the design of its pole terminals, which allow connection both from the front and from above, making installation easier in the tight battery compartments of American custom bikes. In addition, it comes factory filled and charged, so you just need to install it and ride without any hassle with acids or initial charging.

Technical specifications

• Voltage: 12V
• Capacity: 16 Ah (10h)
• Energy capacity: 192 Wh
• CCA (Cold Cranking Amps): 240 A (SAE)
• Technology: Maintenance-free AGM
• Factory activated: Yes
• Length: 150 mm
• Width: 87 mm
• Height: 145 mm
• Weight: 5.6 kg
• Positive terminal: Front right
• Negative terminal: Front left
• Connection type: Top and front

Compatible models

HARLEY DAVIDSON

• RA 1250 Pan America ABS 2021-2023
• RA 1250 S Pan America Special ABS 2021-2023
• RH 975 Nightster ABS 2023-2023
• RH 975 S Nightster Special ABS 2023-2023
• RH 1250 S Sportster ABS 2021-2023
• XG 500 Street 2015-2020
• XG 750 A Street Rod ABS 2017-2020
• XG 750 Street 2015-2016
• XG 750 Street ABS 2017-2020
• XL 1200 C Sportster Custom 2004-2013
• XL 1200 C Sportster Custom ABS 2014-2020
• XL 1200 CA/CB Sportster Custom Limited 2013-2017
• XL 1200 CX Sportster Roadster ABS 2016-2020
• XL 1200 L Sportster Low 2007-2009
• XL 1200 N Sportster Nightster 2008-2012
• XL 1200 NS Sportster Iron ABS 2019-2020
• XL 1200 R Sportster Roadster 2004-2008
• XL 1200 T Sportster Superlow ABS 2014-2020
• XL 1200 V Sportster Seventy-Two 2013-2016
• XL 1200 X Sportster Forty Eight 2010-2020
• XL 1200 XS Sportster Forty Eight Special ABS 2019-2020
• XL 53 883 C Sportster Custom 2004-2004
• XL 883 C Sportster Custom 2005-2010
• XL 883 L Sportster Low 2005-2010
• XL 883 L Sportster Super Low 2011-2020
• XL 883 N Sportster Iron 2009-2020
• XL 883 R Sportster Roadster 2007-2015
• XL 883 Sportster 2004-2009
• XR 1200 2008-2010
• XR 1200 X 2010-2012
