Battery lithium HJTX20CH-FP JMT

Lithium Battery HJTX20CH-FP from the manufacturer JMT for motorcycle.

The JMT HJTX20CH-FP lithium battery is a modern alternative to conventional lead-acid batteries. Its LiFePO₄ lithium-ion technology makes it possible to greatly reduce the overall weight, with a ready-to-install weight of only 1.36 kg.

By replacing a comparable lead-acid battery with a JMT lithium battery, it is possible to save up to 5 kg depending on the original battery installed. This weight reduction is especially noticeable on motorcycles where every kilo counts, without the need to make major modifications to the battery compartment.

The HJTX20CH-FP model incorporates a charge indicator with a test button and blue LEDs, useful for quickly checking the battery status. It also features an integrated balancer, responsible for maintaining uniform discharge and charge between the cells.

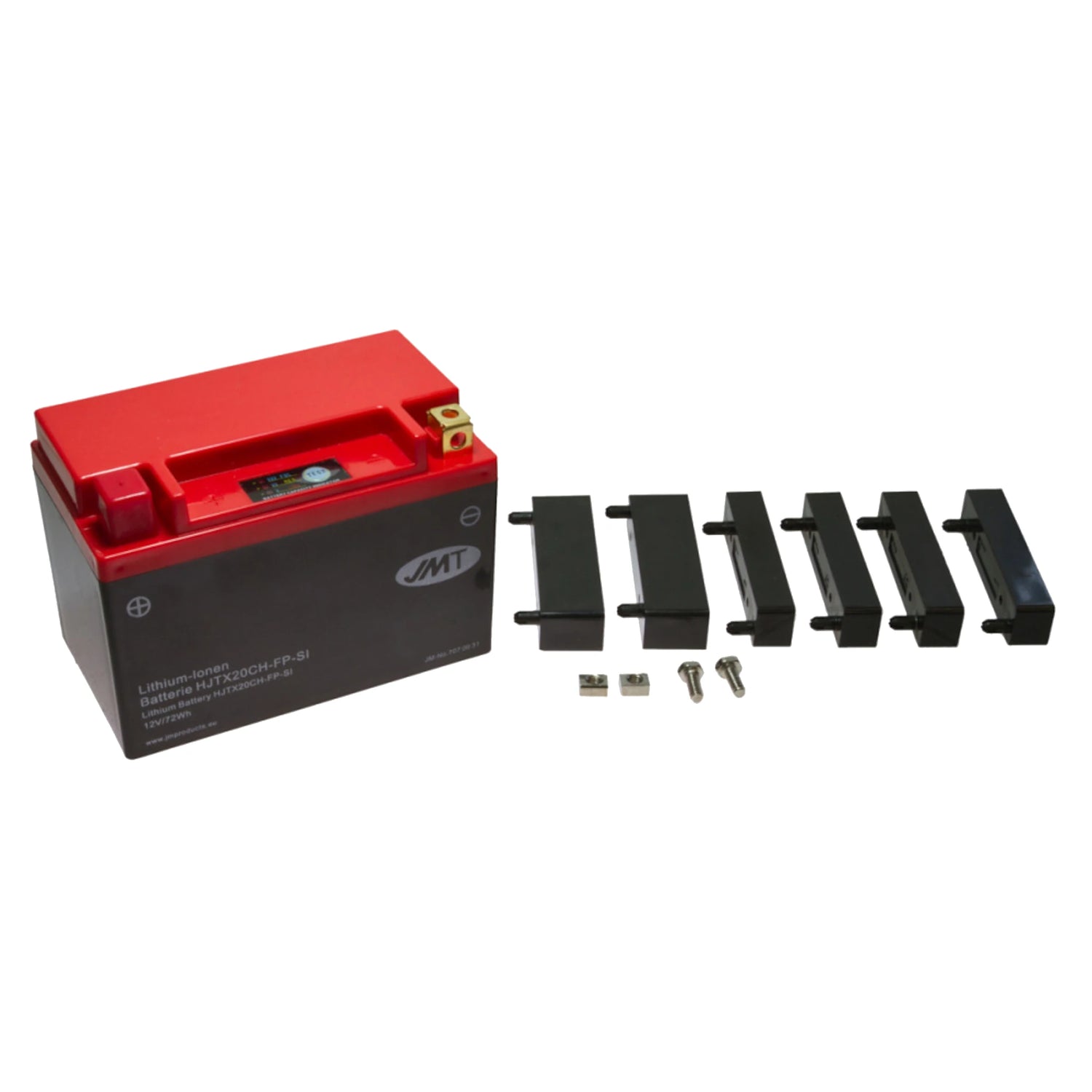

The battery is supplied with adhesive Clutch friction plate to adjust the height and facilitate installation in housings originally intended for lead-acid batteries. In addition, its connections are equivalent to those of a conventional battery, allowing quick replacement if the dimensions and polarity match.

Thanks to its acid-free construction, it can be installed in any position and requires no maintenance. The casing with a red cover identifies the latest-generation range of JMT batteries.

Important charging information

• Recommended charger: charger suitable for lithium batteries
• Recommended charging current: 3 A
• Maximum current for fast charging: 24 A
• Maximum charging voltage: 14.9 V
• Caution: do not use chargers with a desulfation function for deeply discharged batteries
• Declared performance: sufficient starting capacity down to -5 °C according to the manufacturer

Technical specifications

• Product type: lithium battery
• Brand: JMT
• Model: HJTX20CH-FP
• Technology: LiFePO₄ lithium-ion
• Voltage: 12 V
• Capacity: 6 Ah 10h
• Energy capacity: 72 Wh
• Version: maintenance-free lithium
• Activated: yes
• CCA according to the manufacturer: 360 A
• Manufacturer test standard: SAE
• SAE tested with JMP-Tester: 545 A
• DIN tested with JMP-Tester: 510 A
• EN tested with JMP-Tester: 300 A
• Length: 150 mm
• Width: 87 mm
• Adjustable height: 105, 122, 130, 139, 147 and 164 mm
• Ready weight: 1.36 kg
• Acid pack included: no
• Connection type: top and front
• Positive terminal: front left
• Negative terminal: front right
• Gas vent: none
• Status indicator: via test button and LED
• Clutch friction plate included: yes
• Water resistance: water-resistant according to the manufacturer
