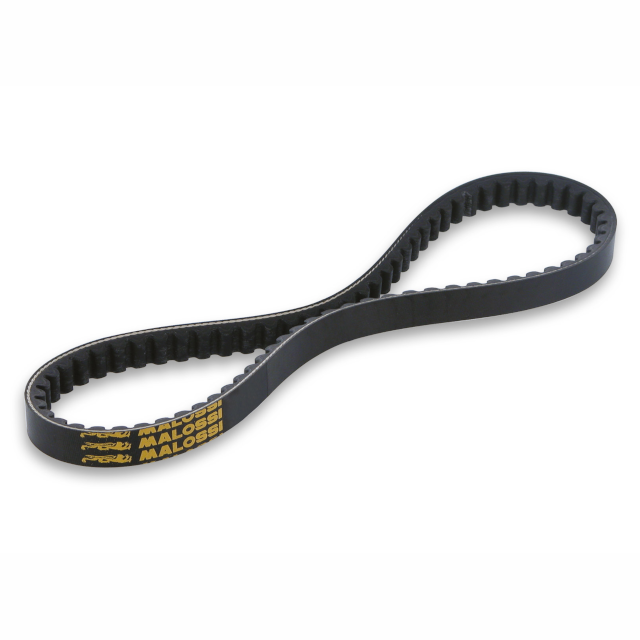

Yamaha X-City / X-Max 125cc >2006 X-Kevlar Malossi Drive Belt

Belt from the manufacturer Malossi X-Kevlar for the Yamaha X-Max 125cc / X-City Inject. 125cc / MBK Skycruiser 125cc models

Malossi presents its belt in the X-Kevlar version, which is the most reinforced of all in its range.

The belt is made from the best materials, which is why they are so durable.
The 5 materials that make up the X-Kevlar belt are positioned from the 1st (outer part) to the 5th (inner part).
Materials

1. POLYAMIDE fabric
2. RUBBERIZED fabric in CHLOROPRENE
3. CHLOROPRENE bearing
4. Kevlar insert
5. Body blend CHLOROPRENE reinforced

As it is a belt designed for competition, it has different measurements from those of an original type belt.
It is longer and thinner to achieve maximum performance.

Measurements

• Width: 22mm
• Length: 918mm
• Thickness: 9.3mm
• Angle: 28º

Valid for:

MBK

• MBK CITYLINER 125 ie 4T LC euro 3
• MBK SKYCRUISER 125 ie 4T LC euro 3

YAMAHA

• YAMAHA X CITY 125 ie 4T LC euro 3 (E3A5E)
• YAMAHA X MAX 125 ie 4T LC euro 3 <-2008
• YAMAHA X MAX 125 ie 4T LC euro 3 2014->2016 (E3M1E)
• YAMAHA X MAX 125 ie 4T LC euro 4 2017-> (E3V9E)
• YAMAHA X MAX 125 ie 4T LC euro 4 2018->2020 (E31LE)
• YAMAHA X MAX 125 ie 4T LC euro 3 2009->2013

Assembly instructions
