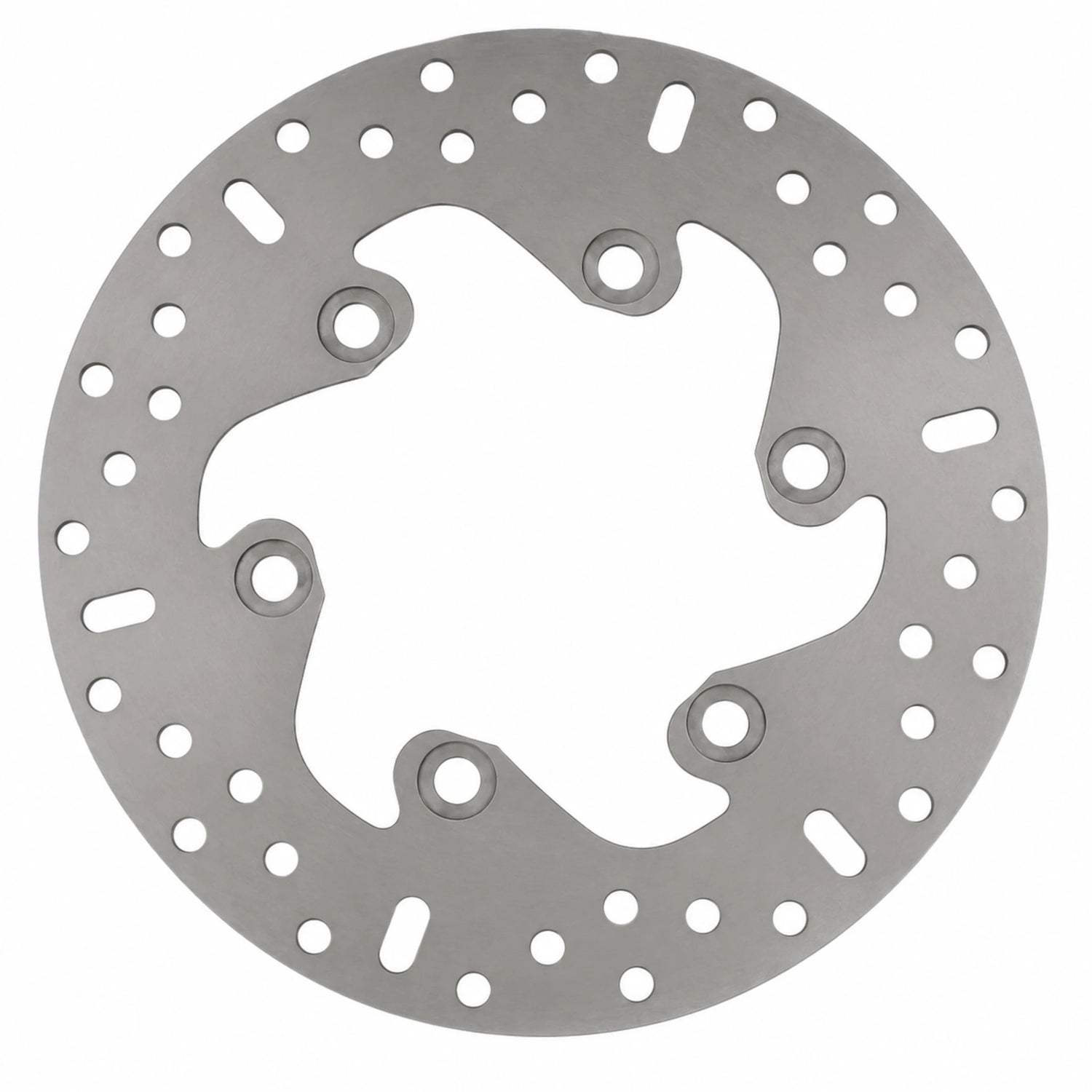

Rear Brake disc KTM Duke 125/200/390 EBC

Rear Brake disc from manufacturer EBC for KTM Duke 125, 200 and 390, as well as for Husqvarna Svartpilen, Vitpilen and KTM Adventure, RC 125, RC 200 and RC 390 models.

The original rear brake disc loses thickness with use, warps due to heat, or develops warping under hard braking. The symptoms are clear: vibration in the lever, irregular braking, metallic noises, and loss of effectiveness in the rain.

This EBC disc is made from low-carbon HPSR rolled steel, with a coefficient of friction 18% higher than the cast steel used in OEM discs. The entire surface is protected with a 3-micron zinc coating that erodes only in the pad contact area, forming a light oxide layer that extends durability. It is much more corrosion-resistant than conventional cast steel.

EBC recommends pairing it with EBC organic brake pads for daily use, or with Double-H sintered pads if you ride more sportily. Independent design, ready to replace the original without additional adjustments.

Technical specifications

• Type: rigid rear brake disc
• Manufacturer: EBC
• Outer diameter: 230 mm
• Inner diameter: 104.2 mm
• Bolt circle diameter: 124 mm
• Number of holes: 6
• Hole diameter: 10.5 mm
• Thickness: 4 mm
• Offset: 0 mm
• Version: rigid
• Material: low-carbon HPSR rolled steel
• Protection: galvanized with a 3-micron zinc coating
• Drilling: optimized bird-wing pattern
• Recommended pads: EBC organic or Double-H sintered

Compatible models

HUSQVARNA

• Svartpilen 125 ABS 2021-2023
• Svartpilen 401 2018-2023
• Vitpilen 401 2018-2023

KTM

• Adventure 390 ABS 2020-2025
• Adventure 390 SW ABS 2023-2025
• Duke 125 2011-2012
• Duke 125 ABS 2013-2018
• Duke 125 ABS 2021-2023
• Duke 125 Euro4 2019-2020
• Duke 200 2012
• Duke 200 2018-2019
• Duke 200 ABS 2013-2017
• Duke 200 ABS 2020-2024
• Duke 390 ABS 2013-2023
• RC 125 ABS 2014-2020
• RC 125 ABS Euro4 2021
• RC 200 2018-2021
• RC 200 ABS 2014-2017
• RC 390 ABS 2014-2021
• RC 390 R ABS 2018-2019
