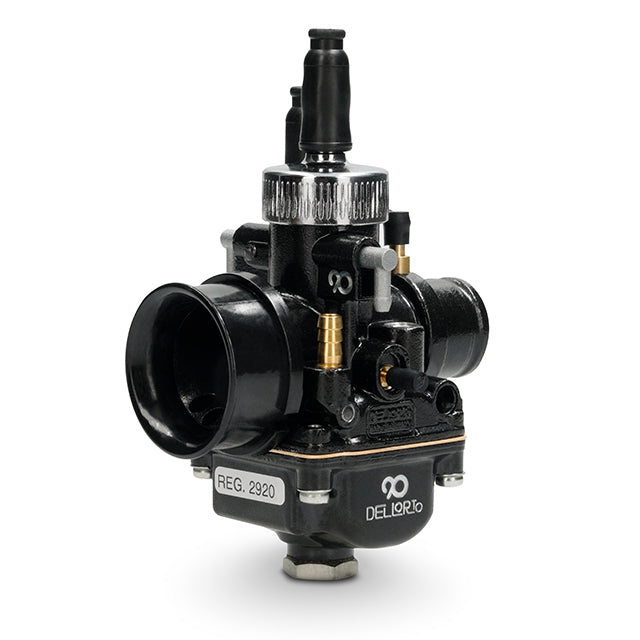

Carburettor 19 PHBG RS 90 Anniversary Dellorto with cable starter

Carburettor 19 PHBG RS 90 Anniversary Dellorto with cable starter

The PHBG Racing range has been carefully designed by the manufacturer Dellorto.

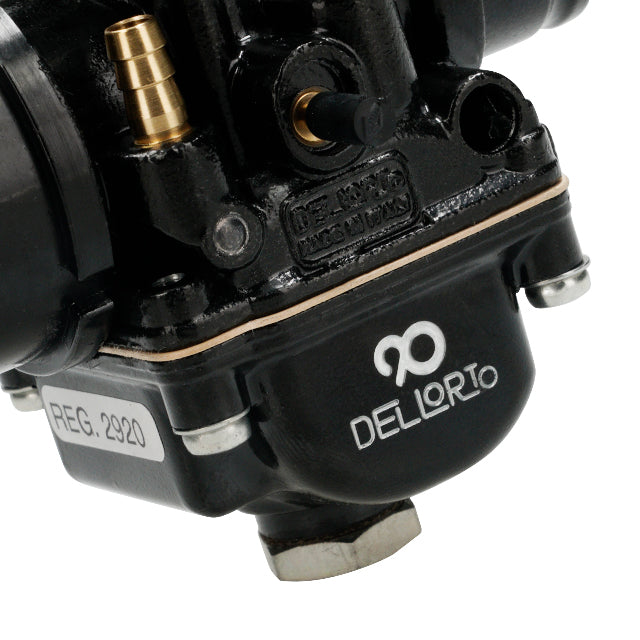

It features a round slide designed to increase gas flow. The bowl is made of aluminium and has a central screw to facilitate changing the main jet.

We recommend using the original filter box, as it reduces intake noise and greatly facilitates carburettor adjustment.

Compared to a “standard” PHBG, the 90th edition carburettor features a 15% increase in airflow, faster supply thanks to a new venturi shape, a new Teflon anti-friction treatment on the butterfly valve, and a chromed Avional mixing chamber cover.

Features:

• Type of carburettor: Dellorto PHBG
• Working method: 2 strokes
• ØVenturi (mm): 19
• Ø connection width (mm): 25
• Connection type: plug connection (elastic)
• Air filter connection: 38 mm, M32 x 1.25
• Main jet: 75
• Minimum jet: 45
• Starter jet: 60
• Jet needle: W 09
• Mixing tube/atomiser: AN 262
• Float: 4.0 g
• Throttle slide: 30
• 2T mixer connection: available
• Negative pressure connection: available
• Inductance: Possibility to add direct drive, cable traction.
• Adjustment screws: left
• Accelerator pump: no
