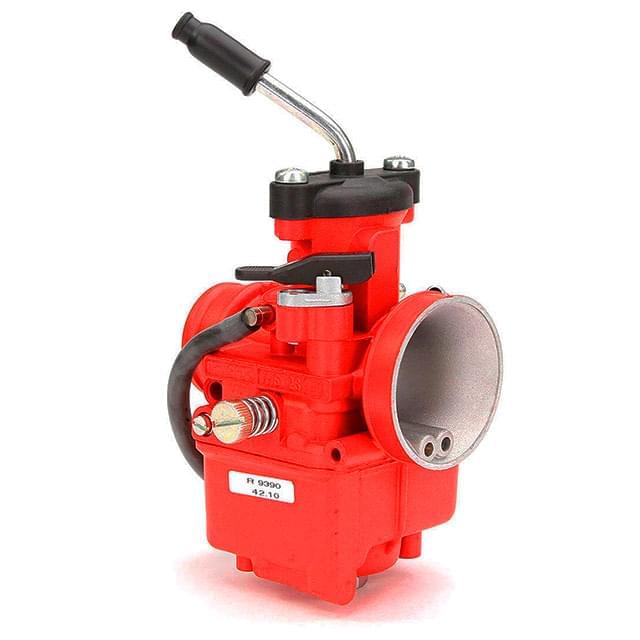

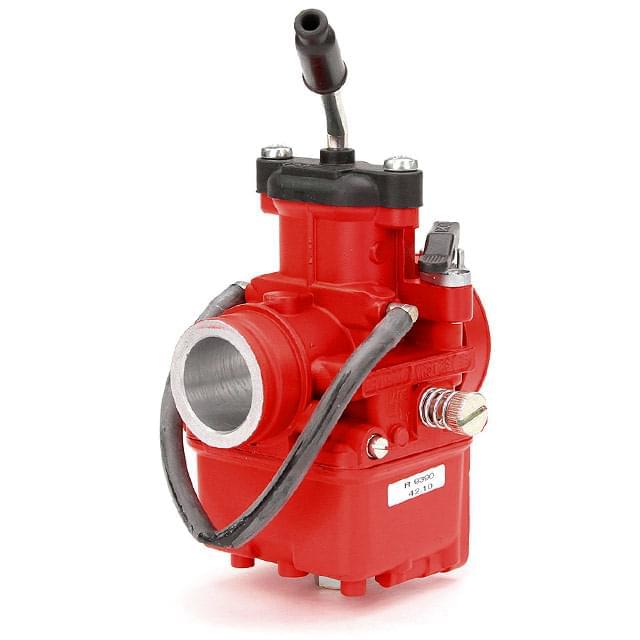

Dellorto VHST Racing 26 Carburettor - lever starter

The VHST Red Racing range has been carefully designed by the manufacturer Dellorto.
It features a semi-flat gate designed to improve and increase the flow of gases. The bowl is made of aluminium and has a central screw to facilitate changing the main jet.

Its large body allows this carburettor to be installed in tuned scooters, mopeds, and engine sizes from 125cc upwards.

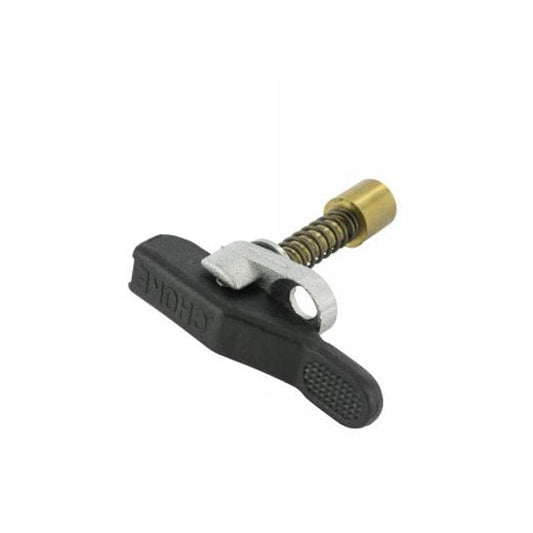

Attention!!! No oil connection available, nor vacuum port. Starter with lever.

Dimensions:
Outer diameter connection with intake: 36mm
Outer diameter connection with air filter: 49mm

Original carburettor setting:
Main jet: 132 (6mm)
Low jet: 36

pilot jet:80
Gate needle: D56
Gate: 45

automiser:AQ269
