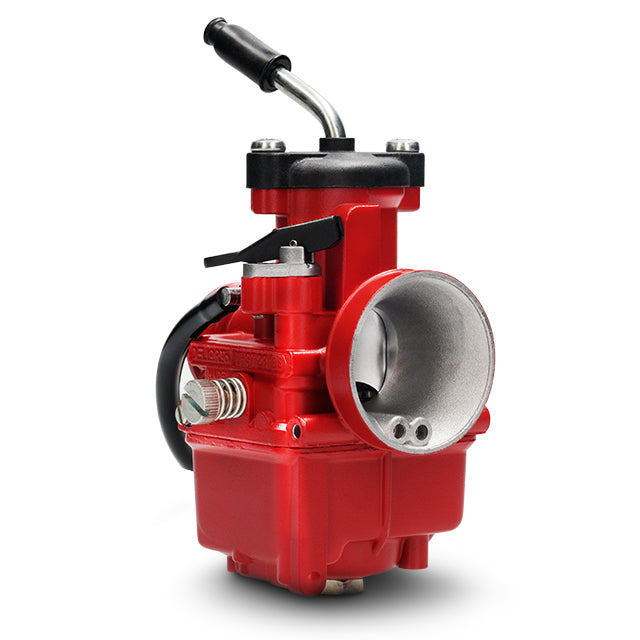

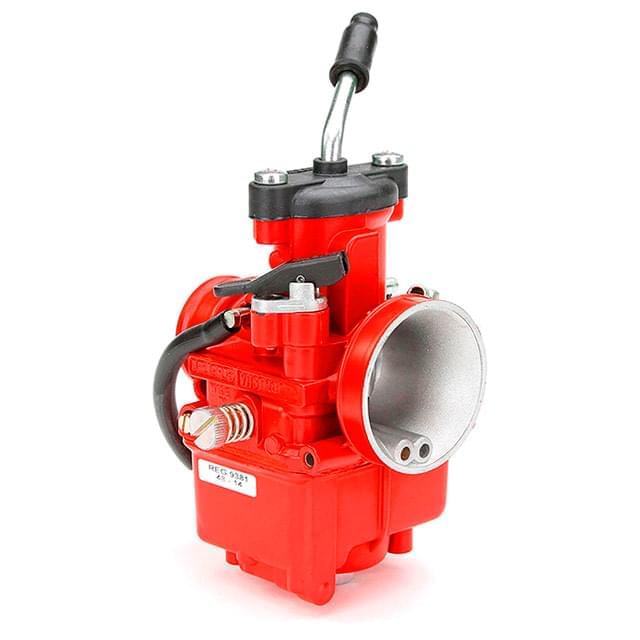

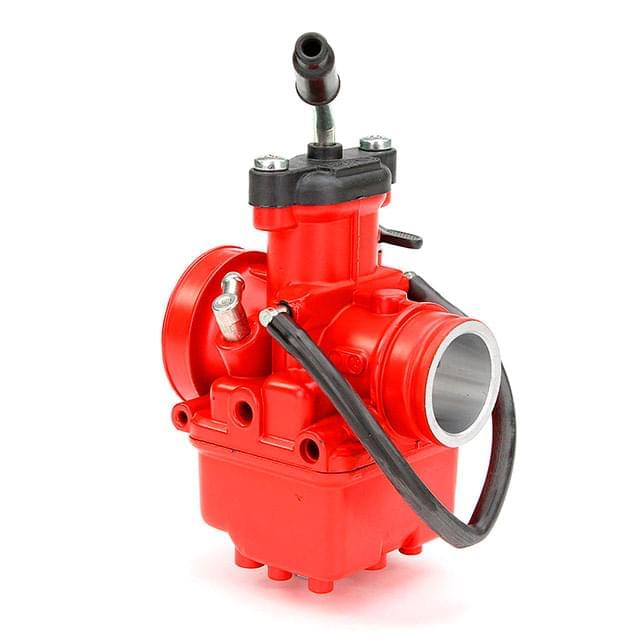

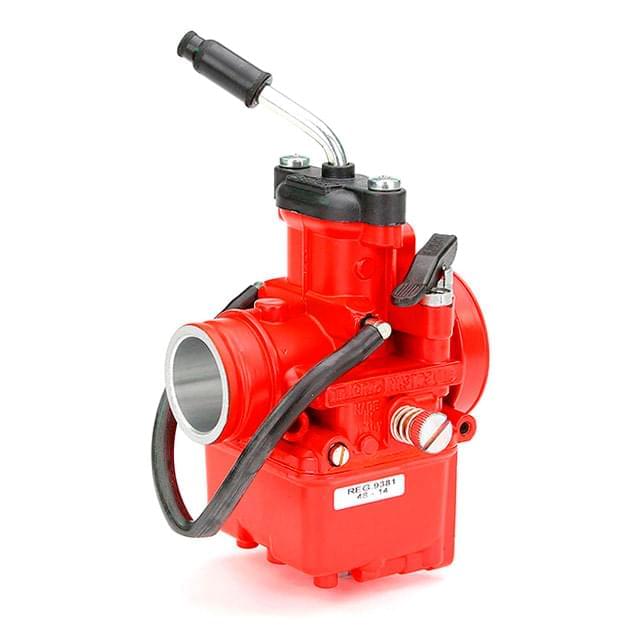

Dellorto VHST Racing 28 Carburettor - lever starter

The VHST Red Racing range has been carefully designed by the manufacturer Dellorto.
It features a semi-flat slide designed to improve and increase the flow of gases. The bowl is made of aluminium and has a central screw to make changing the main jet easier.

Its large body allows this carburettor to be installed on prepared scooters, mopeds, and engines from 125cc upwards.

Attention!!! No oil connection, nor vacuum port. Lever-operated choke. 2-Stroke

Measurements:
Øouter connection with manifold: 36mm
Øouter connection with air filter: 49mm

Original carburettor settings:
Main jet: 142 (6mm)
Idle jet: n/a
Slide needle: D41
Slide: 55
