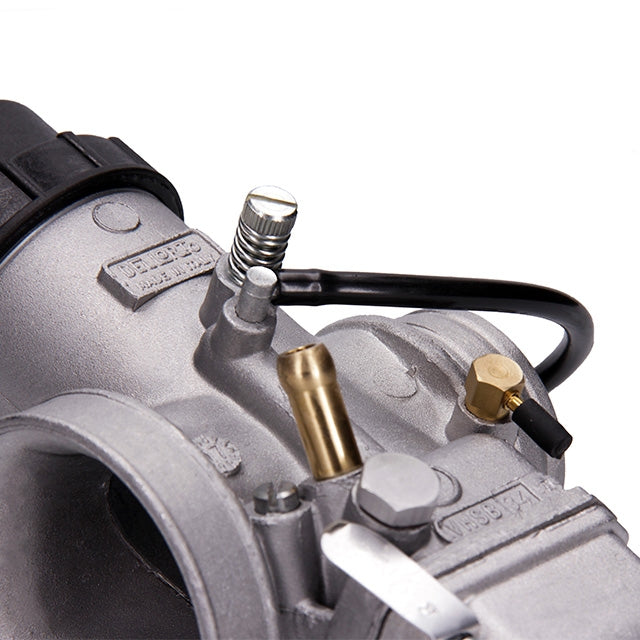

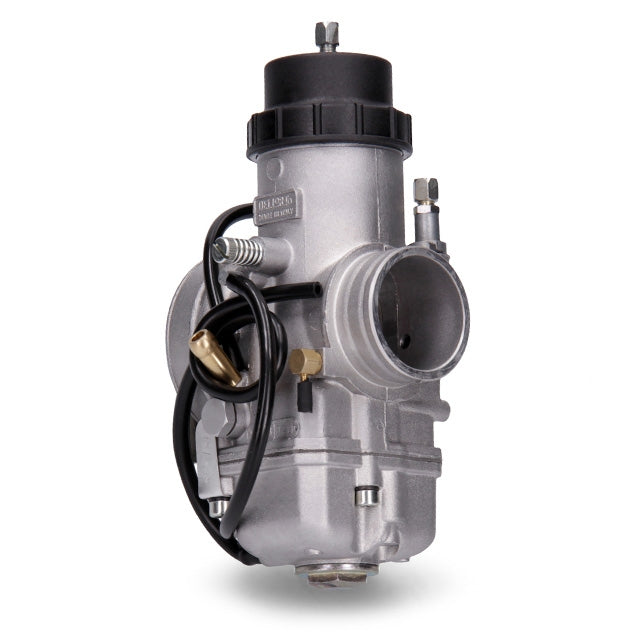

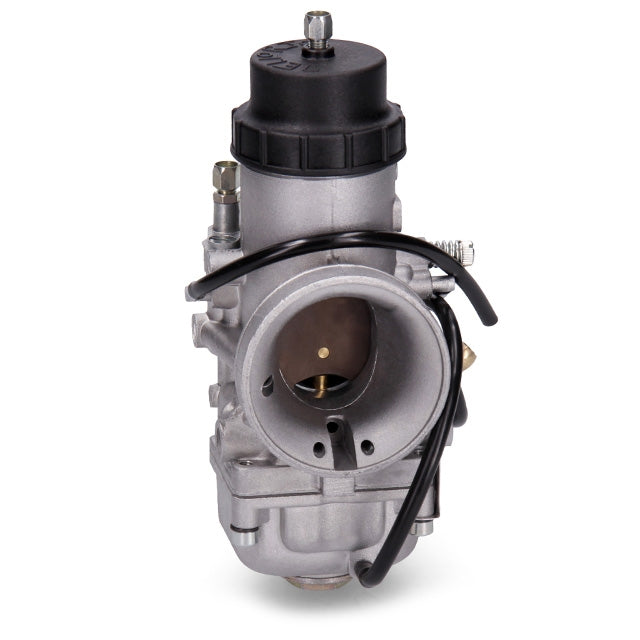

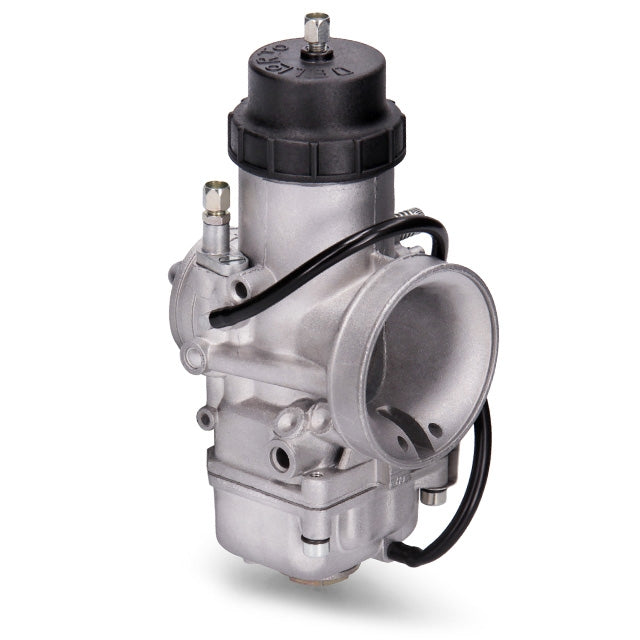

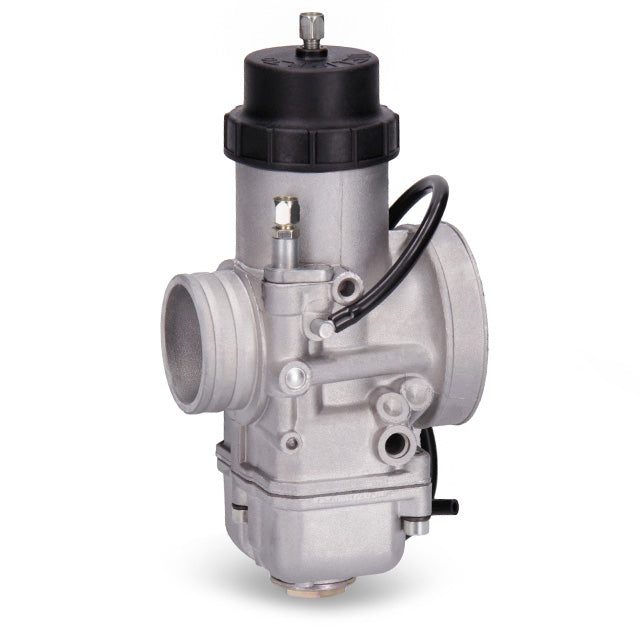

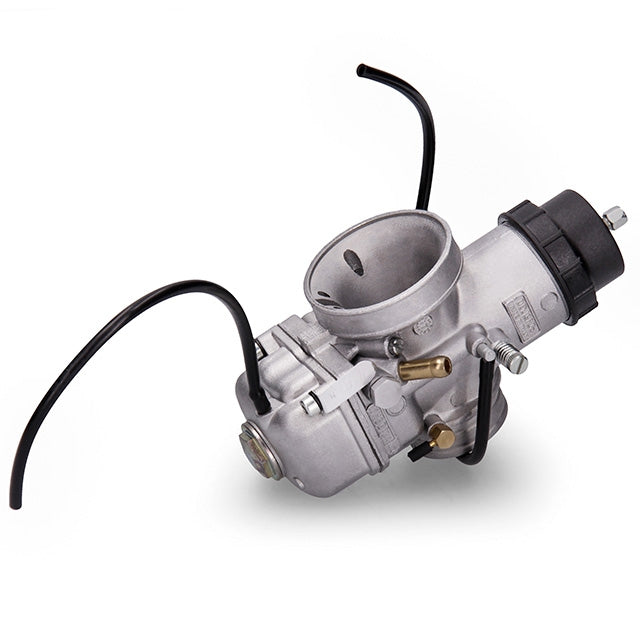

Dellorto Carburettor VHSB LD 34

Carburettor Dellorto VHSB 34 LD 2T special for Aprilia RS 125.

Comes with the specific setting that greatly facilitates carburetion, in most cases only requiring adjustment of the main jet according to the engine setup.

This carburettor is adaptable to engines similar to the rotax 122/123 2-stroke, with displacement between 125cc and 300cc. Installation and adaptation are 100% the responsibility of the customer.

Original carburettor setting:

• Throttle slide: 40
• Needle: K57
• Atomizer: 266 DP
• Jet main: 160
• Idle jet: 40
• Starter jet: 60
• Float needle: 300

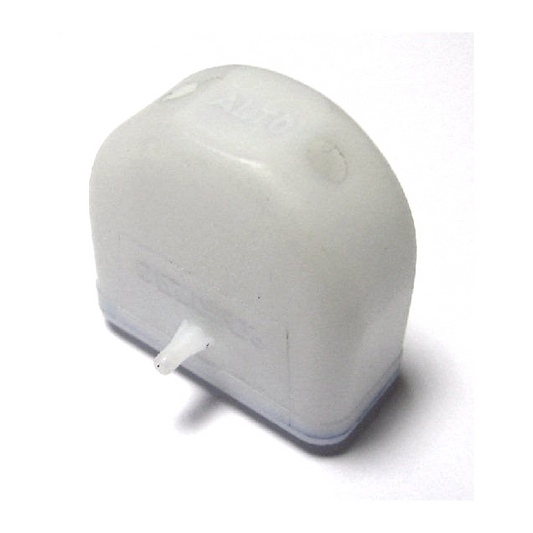

• Float: 9 grams 12630.1

Features:

• Outer diameter connection with intake manifold: 45mm
• Outer diameter connection with air filter: 64mm
• Flat slide
• Grease intake for oil pump
