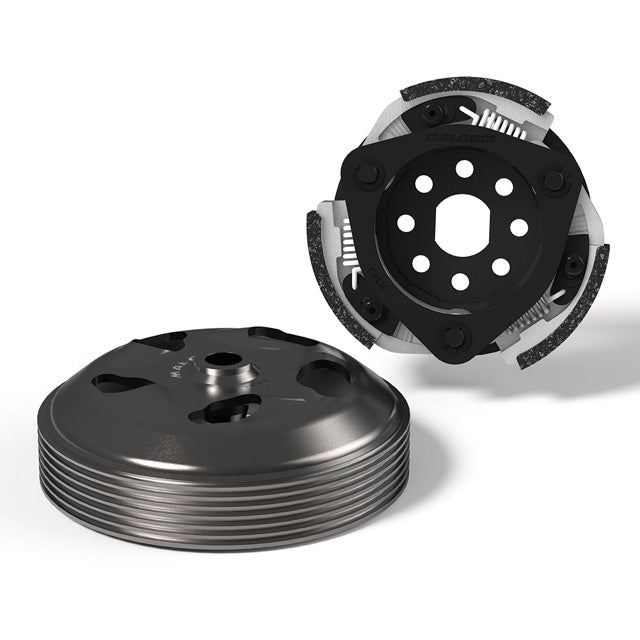

Clutch and bell Malossi Maxi Delta System Piaggio scooter 125/150cc 4-Stroke d=134mm

Clutch and bell Maxi Delta System for Piaggio / Vespa 125-150 from the manufacturer Malossi.

The system consists of:

• Adjustable patented clutch (Delta Clutch).
• Reinforced bell (Wing Clutch Bell) with dynamically balanced cooling fins, designed for everyday and sports use.

The Delta Clutch is a clutch born in the scooter racing environment and has become the reference tool for vehicle tuning.

The simplicity of the system allows you to quickly adjust the tension of the spring opposing the centrifugal force and to replace the spring itself with others with a different K.

The Wing Clutch Bell has the following technical characteristics:

• Bell in DC04 mild steel, obtained by cold forming.
• Central pin in carbon steel extracted from bar and added by Tig welding.
• Soft nitriding thermo-chemical treatment.
• Reinforcement ring in alloyed carbon steel obtained by chip removal with burnished surface treatment, press-fitted.
• 100% dynamically balanced.

Compatible models:

PIAGGIO:

• NEW FLY 3V 125 ie 4T euro 3 2012->2015 (M793M)

• LIBERTY 3V 150 ie 4T euro 3 (M738M)

• MEDLEY 125 ie 4T LC euro 4 2016->2019 (MA01M)

• MEDLEY 125 ie 4T LC euro 5 2021-> (MD01M)

• MEDLEY 150 ie 4T LC euro 4 2016->2019

• MEDLEY 150 ie 4T LC euro 4 2020

• MEDLEY S 125 ie 4T LC euro 5 2021-> (MD01M)

• MEDLEY S 150 ie 4T LC euro 4 2020

VESPA:

• 946 3V ABS 125 ie 4T 2013-> (M801M)

• GTS Super 125 ie 4T LC euro 4 2017->2020

• GTS Super 125 ie 4T LC euro 5 2021->

• GTS Super 150 ie 4T LC euro 4 2017->2020

• GTS 125 ie 4T LC euro 4 2017->2020

• GTS 125 ie 4T LC euro 5 2021->

• GTS 150 ie 4T LC euro 4 2017->2020

• LX 3V 125 ie 4T euro 3 2012-> (M687M)

• LX 3V 150 ie 4T euro 3 2012-> (M688M)

• PRIMAVERA 3V 150 ie 4T euro 3 2014-> (M812M)

• Primavera iGet 150 ie 4T euro 4 2016->2020

• S 3V 125 ie 4T euro 3 2012->

Sprint 3V 150 ie 4T euro 3 2014->

• Sprint iGet 150 ie 4T euro 4 2016->

*Product reserved exclusively for competitions according to the competent sports authorities. Malossi declines all responsibility for improper use.
