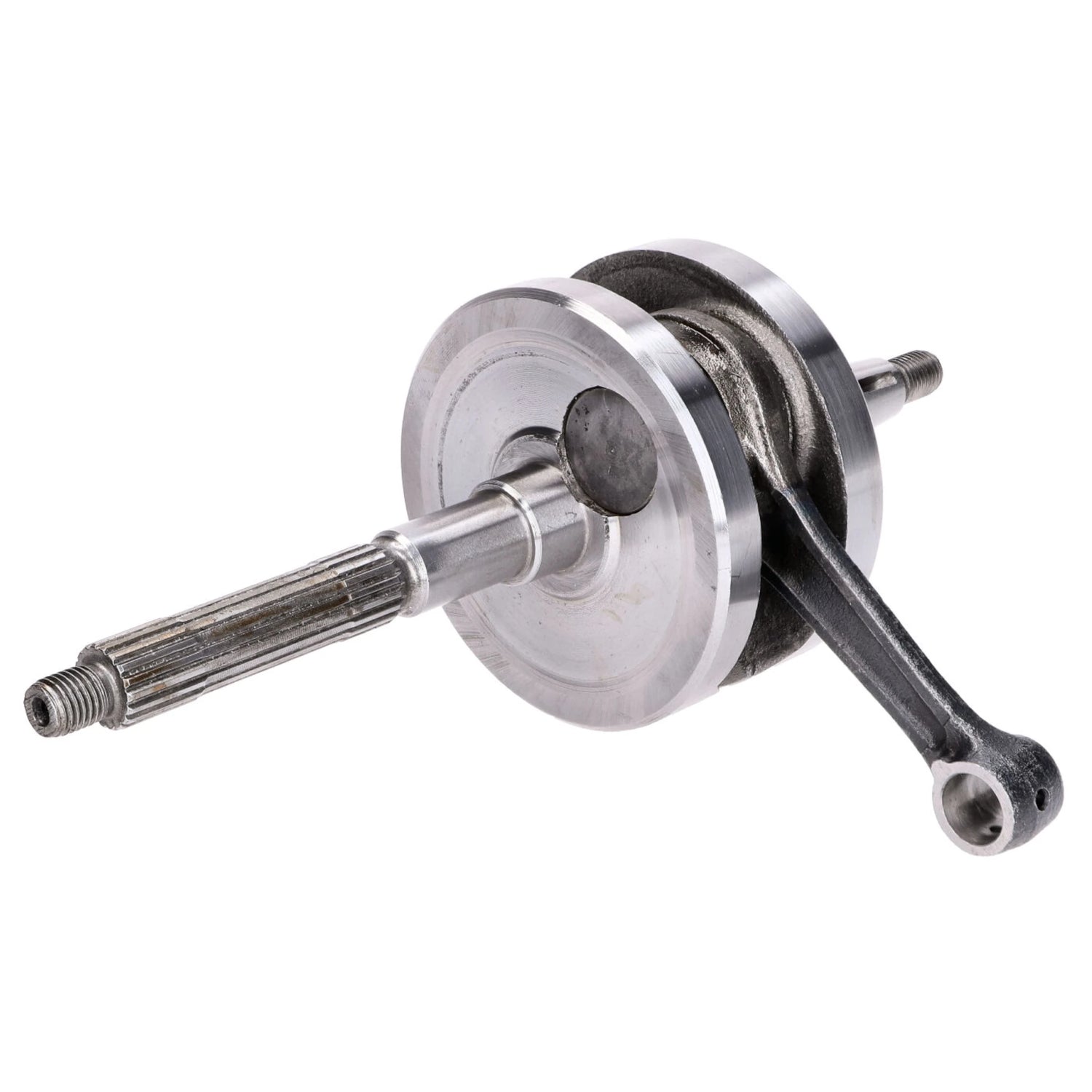

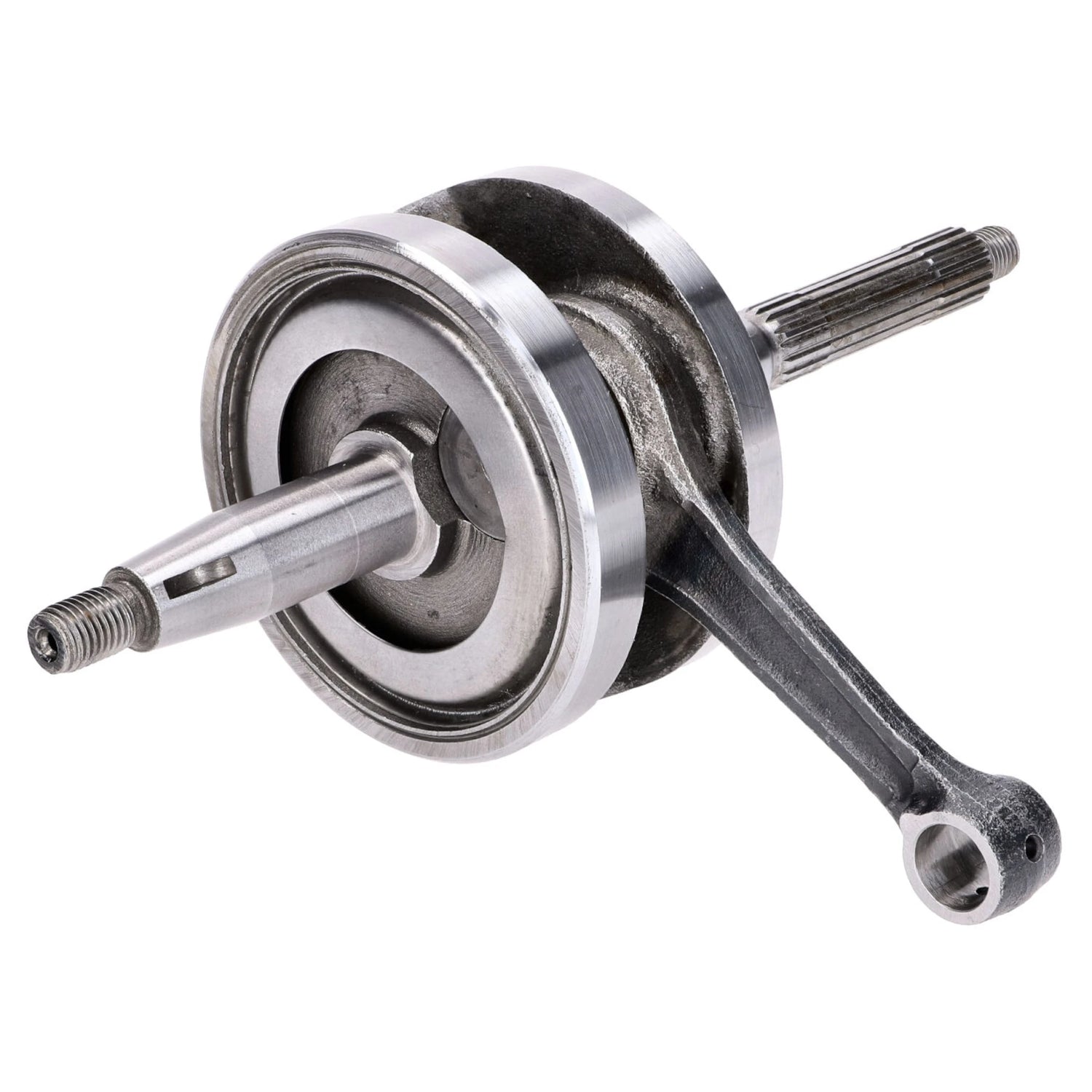

Crankshaft Piaggio Liberty / Fly / Zip 50cc 4-Stroke Naraku

Crankshaft Naraku for Piaggio Liberty, Fly and Zip 50cc 4-Stroke.

This crankshaft Naraku is an OEM-type replacement part for Piaggio 50cc 4-Stroke engines. It is the correct choice when the crankshaft shows wear, play, misalignment or internal noise.

The design is OEM-type, allowing for direct installation without modifications. On the transmission side, in the variator area, it uses a bearing with an inner diameter of 20 mm.

Technical specifications

• Product: crankshaft.
• Manufacturer: Naraku.
• Base engine: Piaggio 50cc 4-Stroke.
• Type: original, no tuning.
• Installation: direct, without modifications.
• Inner diameter of transmission-side bearing: 20 mm.
• OEM reference: 969428.

Compatible models

Aprilia

• SR MOTARD 50 4-Stroke 4V (Carburettor) >2013
• SCARABEO 50 4-Stroke 2V <2006
• SCARABEO 50 4-Stroke 2V 2006-2009
• SCARABEO 50 4-Stroke 4V >2009
• SCARABEO 50 4-Stroke 4V 2010-2012
• SCARABEO 50 4-Stroke 4V 2014-2017
• SCARABEO 50 4-Stroke 4V NET 2009
• SCARABEO 50 4-Stroke 4V NET >2010
• SPORT CITY ONE 50 4-Stroke 2V 2008-2010
• SPORT CITY ONE 50 4-Stroke 4V >2011

Derbi

• ATLANTIS 50 4-Stroke 2V 2004-2006
• ATLANTIS 50 4-Stroke 2V >2007
• BOULEVARD 50 4-Stroke 2V 2009 (25 km/h)

Italjet

• JET SET 50 4-Stroke 2V (Piaggio engine)
• TORPEDO 50 4-Stroke 2V (Piaggio engine)

Malaguti

• CENTRO 50 4-Stroke 4V (Piaggio engine)
• CIAK MASTER 50 4-Stroke 4V (Piaggio engine)

Piaggio

• FLY 50 4-Stroke 2V <2005
• FLY 50 4-Stroke 2V 2006-2007
• FLY 50 4-Stroke 2V 2007-2009 (NAFTA)
• FLY 50 4-Stroke 2V 2008-2011 (25 km/h)
• FLY 50 4-Stroke 2V 2012-2017 (25 km/h)
• FLY 50 4-Stroke 2V 2013-2015
• FLY 50 4-Stroke 4V 2011 (NAFTA)
• FLY 50 4-Stroke 4V 2012-2013
• FLY 50 4-Stroke 4V 2013-2017 (NAFTA)
• LIBERTY 50 4-Stroke 2V <2005
• LIBERTY 50 4-Stroke 2V 2005-2008
• LIBERTY 50 4-Stroke 2V 2009-2016 MOC
• LIBERTY 50 4-Stroke 2V 2012 (Double / 2-seat)
• LIBERTY 50 4-Stroke 2V 2012-2014 (Single / 1-seat)
• LIBERTY 50 4-Stroke 2V 2015 (Nexive)
• LIBERTY 50 4-Stroke 2V DELIVERY >2006
• LIBERTY 50 4-Stroke 2V DELIVERY 2009 (TNT)
• LIBERTY 50 4-Stroke 2V DELIVERY 2010-2017
• LIBERTY 50 4-Stroke 2V POST 2006-2017 BENELUX
• LIBERTY 50 4-Stroke 2V POST 2009-2017
• LIBERTY 50 4-Stroke 2V POST GERMANY 2007-2017
• LIBERTY 50 4-Stroke 2V RST <2005
• LIBERTY 50 4-Stroke 2V RST DELIVERY <2005
• LIBERTY 50 4-Stroke 2V RST POST FRANCE
• LIBERTY 50 4-Stroke 2V RST POST SPAIN
• LIBERTY 50 4-Stroke 2V SPORT 2006
• LIBERTY 50 4-Stroke 2V SPORT 2007-2008
• LIBERTY 50 4-Stroke iGET 3V 2015-2017
• LIBERTY 50 4-Stroke iGET 3V 2016-2017 (25 km/h)
• LIBERTY 50 4-Stroke iGET 3V 2017-2019 E4
• LIBERTY 50 4-Stroke iGET 3V 2017-2019 E4 (25 km/h)
• LIBERTY 50 4-Stroke iGET 3V 2017-2022 (NAFTA)
• LIBERTY 50 4-Stroke iGET 3V 2018-2020 E4 CORPORATE
• TPH 50 4-Stroke 4V (Typhoon) 2012-2022
• ZIP 50 4-Stroke 2V <2005
• ZIP 50 4-Stroke 2V 2006-2013
• ZIP 50 4-Stroke 2V 2006-2017 (25 km/h)
• ZIP 50 ie 4-Stroke 3V 2018-2020 E4
• ZIP 50 ie 4-Stroke 3V 2018-2020 E4 (25 km/h)

Vespa

• ET4 50
• LX 50 4-Stroke 2V <2004
• LX 50 4-Stroke 2V <2005
• LX 50 4-Stroke 2V 2005 E2
• LX 50 4-Stroke 2V 2006-2007 E2
• LX 50 4-Stroke 2V 2006-2009 E2
• LX 50 4-Stroke 2V 2008 E2
• LX 50 4-Stroke 2V 2009 E2
• LX 50 4-Stroke 2V 2010-2012 E2 (25 km/h)
• LX 50 4-Stroke 4V 2009-2013 E2
• LX 50 4-Stroke 4V 2010-2012 E2
• LX 50 4-Stroke 4V 2011 E2
• LX 50 TOURING 4-Stroke 2V (25 km/h) E2 2011-2012
• LX 50 TOURING 4-Stroke 4V E2 2010-2013
• LXV 50 4-Stroke 2V (25 km/h) 2012-2013
• PRIMAVERA 50 4-Stroke 2V (25 km/h) E2 2014-2017
• PRIMAVERA 50 4-Stroke 4V E2 2013-2017
• PRIMAVERA 50 4-Stroke 4V (25 km/h) E2 2014-2017
• PRIMAVERA 50 4-Stroke 4V E2 2014-2019
• PRIMAVERA 50 ie 4-Stroke 3V (25 km/h) E4 2017-2019
• PRIMAVERA 50 ie 4-Stroke 3V E4 2017-2019
• PRIMAVERA 50 ie 4-Stroke 3V (ASIA) 2018-2019
• PRIMAVERA 50 ie 4-Stroke 3V E4 2019-2020
• S 50 4-Stroke 2V (25 km/h) E2 2010-2012
• S 50 4-Stroke 4V COLLEGE E2 2008-2012
• S 50 4-Stroke 4V COLLEGE E2 2008-2014
• SPRINT 50 4-Stroke 2V (25 km/h) E2 2014-2017
• SPRINT 50 4-Stroke 4V E2 2014-2017
• SPRINT 50 4-Stroke 4V E2 2014-2018
• SPRINT 50 ie 4-Stroke 3V (25 km/h) E4 2017-2020
• SPRINT 50 ie 4-Stroke 3V E4 2017-2020
• SPRINT 50 ie 4-Stroke 3V E4 (NAFTA) 2019-2022
