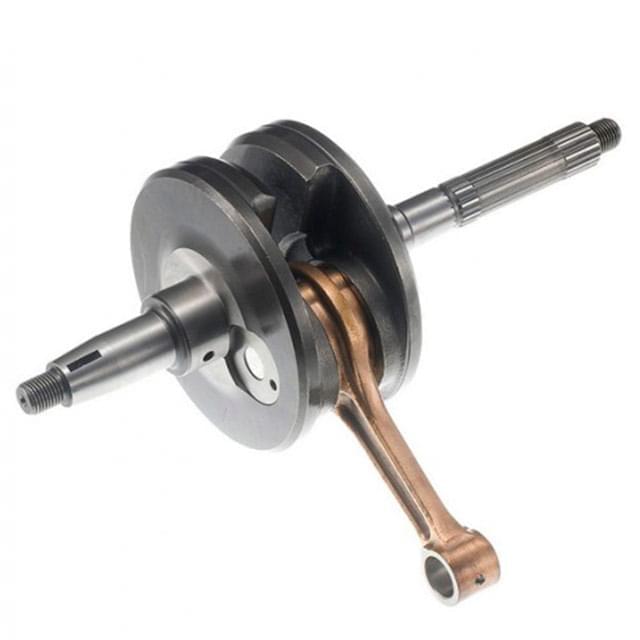

Crankshaft DR Piaggio Liberty FC 1 125cc

Crankshaft for Piaggio 125 Quasar engines FC1, Vespa GTS/GTV.

Attention!:

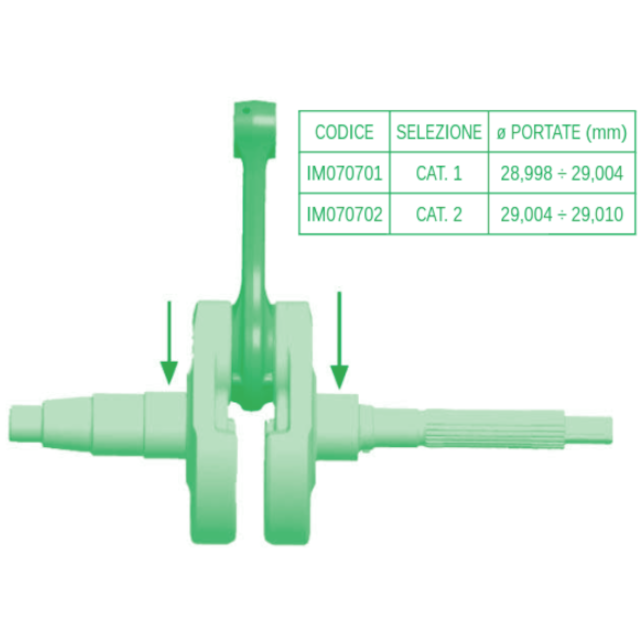

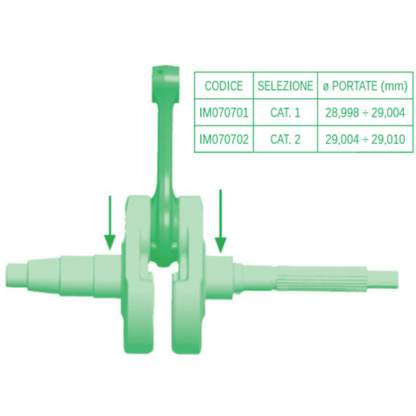

The Piaggio Leader, LEM, Quasar, and Master engines (125cc to 300cc) have two different sizes (identified as FC 1 or FC 2) in the crankshaft neck area (the part that works directly in contact with the crankcase friction bushing). If you need to buy a new crankshaft, pay attention to this detail.

To identify which type of engine you have (and therefore which crankshaft you need), the best thing you can do is look for an inscription on the original crankshaft at the bottom of one of its webs (e.g., 04/14*1). This indicates the production date (04/14) and the series (*1 or *2) as FC 1 or FC 2.

Original Piaggio OEM reference: 8423835001

This crankshaft must be combined with the timing gear (original ref. 82782R) Ø int. 19.5 mm.

Attention! You must carry out balancing checks before installing it in the engine, since manufacturers deny warranty for any balancing defect found after installation.
