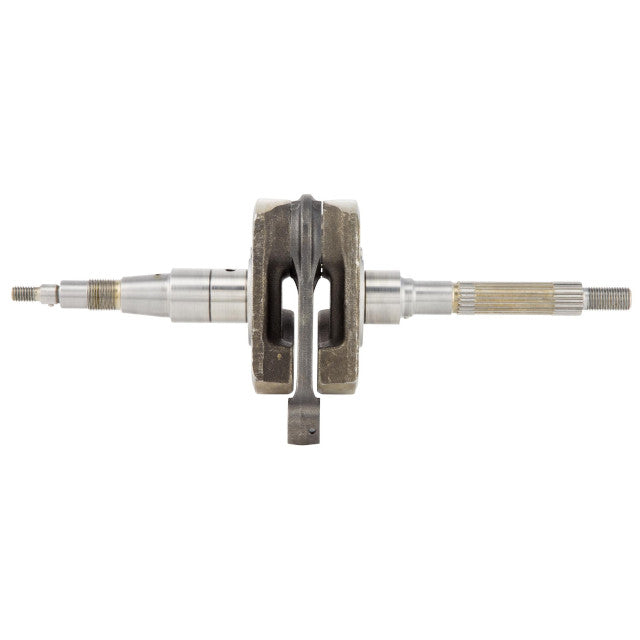

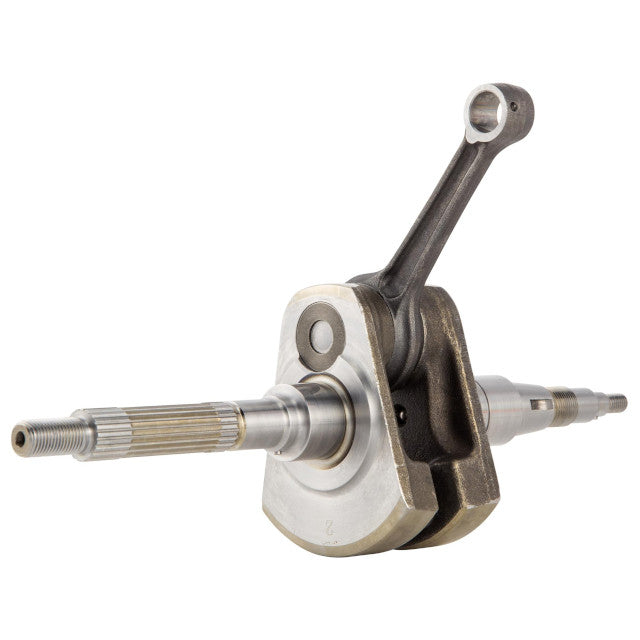

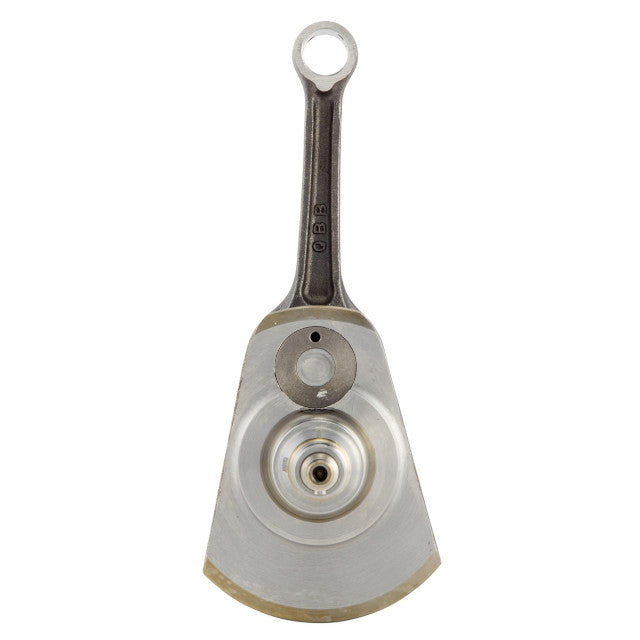

Crankshaft Piaggio Liberty / Vespa LX 125/150 4-Stroke 3V FC2 tolerance

Crankshaft for Piaggio 125 Quasar engines FC2, Vespa GTS/GTV, GT 60 250cc 4T LC Quasar 250cc 4T LC ie.

Attention!:

Piaggio Leader, LEM, Quasar and Master engines (125cc to 300cc) have two different sizes (identified as FC 1 or FC 2) in the crankshaft neck area (the part that works directly in contact with the friction bearing of the crankcase). If you need to buy a new crankshaft, pay attention to this detail.

To identify which type of engine you have (and therefore which crankshaft you need), the best thing you can do is look for an inscription on the original crankshaft at the bottom of one of its blades (e.g.: 04/14*1), which indicates the production date (04/14) and the series (*1 or *2) as FC 1 or FC 2.

Original Piaggio OEM reference: 8412985002

This crankshaft must be combined with the timing gear (original ref. 82782R) Ø int. 19.5 mm.

Attention! You must carry out balancing checks before installing in the engine, since manufacturers deny warranty for any balancing fault found after installation.
