Allpro 70cc Minarelli AM6 kit Cylinder and 21mm Carburettor

Allpro kit for Minarelli AM6 engines consisting of a Cylinder 70cc cast iron and an Carburettor Allpro Black 21 mm. It is a practical solution for repair, replacement, or installation work on the cylinder kit and intake system in compatible setups.

This set brings together two key components for engine operation. The Cylinder is part of the cylinder kit, while the Carburettor is responsible for preparing the air-fuel mixture. As they are supplied in the same kit, it makes for a more complete intervention when both parts need to be renewed within the same mechanical setup.

The cast iron Cylinder is aimed at frequently used setups and offers a suitable base for 70cc builds on compatible Minarelli AM6 engines. For a balanced setup, it can be combined with a compatible exhaust for 50/70cc cylinders, such as Voca models suitable for Minarelli AM6.

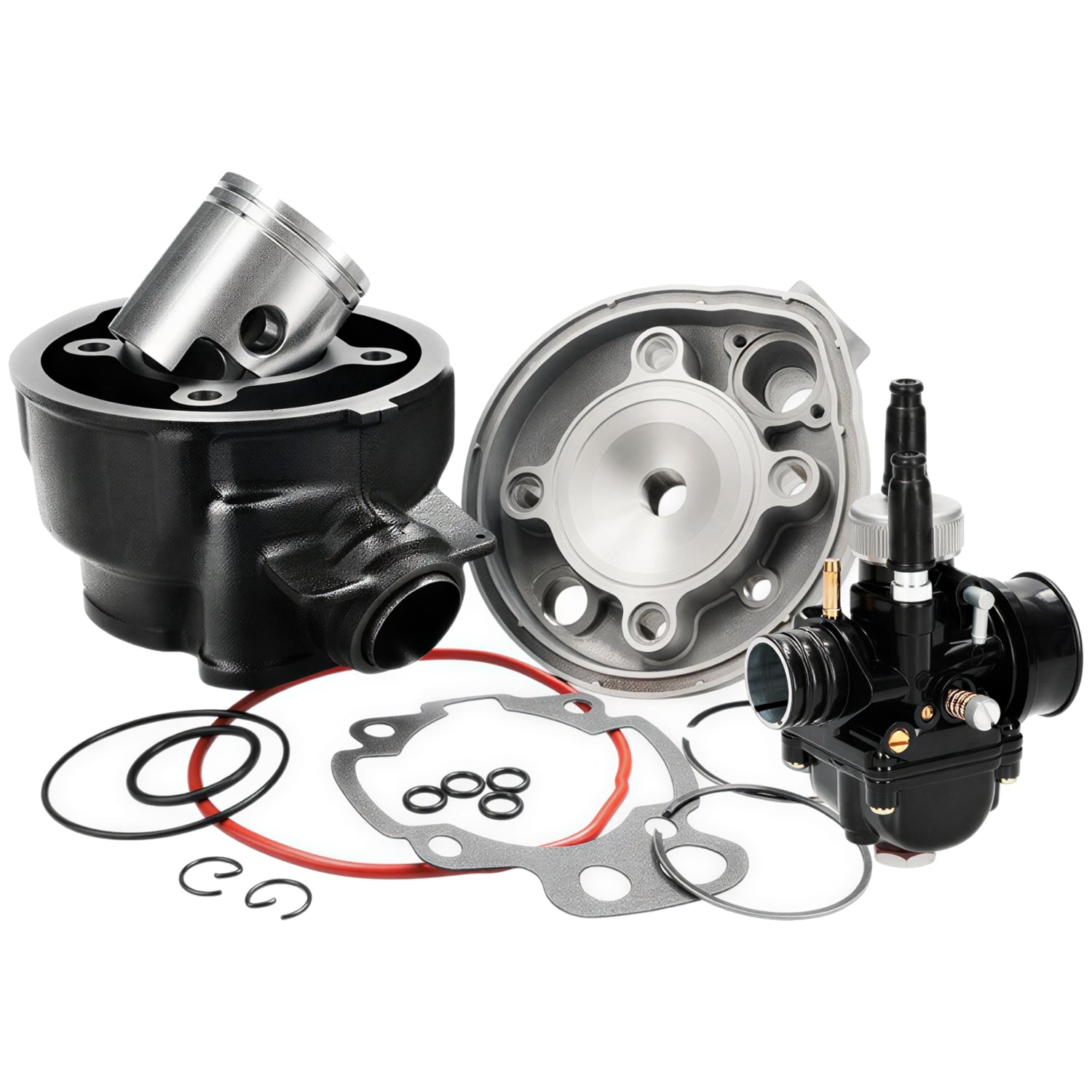

The kit includes

• Cylinder Allpro 70cc cast iron for Minarelli AM6
• Two-Piston rings piston, 47 mm diameter
• Gaskets
• Cylinder head
• Exhaust reducer
• Carburettor Allpro Black 21 mm

The Carburettor Allpro Black 21 mm is designed to make adjustment and maintenance tasks easier. The metal float bowl includes a central screw that allows quick access to the main jet. In addition, the threaded cap makes it easy to remove the slide and access the needle.

It is equipped with a vacuum port, a connection for separate lubrication, and a manual cable choke.

Technical data for the Carburettor

• Diameter: 21 mm
• Connection intake: 25 mm
• Filter intake: 32/27 mm
• Original setting: main jet 90, secondary jet 45, and W16 needle
• Spare parts compatibility: shares spare parts and 5 mm jets with Dell'Orto PHBG-type carburetors

Main features

• Kit consisting of Cylinder Allpro 70cc cast iron for Minarelli AM6 and Carburettor Allpro Black 21 mm.
• Includes components from the cylinder kit and intake system.
• Suitable for repair, replacement, or installation on compatible engines.
• Cylinder with a 47 mm two-Piston rings piston.
• Carburettor with metal float bowl, threaded cap, and manual cable choke.
• Allows the Cylinder and Carburettor to be renewed in the same mechanical intervention.

Product details

• Brand: Allpro
• Cylinder reference: AP15CY71.188
• Carburettor reference: AP30CB21.BLACK
• Product type: Cylinder and Carburettor kit
• Application: compatible Minarelli AM6 engines
• Recommended use: repair, replacement, or mechanical setup

Important

Before purchase or installation, it is necessary to verify exact compatibility with the vehicle. Installing a 70cc Cylinder and a 21 mm Carburettor may require carburetion, intake, exhaust, and transmission adjustments depending on the engine setup.
