Athena Cylinder 70cc Minarelli Horizontal AC 10mm pin flat head

Cylinder Minarelli Horizontal AC 70cc b.10 mm from the manufacturer Athena.

This is a cylinder equipped with a piston with 1 single ring of 10 mm pin, 47.6 mm diameter and modular cylinder head with small head.

Made of aluminium and equipped with a piston with one ring, this cylinder from Athena is the ideal base for a racing-type setup with good performance, reaching between 16 and 19 hp with proper tuning.
It has 5 transfer ports and a trapezoidal exhaust outlet.
Modular cylinder head with small head, for better cooling and more power.

Adaptable to Minarelli Horizontal engines. Yamaha Aerox, Beta Ark, Malagutti f12...

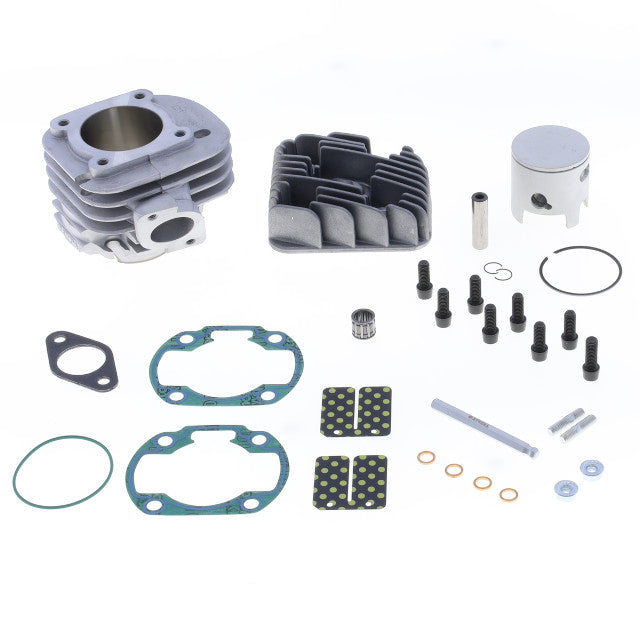

The kit includes:

• Aluminium cylinder.
• Piston with 1 ring.
• Gasket set
• Cylinder head and small head.
• Carbon reeds.

Attention!: To install this cylinder, a reinforced crankshaft is recommended.

Assembly instructions

Suitable for:

Adly

• Thunderbike 50 AC

Aprilia

• Gulliver 50cc AC
• Rally 50cc AC
• Scarabeo 50cc AC (from '98)
• Scarabeo 50cc AC (before '98)
• Sonic 50cc AC
• SR 50cc AC (from 94 to 97) - Minarelli horiz

Benelli

• 491 AC (before 2002) - Minarelli horiz.
• K2 50cc AC (air) - Minarelli horiz.
• Naked 50cc AC (from 2003) - Minarelli engine
• Pepe 50cc AC (before 2003) - Minarelli horiz.

Beta

• ARK 50cc AC (Minarelli Horizontal)
• Chrono 50cc AC - Minarelli horiz.
• Quadra 50cc AC - Minarelli Horizontal
• Tempo 50cc AC

CPI

• Hussar 50cc AC (before 03) - Minarelli horiz.
• Oliver 50cc AC (< 2003 / 10mm pin) - Min.horiz
• Popcorn 50cc AC (< 2003/10mm pin) - Min. horiz

Malaguti

• Centro 50cc AC
• F10 CAT 50cc (from '99)
• F10 Jet Line 50cc AC (before '99)
• F10 Wap 50cc AC (from 2004)
• F12 Phantom 50cc AC (air)
• F12 Phantom 50cc AC (from 2004)
• F15 Firefox 50cc AC (air) from 2004)
• Yesterday 50cc AC

Kreidler

• Florett 50cc AC
• Flory 50cc AC

MBK

• Equalis 50cc AC
• Evolis 50cc AC
• Flipper 50cc AC
• Forte 50cc LC
• Mach G 50cc AC
• MBK»Ovetto 50cc AC
• Sorriso 50cc AC (from '96)

PGO

• Big Max 50cc AC
• Comet 50cc AC
• Galaxy 50cc AC
• Star 50cc AC
• T-REX 50cc AC

Yamaha

• Axis 50 AC (air)
• Breeze 50cc (AC)
• Jog 50cc AC
• Jog R 50cc AC
• Neo's 50cc AC
• Why 50cc AC
• Zest YE 50cc AC
