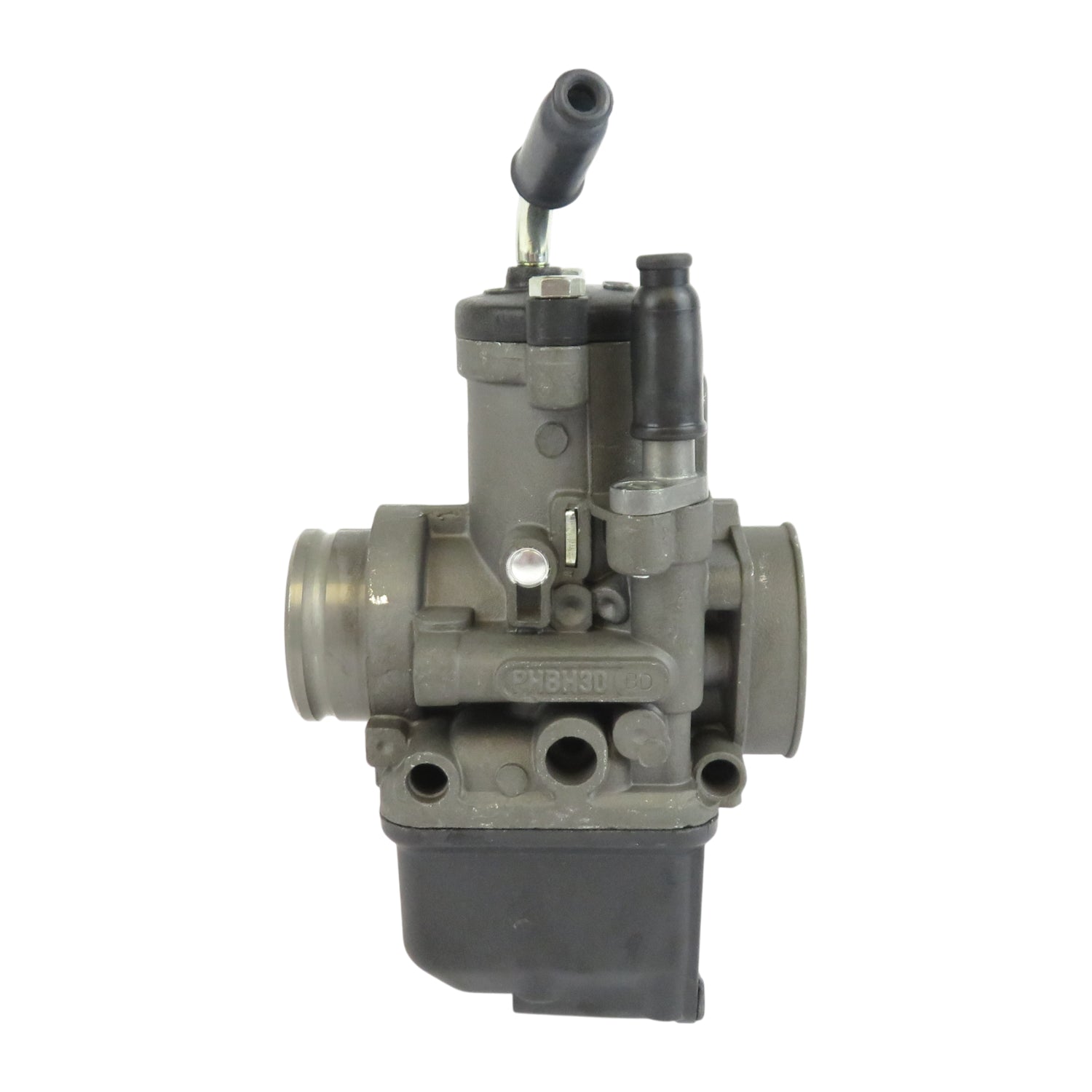

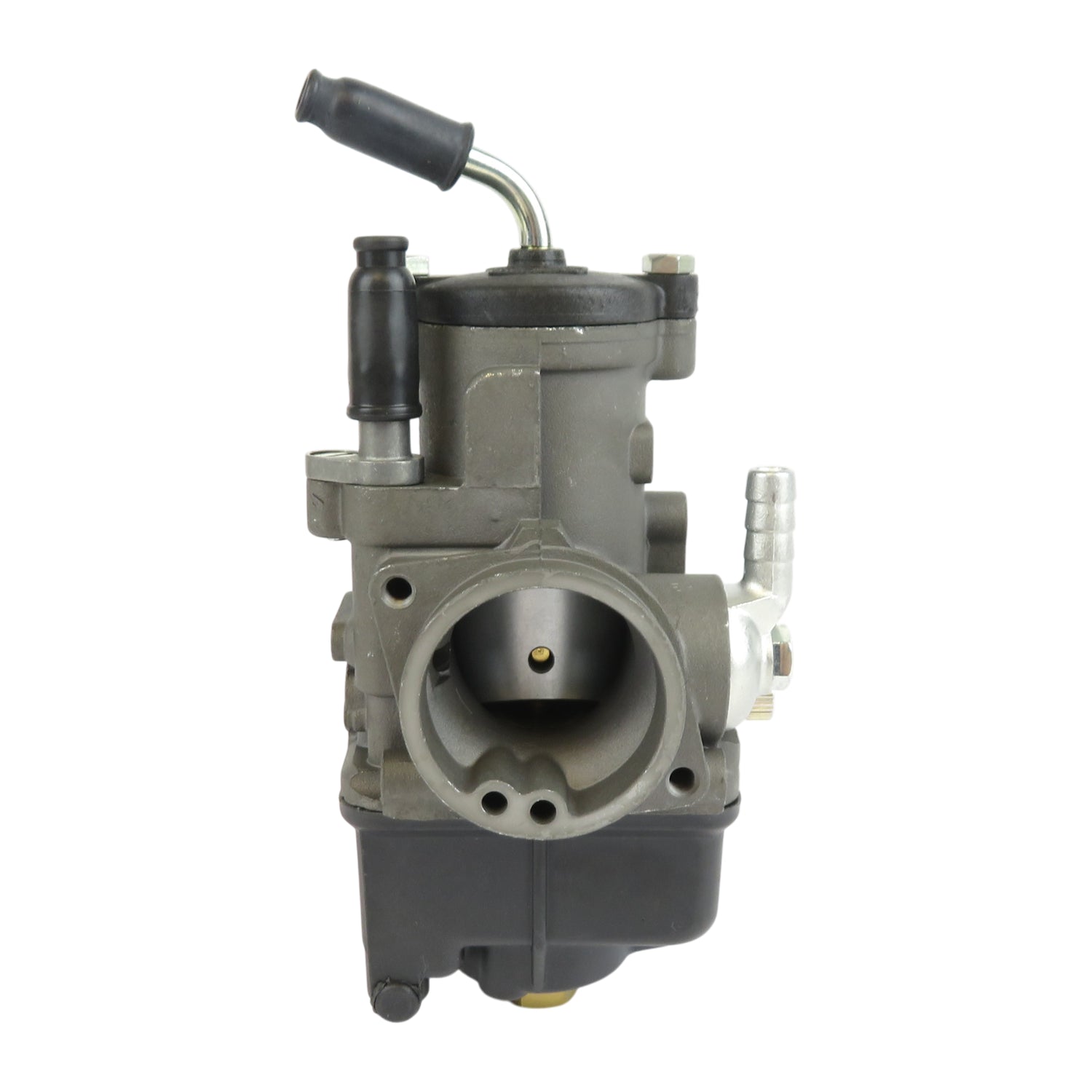

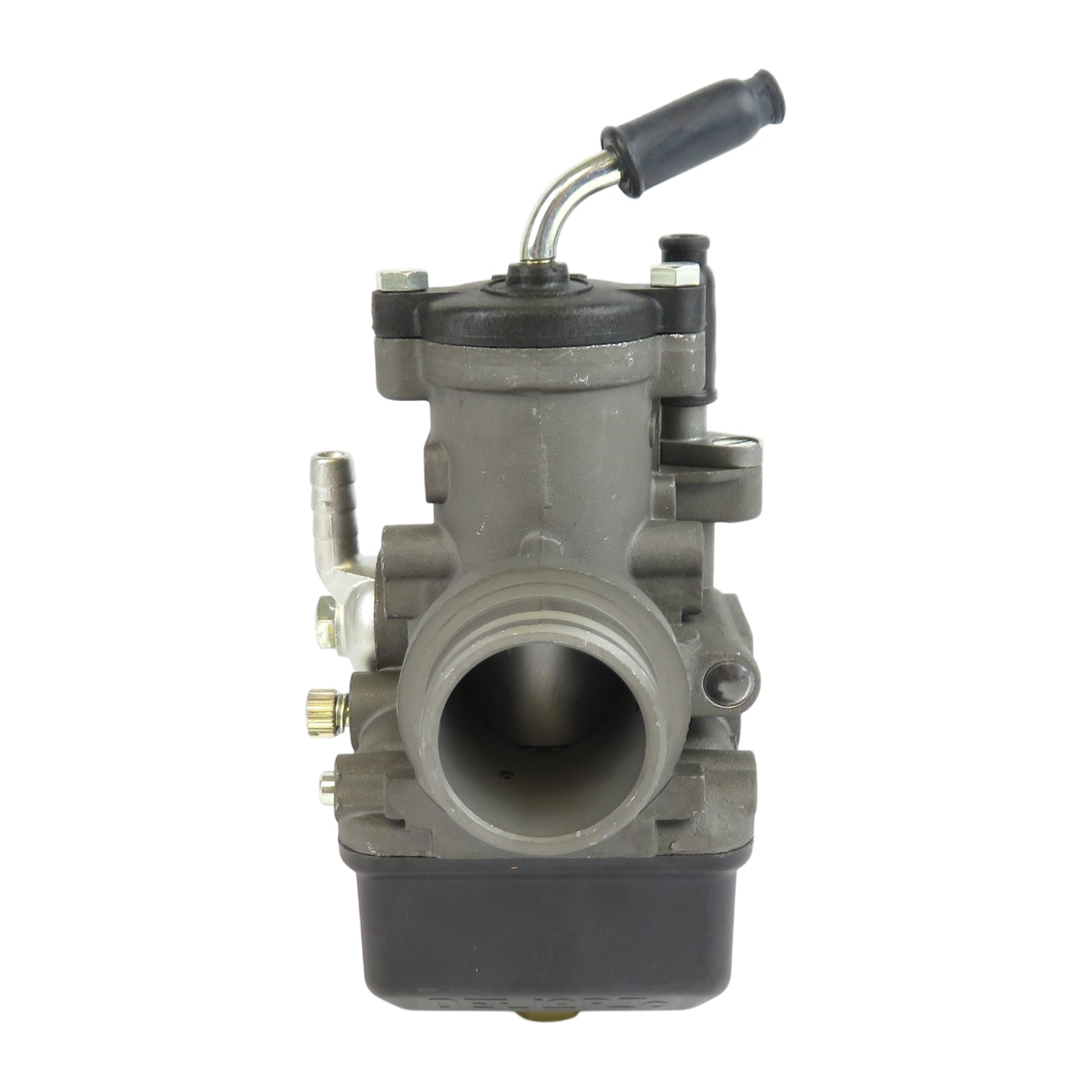

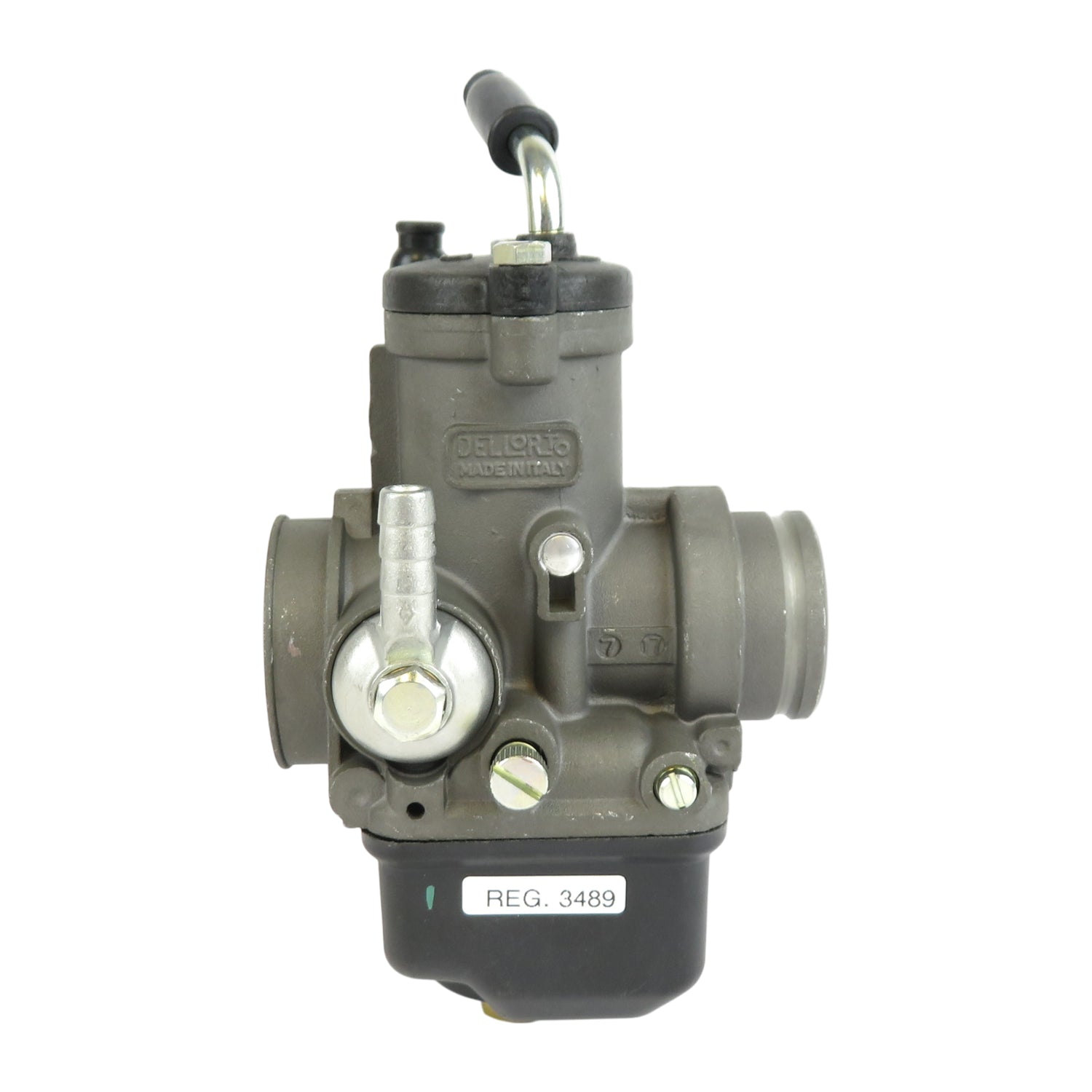

Dellorto PHBH BD 30 Carburettor - starter cable

Carburettor PHBH 30BS Dellorto. Original type carburettor for Moto Guzzi V65 Florida but adaptable to any 2T/4T motorcycle model.

The carburettor does not have a vacuum port and also does not have an oil port, therefore it must be installed on motorcycles that operate with premix and a simple petrol tap /with key. Manual starter with cable. Adjustment screws on the left side.

Measurements:

Øouter connection with intake: 36mm
Øouter connection with air filter: 42mm

Original carburettor settings:

Main jet: 105
Idle jet: 38
Starter jet: 60
Needle: X8
