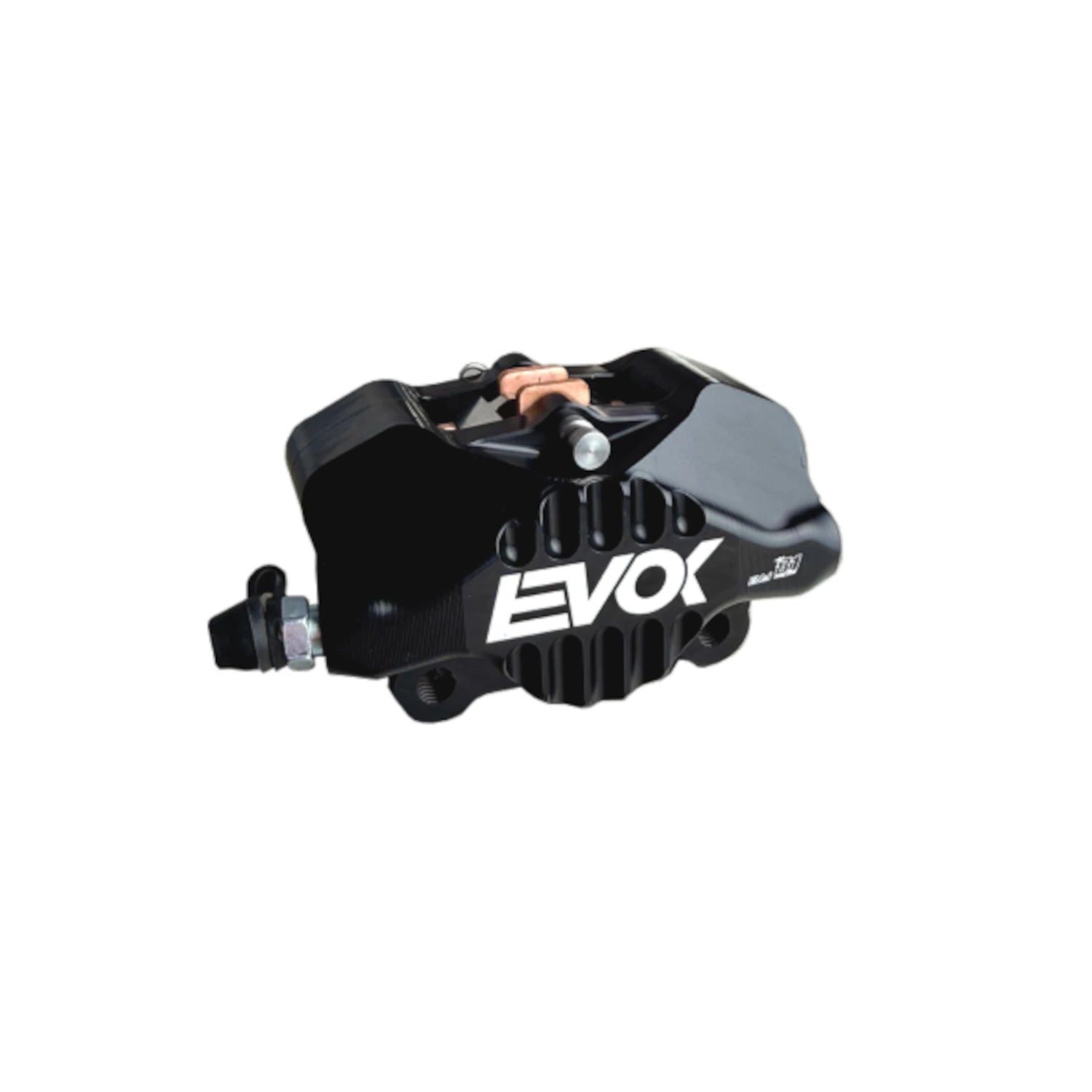

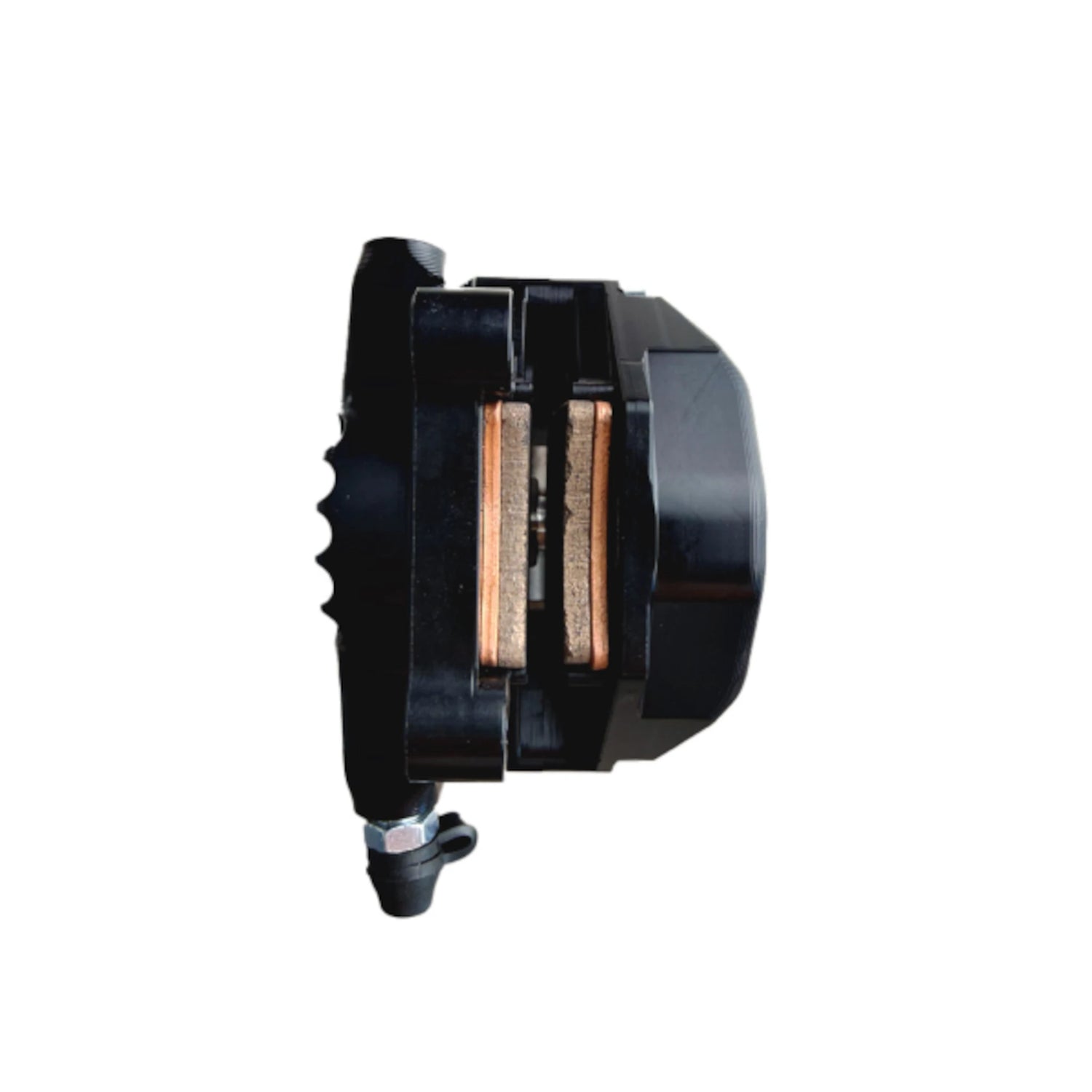

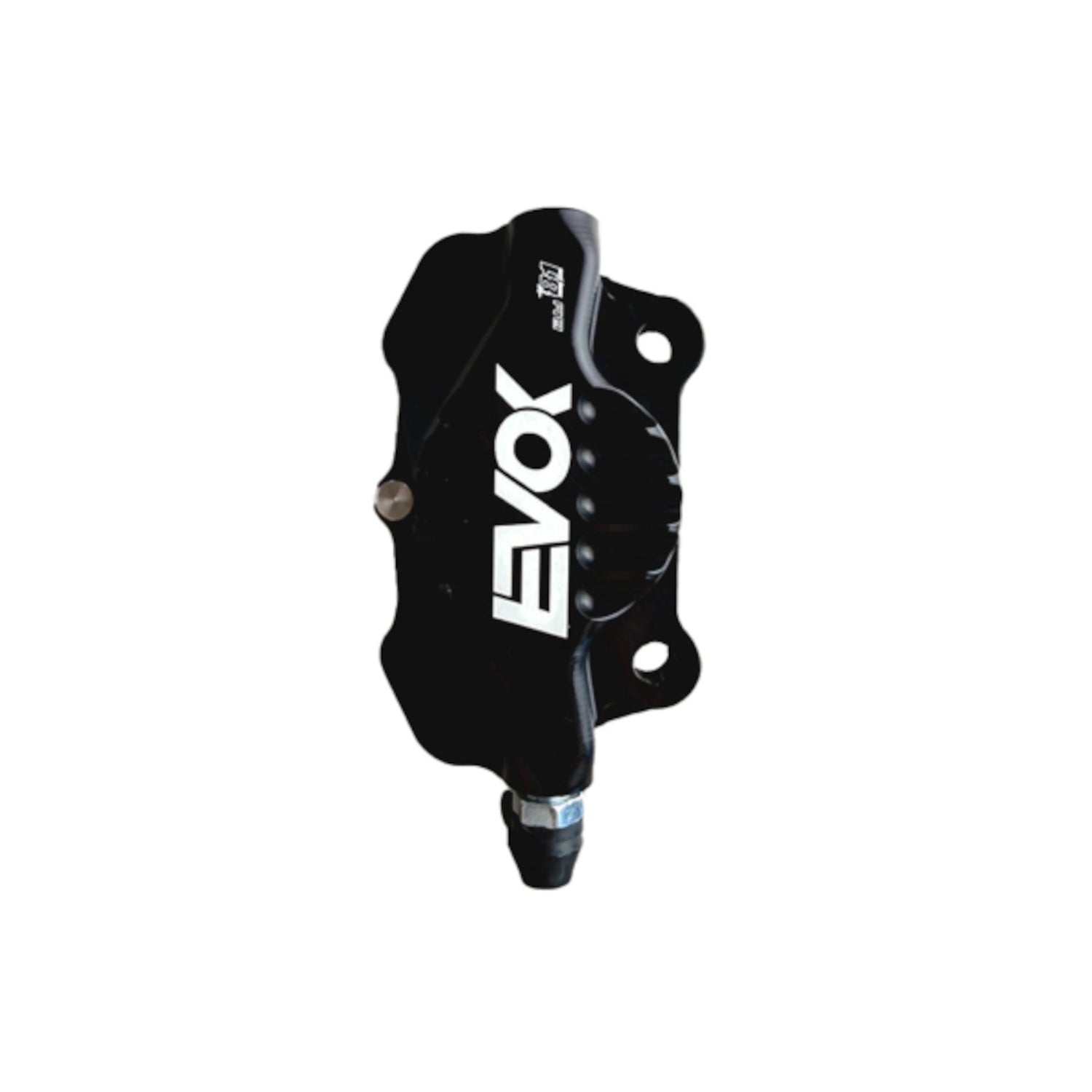

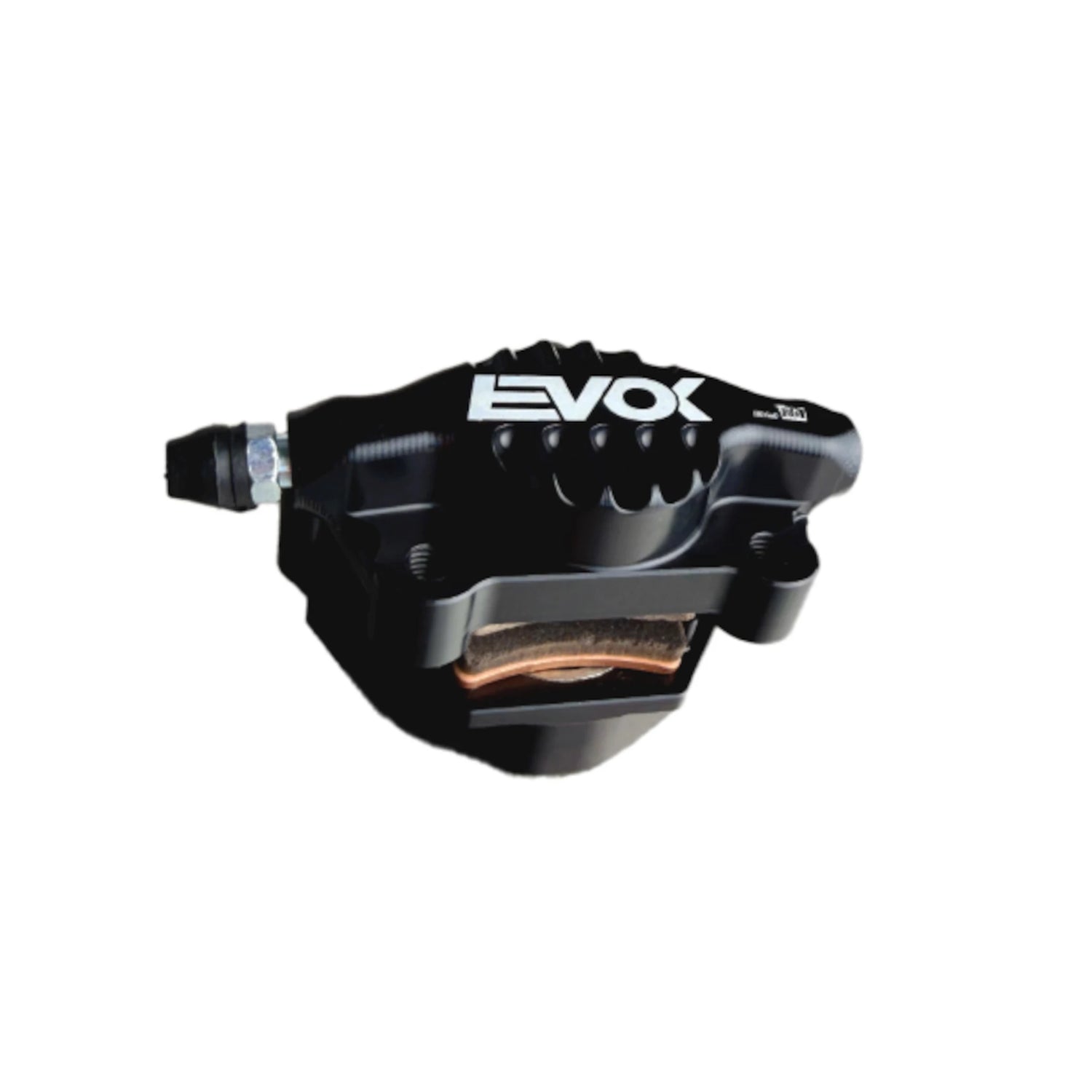

Evok P34 front brake caliper Piaggio ZIP SP 50

Front brake caliper from manufacturer Evok P34 for Piaggio ZIP SP 50.

The Evok P34 front brake caliper is a technical evolution for the original braking system on Piaggio and Vespa scooters. Manufactured using high-strength CNC machined aluminium, this caliper increases the rigidity of the assembly, eliminating flex and ensuring that all the pressure from the lever is transmitted directly to the pads.

With 34 mm pistons, it provides an optimised contact surface that improves bite and braking consistency, maintaining performance even in intensive use and high temperature situations.

Technical specifications

• Colour: Black
• Piston diameter: 34 mm
• Mounting hole spacing: 55 mm
• Banjo thread: M10 x 1 mm
• Material: CNC machined aluminium
• Pads included: Sintered (reference 225100193)

Compatible models

PIAGGIO

• FREE 100 2002-2003
• LIBERTY 125 1998-2002
• LIBERTY 200 2006-2006
• LIBERTY 50 1997-2005
• LIBERTY 2-Stroke 50 2006-2008
• LIBERTY 2-Stroke RST 50 2004-2004
• LIBERTY 2-Stroke SPORT 50 2006-2008
• LIBERTY 4-Stroke 125 2006-2007
• LIBERTY 4-Stroke 50 2000-2008
• LIBERTY 4-Stroke DELIVERY - SINGLE 50 2010-2014
• LIBERTY 4-Stroke DELIVERY TNT 50 2009-2009
• LIBERTY 4-Stroke EURO3 125 2006-2008
• LIBERTY 4-Stroke EURO3 150 2008-2008
• LIBERTY 4-Stroke EURO3 200 2006-2008
• LIBERTY 4-Stroke EURO3 DELIVERY - SINGLE 125 2007-2015
• LIBERTY 4-Stroke EURO3 DELIVERY - TNT - NEXIVE 125 2008-2015
• LIBERTY 4-Stroke PTT (DEU) 50 2007-2012
• LIBERTY 4-Stroke PTT - DOUBLE - NEXIVE 50 2009-2017
• LIBERTY 4-Stroke RST 50 2004-2004
• LIBERTY 4-Stroke SPORT 50 2006-2008
• LIBERTY 4-Stroke SPORT EURO3 125 2006-2008
• LIBERTY 4-Stroke SPORT EURO3 150 2008-2008
• LIBERTY 4-Stroke SPORT EURO3 200 2006-2007
• LIBERTY ELECTRIC PPT AUT 0 2011-2011
• LIBERTY PTT EU2 50 2004-2005
• LIBERTY RST 125 2004-2005
• LIBERTY RST 200 2004-2004
• LIBERTY RST PTT 125 2005-2011
• LIBERTY SPORT 125 2006-2006
• LIBERTY SPORT 200 2006-2006
• SFERA 125 1995-1997
• SFERA RST 50 1995-1997
• VESPA ELETTRICA 0 2018-2019
• VESPA ELECTRIC 25KM-H 0 2019-2019
• VESPA ELECTRIC 25KM-H SCH E5 0 2021-2021
• VESPA ELECTRIC 45 KM-H E5 0 2021-2021
• VESPA ELECTRIC EURO 5 - 70 KM-H (EMEA) 0 2021-2022
• VESPA ELECTRIC EURO 5 - 70 KM-H ITALY 0 2021-2021
• VESPA ELECTRIC MOTORCYCLE 0 2019-2019
• VESPA ELECTRIC MOTORCYCLE 70KM-H 0 2019-2020
• VESPA ET2 50 1997-2005
• VESPA ET2 INJECTION 50 1997-2000
• VESPA ET4 125 1996-2002
• VESPA ET4 50 2000-2005
• VESPA ET4 LEADER ENGINE 125 2003-2005
• VESPA ET4 LEADER ENGINE 150 2003-2006
• VESPA LT 4-Stroke 3V IE 150 2014-2014
• VESPA LX 125 2005-2006
• VESPA LX 150 2005-2006
• VESPA LX 2-Stroke 50 2009-2013
• VESPA LX 2-Stroke TOURING & 30KM 50 2010-2013
• VESPA LX 4-Stroke 50 2005-2009
• VESPA LX 4-Stroke 3V IE - TOURING 125 2012-2013
• VESPA LX 4-Stroke 3V IE - TOURING 150 2012-2013
• VESPA LX 4-Stroke EURO3 TOURING 125 2010-2011
• VESPA LX 4-Stroke FL 125 2009-2009
• VESPA LX 4-Stroke FL 150 2009-2009
• VESPA LX 4-Stroke-4V 50 2009-2013
• VESPA LX 4-Stroke-4V TOURING 50 2010-2013
• VESPA LX EURO 3 125 2006-2008
• VESPA LX EURO 3 150 2006-2008
• VESPA LX EURO 3 IE 125 2009-2011
• VESPA LX EURO 3 IE 150 2009-2011
• VESPA LX TOURING 150 2010-2012
• VESPA LXV 2-Stroke 50 2006-2009
• VESPA LXV 2-Stroke NAVY 50 2008-2008
• VESPA LXV 4-Stroke EURO3 125 2006-2009
• VESPA LXV 4-Stroke NAVY EURO3 125 2007-2008
• VESPA LXV IE 4-Stroke 125 2010-2013
• VESPA PRIMAVERA 4-Stroke 3V 25 KM-H E4 50 2017-2019
• VESPA PRIMAVERA 4-Stroke 3V IE ABS MICKEYMOUSE 50 2023-2023
• VESPA PRIMAVERA 4-Stroke-3V NOABS E4 50 2017-2020
• VESPA PRIMAVERA 50 25 KM-H E5 50 2020-2021
• VESPA PRIMAVERA 50 4-Stroke 3V E5 50 2020-2023
• VESPA S 2-Stroke & COLLEGE 50 2007-2012
• VESPA S 4-Stroke 150 2008-2009
• VESPA S 4-Stroke 3V IE 125 2012-2012
• VESPA S 4-Stroke EURO 3 125 2007-2008
• VESPA S 4-Stroke IE & COLLEGE 125 2009-2011
• VESPA S 4-Stroke IE & COLLEGE 150 2009-2012
• VESPA S 4-Stroke-4V & COLLEGE 50 2008-2012
• VESPA SPRINT 125 ABS E5 JUSTIN BIEBER 125 2022-2024
• VESPA SPRINT 4-Stroke 3V 25 KM-H E4 50 2017-2020
• VESPA SPRINT 4-Stroke 3V E5 50 2020-2024
• VESPA SPRINT 4-Stroke-3V E4 50 2017-2020
• VESPA SPRINT 50 25 KM-H E5 50 2020-2020
• VESPA SPRINT E5 JUSTIN BIEBER (EMEA) 50 2022-2022
• ZIP 125 2000-2002
• ZIP 50 2000-2004
• ZIP 2-Stroke 50 2008-2013
• ZIP 4-Stroke 100 2006-2010
• ZIP 4-Stroke 50 2000-2013
• ZIP 4-Stroke 25KM-H 50 2006-2016
• ZIP 4-Stroke E5 50 2021-2023
• ZIP 4-Stroke NOABS E4 50 2018-2020
• ZIP SP 50 1996-2004
• ZIP SP EURO2 50 2006-2013
