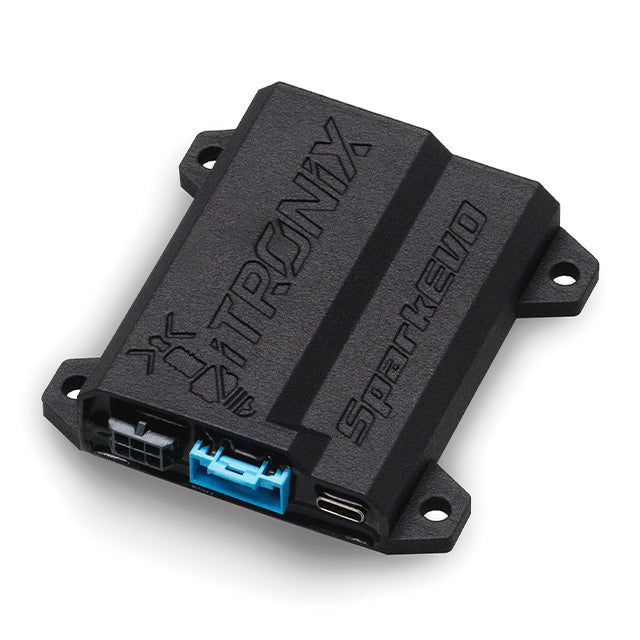

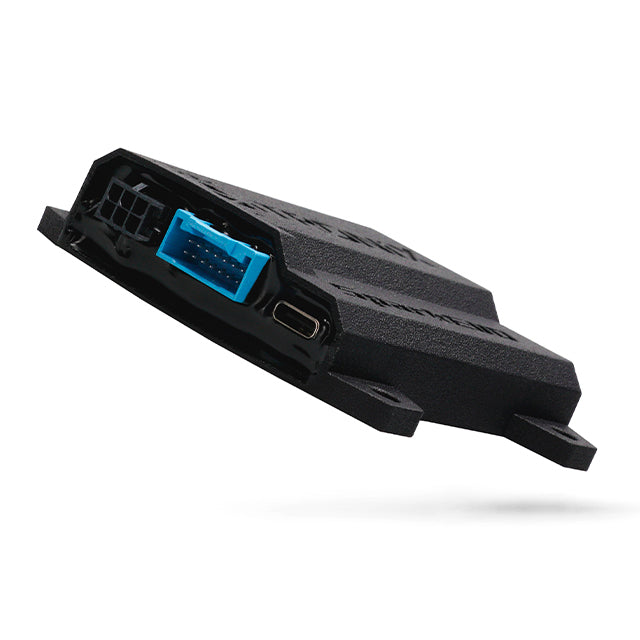

iTronix Sparkevo ignition Control unit ECU

iTronix is the new generation of ECU control units for 2-stroke and 4-stroke engines. It allows you to create ignition maps, configure the RPM limiter, and the quickshift function. Gain full control over injectors, turbos, power valves, and sensors. Configurable from your PC and smartphone.

Specifically designed for 2-stroke and 4-stroke engines, it allows you to control many parameters and features of the engine.

• Works with internal rotor or flywheel.
• Operates without the need for an external battery, even with internal rotor ignition.
• Patented SparkPLUS™ technology to increase performance: spark energy increased by 15% to 20% compared to other ignition control units.
• Up to 6 programmable advance maps: 20 points, adjustment of 0.1 degrees/100 rpm
• RPM limiter for each timing map
• Support for quick map change on the handlebar (switch not included)
• Real-time monitoring and configuration via PC and also smartphone app (with paid upgrade)
• Integrated diagnostics

Additionally, the ECU model gives you full electronic control of your engine with these additional features:

• Advanced control of the injector system, Powerjet, and Power Valve
• Reads many types of sensors:
• Water temperature
• Thermoelectric pair
• Connecting rod knock
• Air pressure
