Intake manifold Derbi / Minarelli AM6 Stage6 High Flow MK2 d=34mm

Intake manifold for Derbi / Minarelli AM6 Stage6 High Flow MK2 d=34mm

The high-flow intake coupling is made of high-quality aluminium, with a flawless finish achieved using the most advanced CNC technology. The intake coupling is made from anodised aluminium and comes with the well-known Stage6 brand logo laser-engraved.

The high-flow intake coupling is ideal for tuning and racing; it has a wedge shape to allow the use of a larger carburettor. Thanks to the inclined angle, the carburettor can be readjusted on the left side of your vehicle and aligned so that there is space for a larger air filter without any issues of it touching anywhere.

This is not the only special feature of this intake manifold; it comes with a cone-shaped adapter ring from 32.5 to 34 mm; by creating a Venturi effect, the gas flow is accelerated and fits perfectly into the reed valve filler.

In terms of performance, the intake coupling has some key advantages: gas flow is improved and the option for better placement of the air filter without obstructions enhances air intake. This results in stable and improved acceleration and, overall, better performance.

For even greater performance, we recommend combining with a 10 mm spacer.

Attention!

The intake coupling is delivered without a rubber adapter for the carburettor; you can choose the appropriate adapter according to the type and size of carburettor:

- 40 mm for PWK carburettor from 30 to 34 mm ref S6-32ET34

Included in the kit

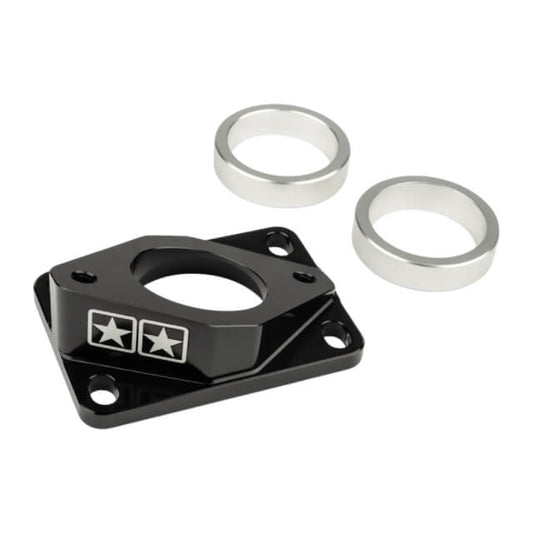

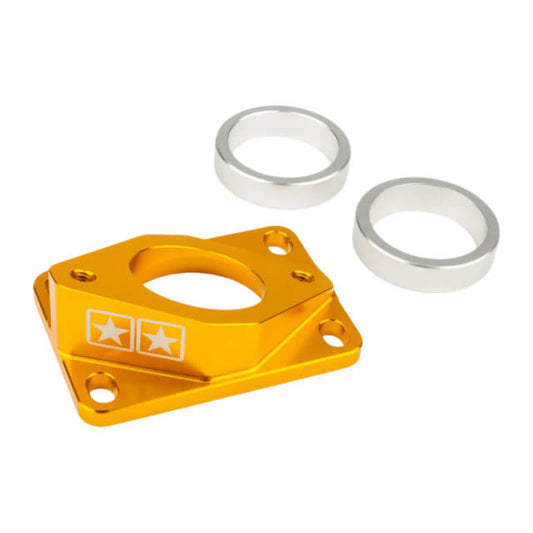

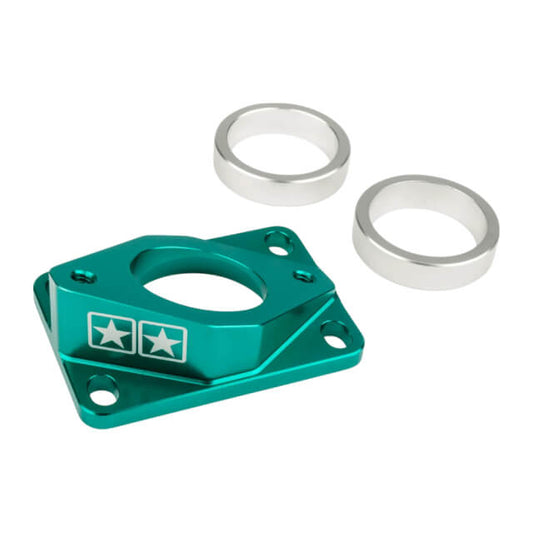

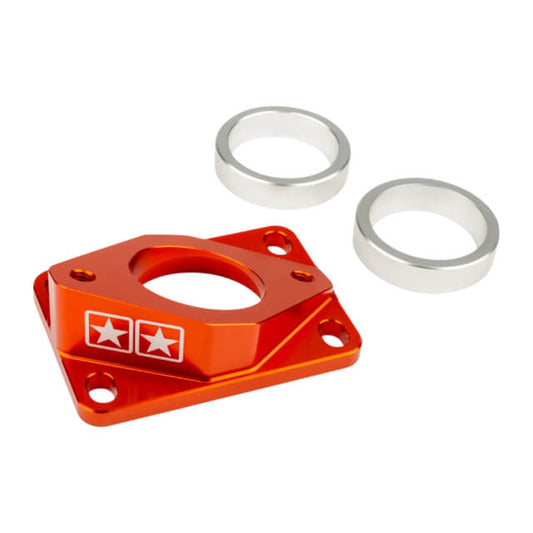

• Intake coupling
• Adapter ring 32.5 - 34 mm
• Connector sleeve not included
• Intake screws not included
• Base plate centre-to-centre distance 60x39.50 mm
• Intake connection centre-to-centre distance: 60 mm
• Inner diameter of the duct: 34 mm
