Variable Racing Ignition MVT Digital Direct Yamaha DT LC 50/80 RZ 50

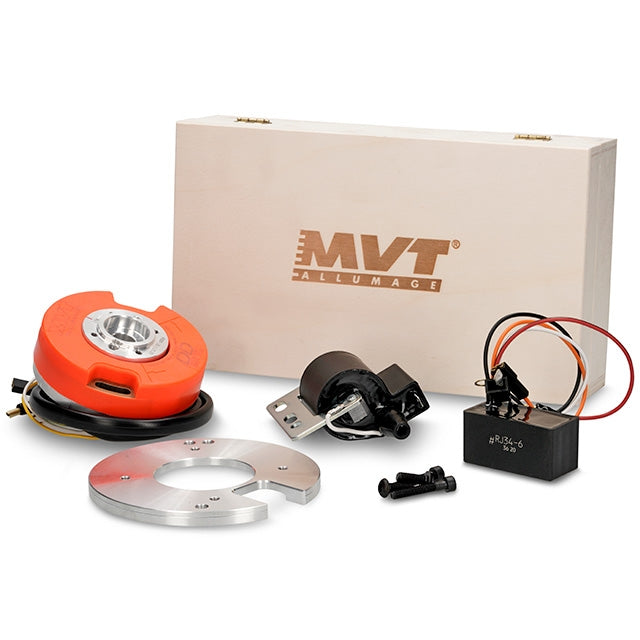

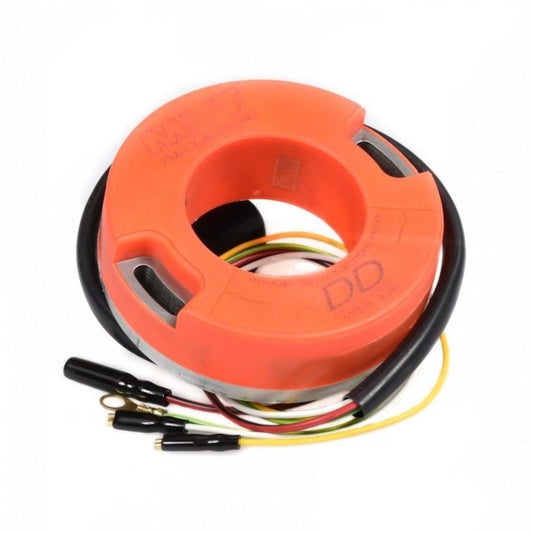

Ignition / inner rotor with MVT Digital Direct light for Yamaha DT LC 50 and 80 / RZ 50 with square cylinder.

Digital ignition with variable advance throughout the entire rev range. This means that the digital CDI unit will adapt the spark advance from low to high revs, optimizing the performance of your engine across the entire rev band.

You will achieve a faster RPM increase and greater power from a standstill.

Wiring diagram

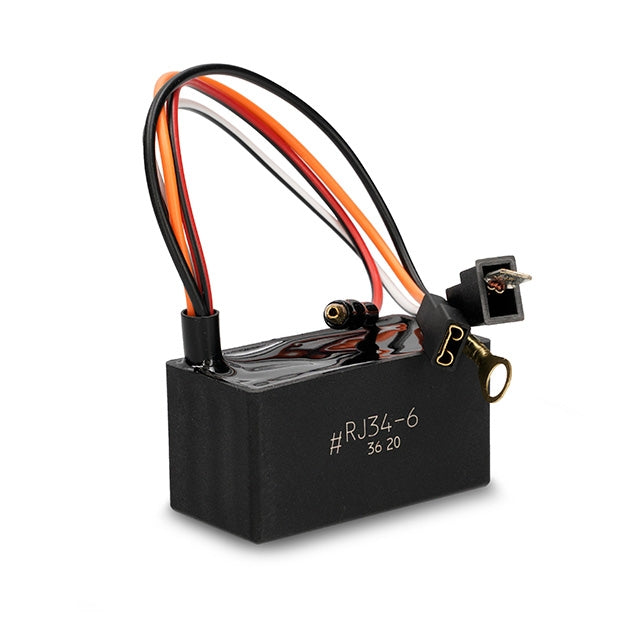

CDI unit wiring

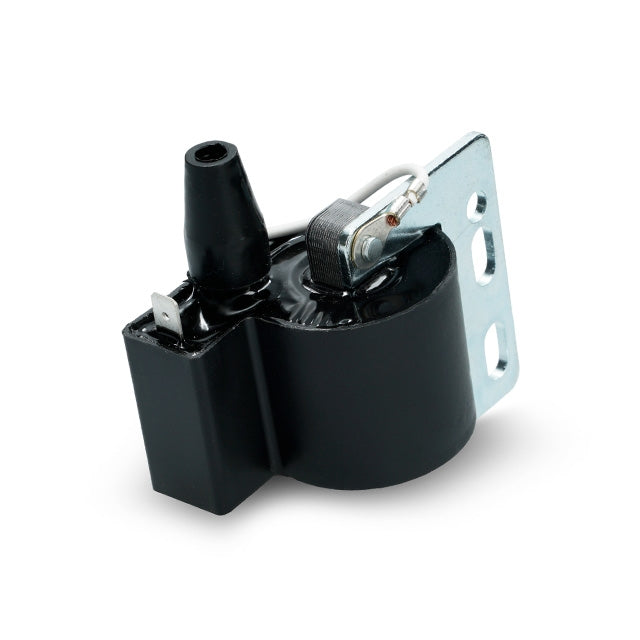

• Orange: Ignition coil
• Red/Black: Stator with red/black
• White/Black: Kill switch/Stop
• Black: Chassis ground

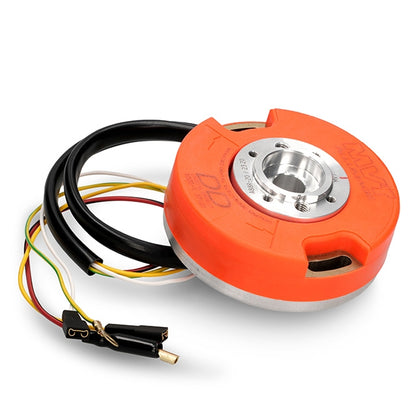

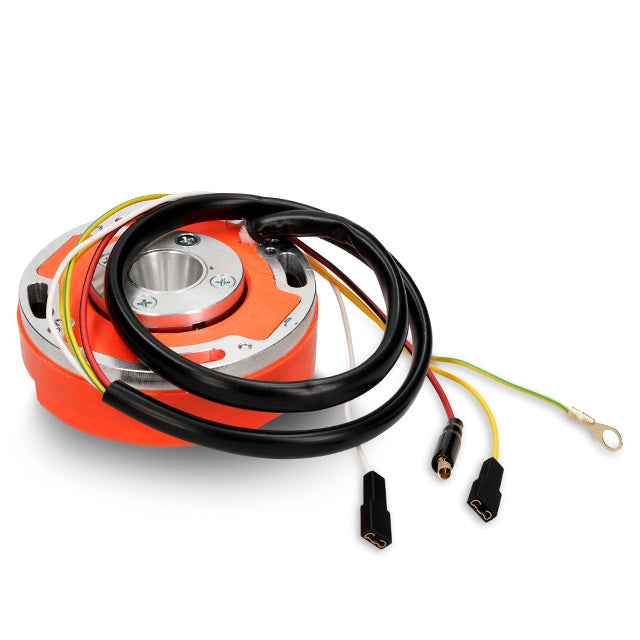

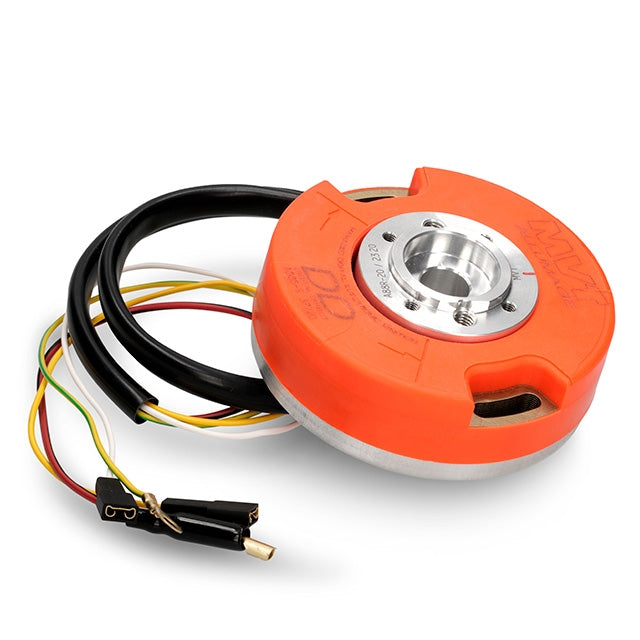

Stator wiring

• Green/Yellow: Chassis ground
• Red/Black: CDI unit with red/black
• Yellow: 12V Lights / Regulator
• White: Battery/Regulator charge

Attention! This ignition is not compatible with Yamaha DT 50 AM6 engine models. Only for old Yamaha square cylinder engines, such as the DT.
