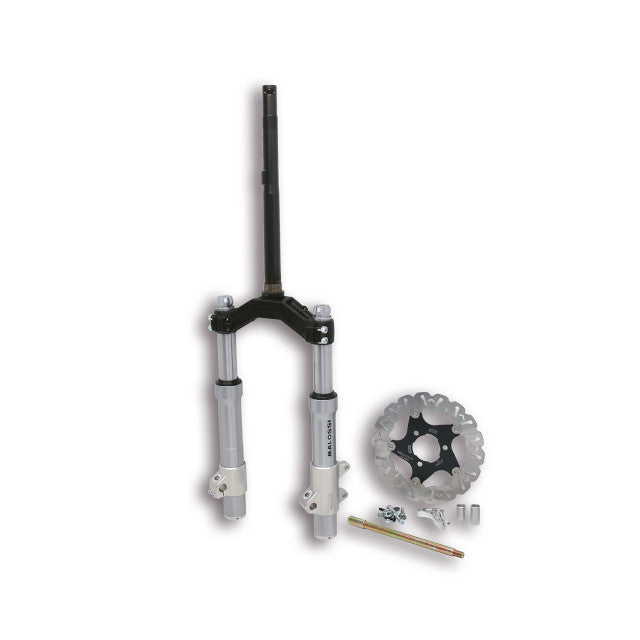

Piaggio Typhoon F37R Malossi Fork Kit

Malossi fork kit F37R for Piaggio Typhoon 125 4T.

As expected, Malossi is always evolving; this time it has redesigned the fork for the Piaggio Typhoon 125 4T.

They are designed to optimize suspension control according to specific driving conditions, allowing the adjustment of parameters such as compression and high and low speed rebound, which ensures a precise response throughout the suspension travel. This level of adjustment is essential for track performance, where the demands on the suspension vary drastically between braking, cornering, and acceleration.

It is adjustable in preload, extension, and compression. Without a doubt, an ideal component for the track.

Technical specifications

• Steering bar in special high-strength steel
• Wishbone in forged steel alloys
• Sliding tubes with 37mm diameter in special ground steel enriched with chrome to ensure exceptional sliding
• Stanchions in special polished anti-corrosion aluminum alloy
• Wheel mount in special aluminum alloy obtained entirely by chip removal
• Mono cartridge hydraulic system with sliding on D.U. washers and oscillating seal to minimize sliding friction
• Spring preload adjustment
• Extension braking adjustment
• Compression braking adjustment
• Fork travel 90mm

Assembly instructions
