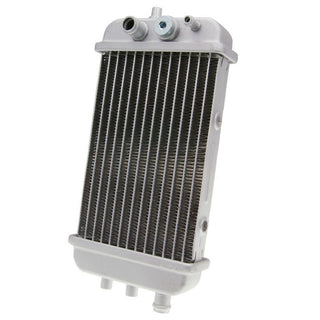

Radiator Derbi Senda 50 / Aprilia RX 50 / SX 50 Gilera RCR 50 Octane

Radiator replacement for models with or without electric fan, original type.


This radiator has a connector for temperature sensor, as well as mounting points for the electric fan.
A plug is provided for the temperature sensor connector. A temperature sensor with metric M14x1.5 can be mounted.


Measurements

- Height: 260mm
- Width: 140 mm
- Temperature sensor: M14 x 1.5


Compatible models

Aprilia
- RX 50 >2006
- SX 50 >2006

Derbi
- Senda all models

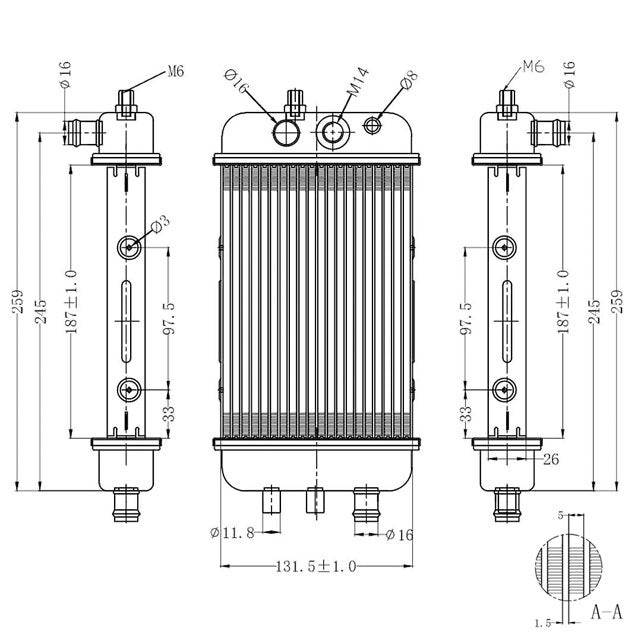

Attention! In the images you have all the radiator measurements; in many Derbi Senda models, others have been adapted or the support may be different.
