Rear wheel axle bearing and seal Piaggio NRG / ZIP / Typhoon 50 2-Stroke Teknix

Bearing rear wheel axle and rear seal from manufacturer Teknix for Piaggio NRG / ZIP / Typhoon 50 2-Stroke.

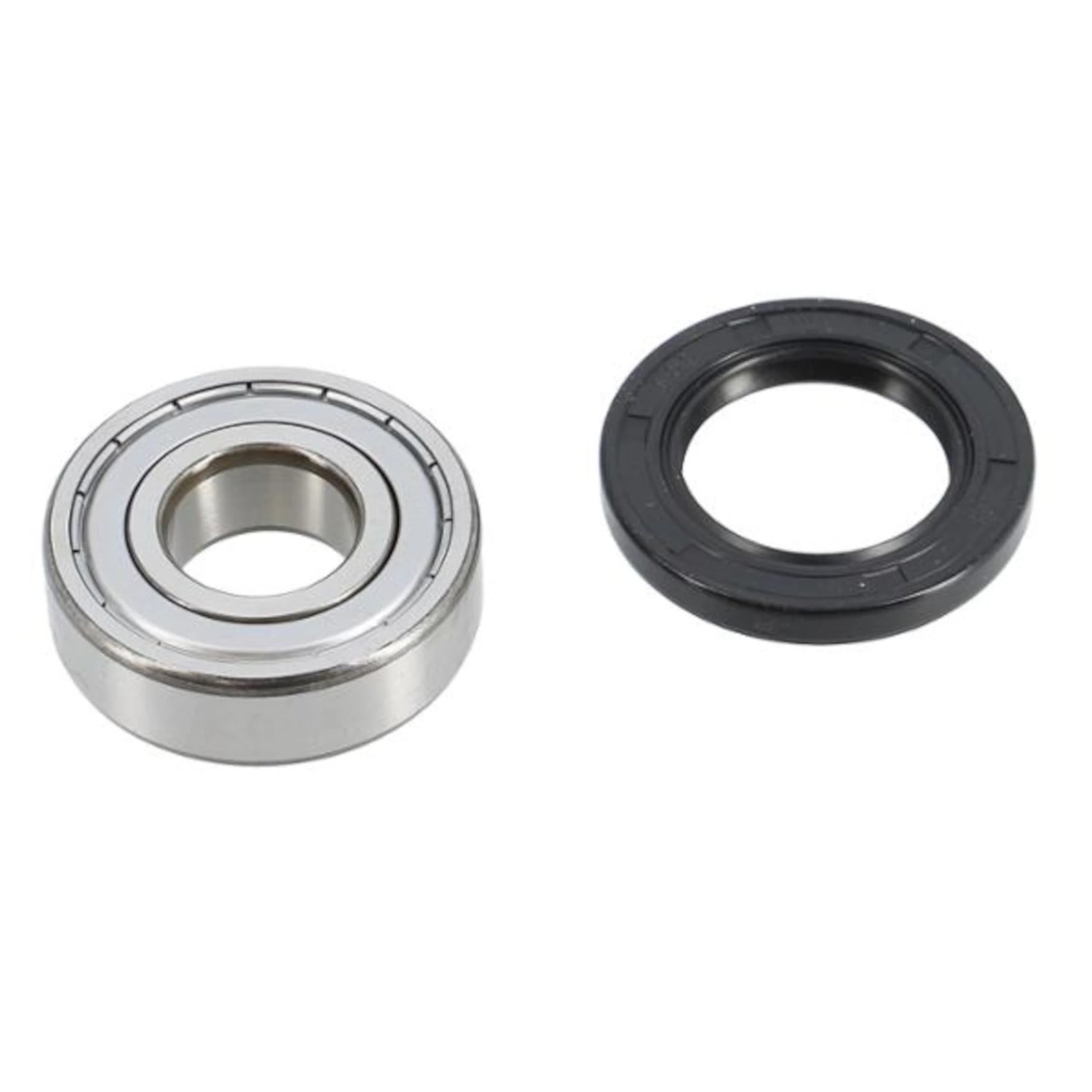

Rear wheel axle bearing kit and rear seal Teknix for Piaggio and Aprilia 50cc scooters.

This set is the necessary replacement when you notice play in the rear wheel or hear metallic noises while riding. By including the specific seal, you ensure the gear assembly remains sealed, preventing oil leaks that could damage the transmission.

Technical specifications

• Bearing type: Ball
• Bearing material: Steel
• Bearing cage material: Steel cage
• Inner diameter: 20 mm
• Outer diameter: 47 mm
• Thickness: 14 mm
• Bearing sealing: 2Z or ZZ metal shield on both sides
• Internal radial clearance: C4
• Basic dynamic load: 13.5 kN
• Basic static load: 6.55 kN
• Limit speed: 17,000 rpm
• Type: 6204-2RS

Compatible models

APRILIA

• SR MOTARD 2-Stroke 2012-2017

PIAGGIO

• TYPHOON 2-Stroke 1993-2016
• ZIP 4-Stroke 2006-2017
