Digital flasher relay 3 contacts Koso

Relay Digital Koso 3 Contacts.

This relay from KRS is the ideal solution for indicators that work too fast, too slow, or LED indicators that do not work at all.

You can continue using the original bulbs.

An electronic relay has the advantage of being more reliable. In addition, it does not make the typical sound of a mechanical relay.

Features:

• Voltage: 12 V
• Load range: 1 W - 80 W
• Pin output: 49 P = battery input, (12 V +) 31 G = ground (-), (GND)49a L = light (for turn signal switch)
• Relay connection: Black to P (power supply 49) Brown (49a) L (signal) Green to 31(-) (GND) For vehicles with triple connector and 2-pin assignment (49, 49a): Green (separate) to GND (31) and to ground For vehicles with triple connector and 3-pin assignment (49a, 31): Use green (adapter plug)

Dimensions:

• Diameter: 37 mm
• Height: 25 mm

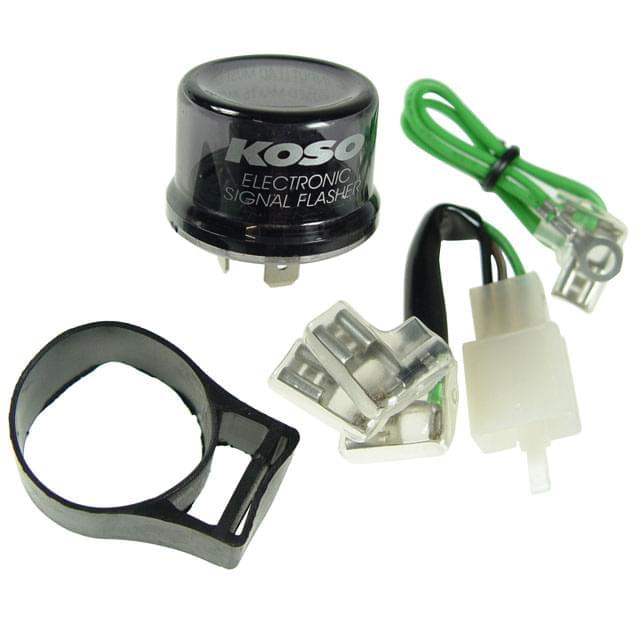

Includes:

• Indicator
• Ground cable
• Honda/Kawasaki/Yamaha adapter cable
• Rubber support
