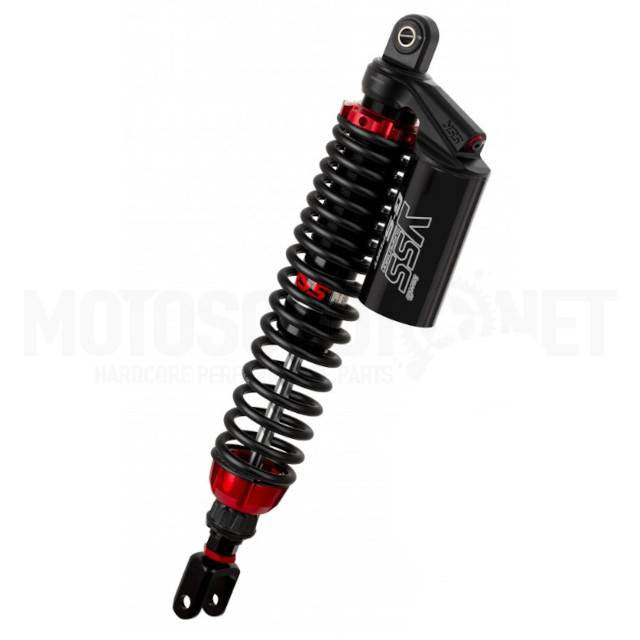

Shock absorber Honda ADV 350 22-24 YSS

Shock absorber from manufacturer YSS for Honda ADV 350 22-24.

Without a doubt, if you want to improve the handling of your motorcycle, this is the ideal component. It is adjustable in terms of preload, rebound, and height ±5cm, providing greater performance on the road.

• Threaded or adjustable spring screw preload. By screwing the cylindrical shock absorbers, the user can turn the preload to fine-tune the spring and tighten a provided bolt to fix the ring in position.
• Adjustable rebound: helps control the recovery of the shock absorber, making it faster or slower according to the rider's needs. It is designed with a needle control knob to regulate the oil flow through the free bleed orifice. The adjustable rebound knob is designed to detect the adjustment. Adjustment range: 30 clicks.
• Adjustable length. Helps increase the length of the shock absorber. The two types can be adjusted by 10 mm or adjustable lengths of +/- 5 mm.

Features

• Type: Gas pressure
• Upper mounting: Shaft
• Inner shaft diameter: 10 mm
• Length: 440-450 mm
• Lower mounting: Fork
• Fork width: 26 mm
• Adjustments: Variable spring preload
• Length adjustment +/- 5 mm
• Traction level
• Spring color: black
• Spring characteristic: 10-18
• Spring length: 260 mm
• Spring diameter: 50 mm
• Compensation reservoir: Yes
• Piston diameter: 30 mm
• Piston rod diameter: 12 mm
