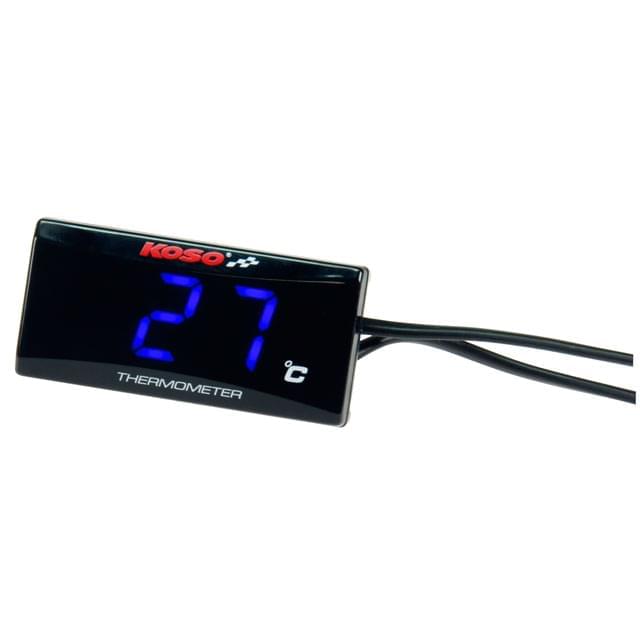

Koso Super Slim temperature gauge - blue

Temperature meter Koso Blue back light.

The KOSO temperature meter is rectangular and displays a range of 0 to 120 degrees Celsius.

Innovative design and compact with a black background and blue illumination.



The kit includes a sensor for the PT1/8 cylinder head and a 1-meter long connection cable.

Reference table for 50cc mopeds

• Piaggio LC (M10x1.25)
  Ref: BF100125-n

• Peugeot LC (M14x1.25)
  Ref: S6-4030ET03 / BF140125-n

• Minarelli AM6 Engine (M14x1.25)
  Ref: S6-4030ET03 / BF140125-n

• Derbi E2/E3 engine (M14x1.50)
  Ref: BF140150-n

• AC engines 2T
  Ref: KO-KI000R14
• AC 4T engines
  Ref: KI000R10-n

• Minarelli Scooter (PT1/8)
  Ref: S6-4030ET01 / BF030125-n



If you need to change the temperature sensor, remember to buy a temperature sensor with a black mount.
In the table the measurements are provided by the manufacturer for original cylinders and other setups; before purchasing, it is recommended to measure the thread metric and pitch.

If your model of motorcycle does not have a battery, you must use the battery holder QQ004000.

Includes:

• Koso Temperature meter
• Instruction manual
• KOSO stickers
• Velcro mount
• Wire taps

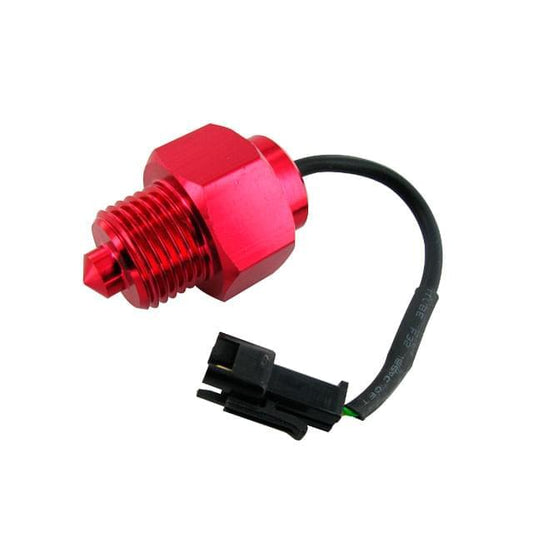

• BF030125 PT1/8 x28 temperature sensor (150 degrees C, black plug)
• BO001000 1 meter cable for temperature sensor (black plug)

Attention! The temperature sensor included in the kit is a metric PT1/8 black mount; depending on the engine, you must purchase a separate sensor.
