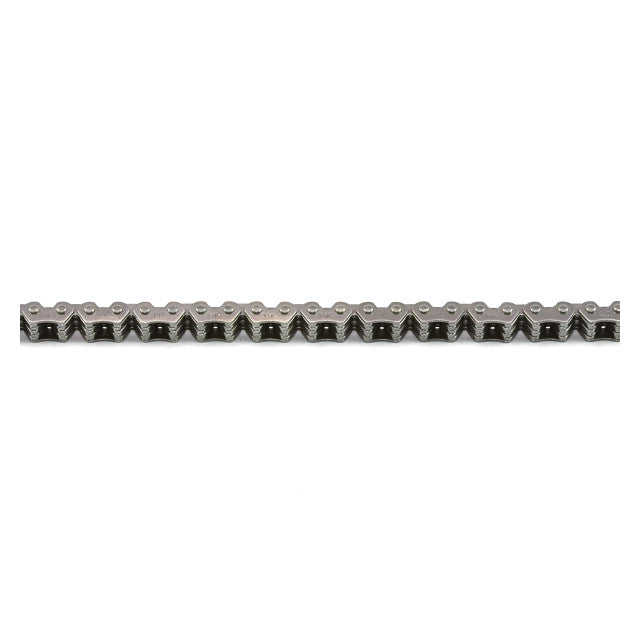

Distribution Chain Honda SH 300 07-20 KMC

Timing Chain for Honda SH 300 from manufacturer KMC

The KMC timing Chains are manufactured with high-quality steel, using an advanced stamping method and an exclusive heat treatment for the links.
Maximises the contact area between the links and the sprocket for better chain strength, impact resistance, and low operating noise.
These properties make KMC timing Chains a very good option for OEM timing Chains in terms of quality, reliability, and price.

Technical specifications:

• No.Number of links: 104
• Pitch: 6.35 mm
• Roller link width: 3.05 mm
• Outer mesh thickness: 0.7 mm
• Inner mesh thickness: 1.0 mm
• Inner mesh height: 6.70 mm
• Pin diameter: 2.42 mm
• Pin length: 6.10 mm
• Minimum breaking load: 550
• Average breaking load: 660

Valid for:

Honda

• HONDA SH 300 A I ABS 300 2007-2008
• HONDA SH 300 I 300 2007-2010
