BMW F 650/700/800 transmission kit 16x42T 525 pitch VX3 116 links D.I.D - steel

Transmission kit for BMW F 650-700-800 from manufacturer DID featuring the X-Ring 525 model with 116 links.

The RK X-Ring 520XSO2 chain with 114 links is the option you are looking for.

RK has supplied MX chains to all major Japanese motorcycle manufacturers for over 40 years, and distributes its chains to both the MotoGP and MXGP teams.

The GXO quality is a chain designed to withstand the harshest conditions. They offer the best properties under extreme conditions and protect against abrasion, heat build-up and lubricant loss, and help keep dirt and dust away, maintaining better lubrication of the chain.

The shape of the XW-rings is the most optimal for keeping a chain lubricated under the most extreme conditions and maximising its service life.

The Kit includes:

• 42-tooth steel Rear sprocket
• 16-tooth sprocket
• Open Chain with DID VX3 X-Ring 525/116 link

Don't forget the essential tool for its installation: CHAIN CUTTER

Technical specifications:

• Measurements: 16x42z
• Colour: Black

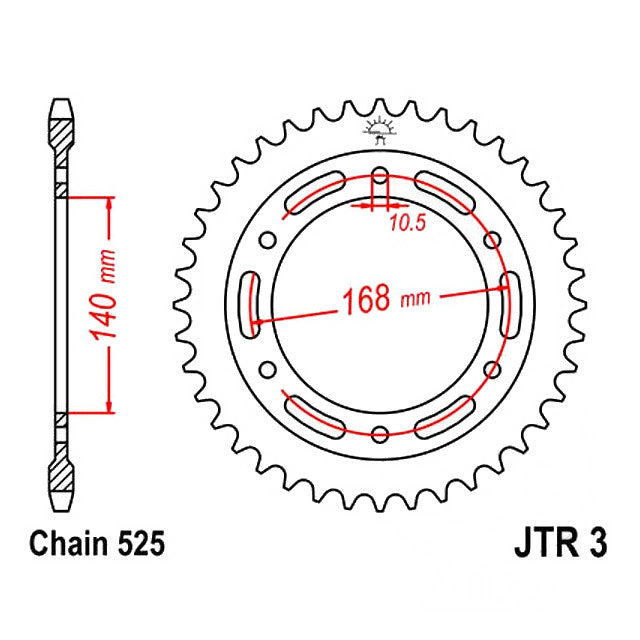

Rear sprocket

• Pitch: 525
• Inner diameter: 140 mm
• Circle measurement: 168 mm
• Hole: 10.5 mm
• Number of holes: 6
• Type of screw: Flat head
• No. of teeth: 42
• Type of rear sprocket: Steel

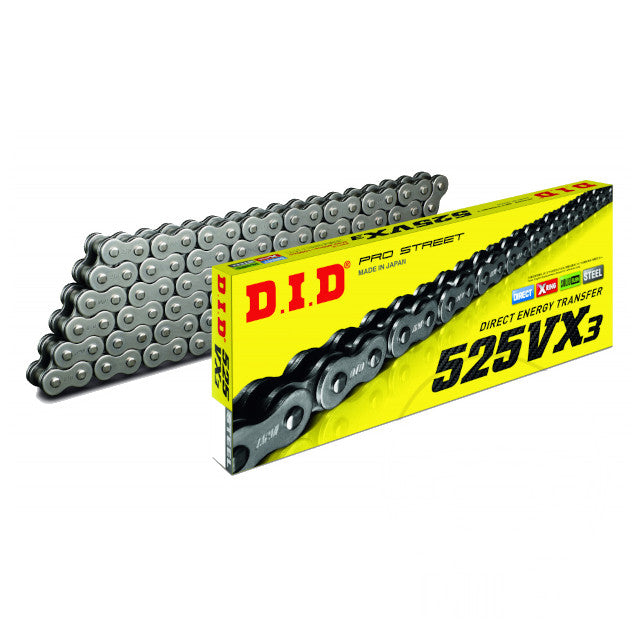

Chain

• Pitch: 525
• Length: 116 Steps
• Seal: X-Ring
• Manufacturer: DID
• Type: VX3
• Version: Open
• Tensile strength
• (kg): 4524 kg
• Outer link color: steel
• Inner link color: steel
• Continuous index: 4000
• Type of link: Hollow rivet
• Chain by pitch: 748.04.14
• Suitable clip link: 748.04.15
• Suitable solid rivet link: 748.04.16
• Suitable hollow rivet link: 748.04.17

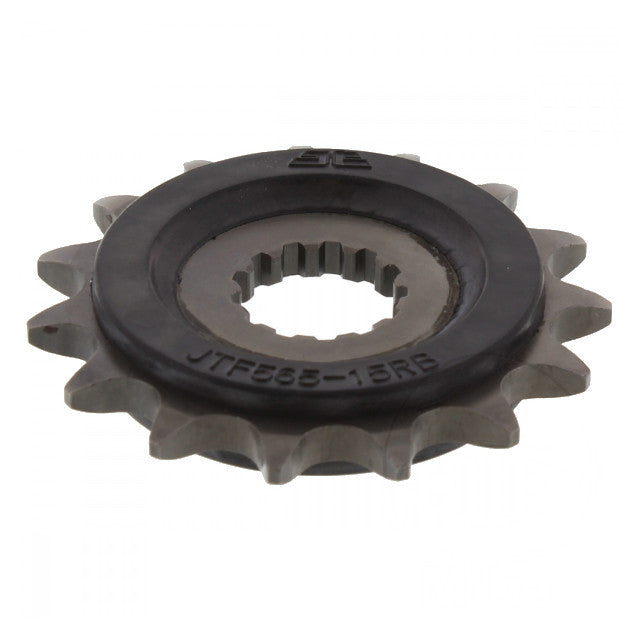

Front sprocket

• Pitch: 525
• Central fixing: Fine gear
• Min. inner diameter: 25 mm
• Max. inner diameter: 28 mm
• Inner gear (Number of teeth): 17
• Number of holes: without hole
• Width: 18.8 mm
• Version: rubberized
• Manufacturer: JT
• No. of teeth: 16

Valid for:

BMW

• BMW F 650 800 GS 2009-2012
• BMW F 800 800 GS 2009-2017
• BMW F 800 800 GS ABS 2010-2017
• BMW F 800 800 GS Adventure ABS 2013-2017
• BMW F 800 800 R 2009-2010
• BMW F 800 800 R ABS 2017-2018
• BMW F 800 800 R ABS 2015-2019
