Ducati Monster 696 08-13 Transmission Kit 15x45T 520 pitch VX3 D.I.D

Transmission kit for Ducati Monster 696 520 VX3 from manufacturer DID

The RK X-Ring 520VX3 chain with 108 links is the option you are looking for.

RK has supplied MX chains to all major Japanese motorcycle manufacturers for over 40 years, and distributes its chains to both the MotoGP and MXGP teams.

The GXO quality is a chain designed to withstand the toughest conditions. They offer the best properties under extreme conditions and protect against abrasion, heat build-up and loss of lubricant, help keep dirt and dust away, and maintain better lubrication of the chain.

The shape of the XW-rings is the most optimal to keep a chain lubricated under the most extreme conditions and maximises its service life.

Technical features:

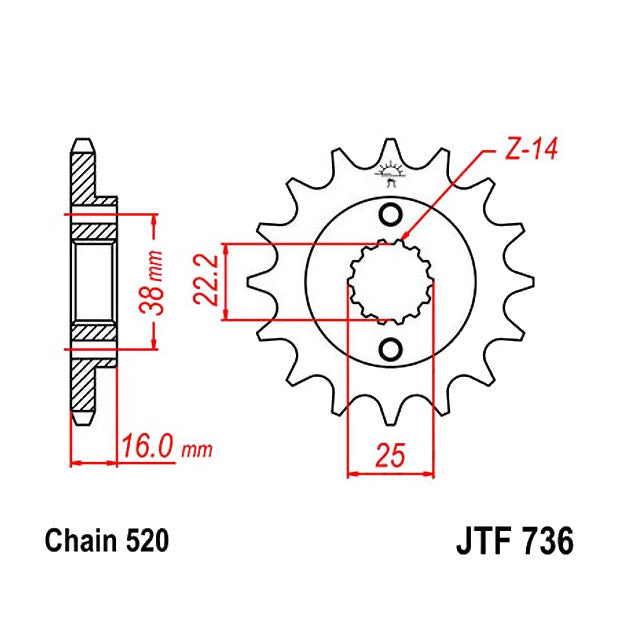

Front sprocket

• Pitch: 520
• Central mounting: Fine gear
• Minimum inner diameter: 22.2 mm
• Maximum inner diameter: 25 mm
• Inner gear (Number of teeth): 14
• Number of holes: 2
• Hole distance: 38 mm
• Width: 16 mm
• No. of teeth: 15

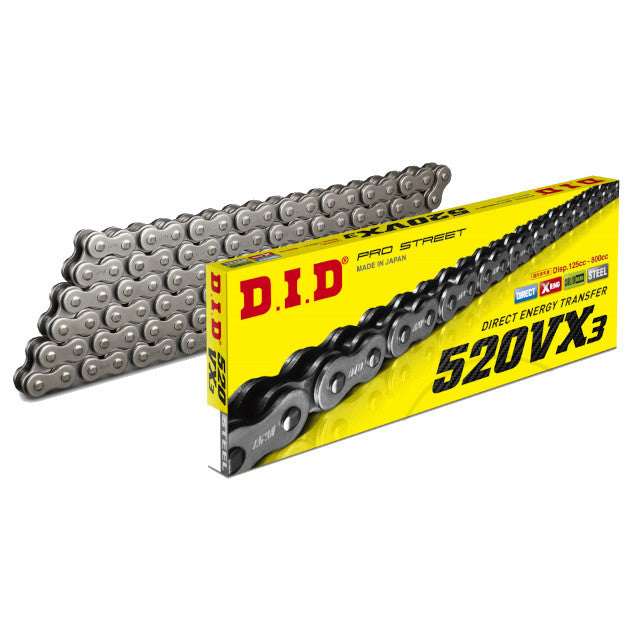

Chain

• Pitch: 520
• Length: 108 Steps
• Seal: X-Ring
• Manufacturer: DID
• Type: VX3
• Version: Open
• Tensile strength (kg): 3720 kg
• Outer link colour: steel
• Inner link colour: steel
• Continuous index: 3500
• Type of link: Hollow rivet

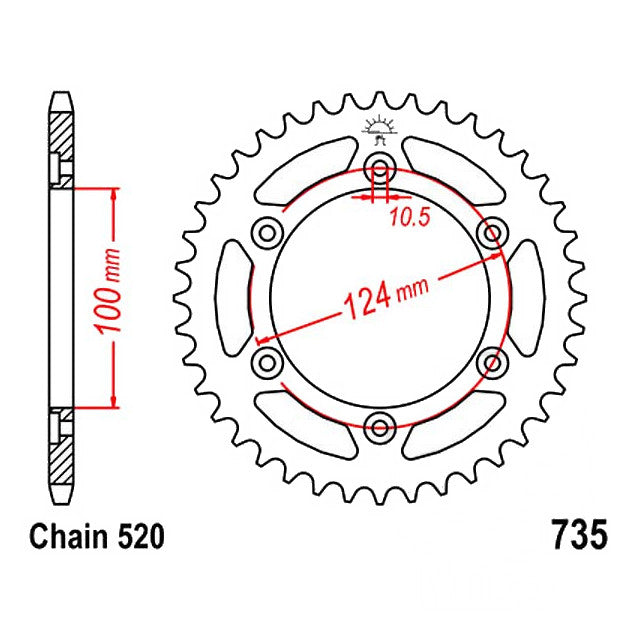

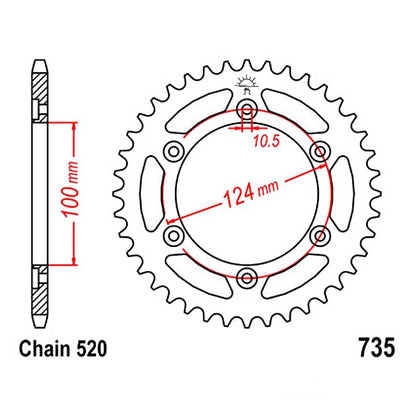

Rear sprocket

• Pitch: 520
• Inner diameter: 100 mm
• Circle measurement: 124 mm
• Hole: 10.5 mm
• Number of holes: 6
• Bolt type: Flat head
• No. of teeth: 45
• Type of rear sprocket: Steel

Suitable for:

Ducati

• Ducati 851 851 S 1988-1991
• Ducati 888 888 Strada 1993-1995
• Ducati 907 900 ie 1990-1993
• Ducati Monster 600 1994-2001
• Ducati Monster 620 ie DD 2002-2005
• Ducati Monster 695 2007-2011
• Ducati Monster 696 ABS 2010-2014
• Ducati Monster 750 1996-2001
• Ducati Monster 900 1993-1999
• Ducati Supersport 350 SS 1989-1993
• Ducati Supersport 400 SS 1993-1995
• Ducati Supersport 600 SS Carenata 1994-1998
• Ducati Supersport 750 SS Carenata 1996-2000
• Ducati Supersport 800 SS ie Carenata 2003-2004
• Ducati Supersport 900 SS Nuda 1991-2002
