Kawasaki Z 1000 SX 201 transmission kit 15x41Z 525 ZVMX2 pitch 112 links D.I.D - gold

Transmission kit for Kawasaki Z 1000 SX 201 15x41 DID 525 ZVMX2 gold 112 links

Technical specifications:

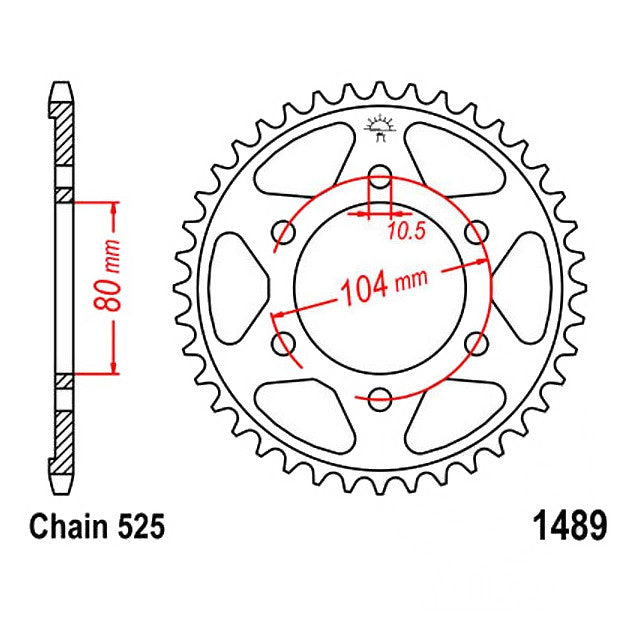

Rear sprocket

• Pitch: 525
• Inner diameter: 80 mm
• Circle measurement: 104 mm
• Hole: 10.5 mm
• Number of holes: 6
• Bolt type: Flat head
• No. of teeth: 41
• Type of rear sprocket: Steel

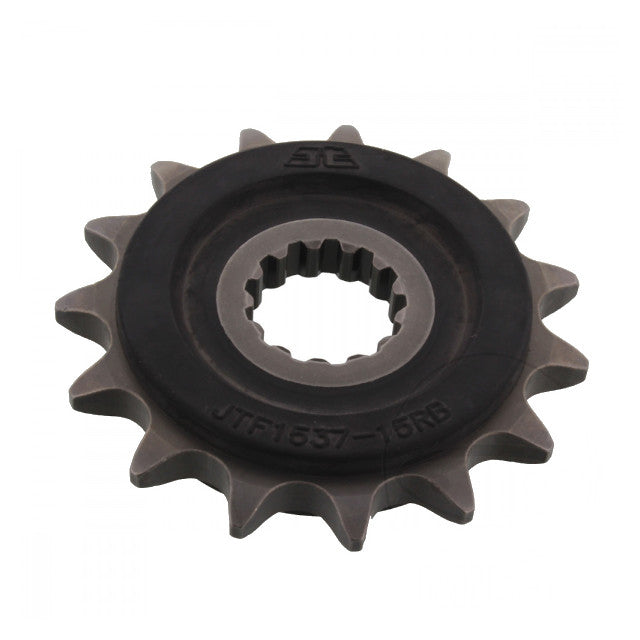

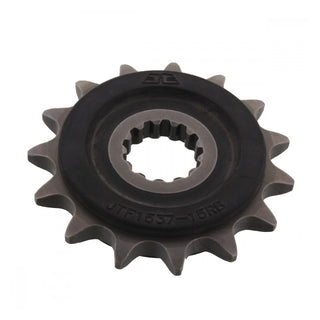

Sprocket

• Pitch: 525
• Central fixing: Fine gear
• Min. inner diameter: 21.7 mm
• Max. inner diameter: 25 mm
• Inner gear (Number of teeth): 13
• Number of holes: no hole
• Width: 8.5 mm
• Version: rubberised
• Manufacturer: JT
• No. of teeth: 15

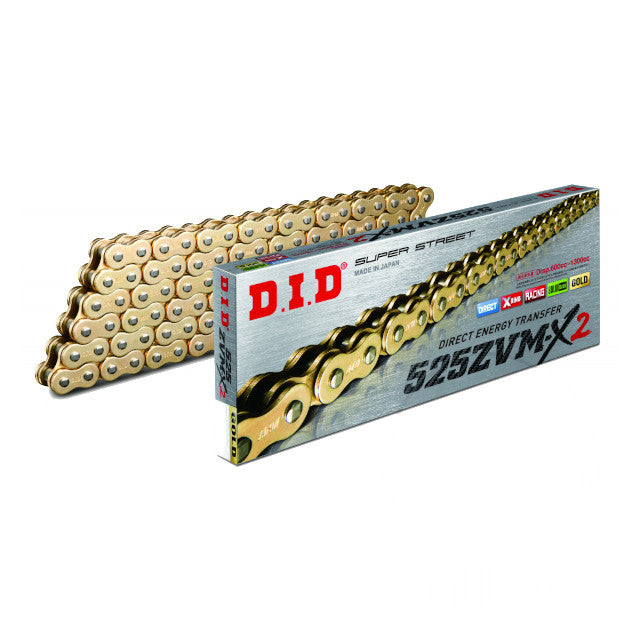

Chain

• Pitch: 525
• Length: 112 Steps
• Seal: X-Ring
• Manufacturer: DID
• Type: ZVMX2
• Version: Open
• Tensile strength (kg): 4720 kg
• Outer link colour: gold
• Inner link colour: gold
• Continuous index: 4000

Valid for:

Kawasaki

• Kawasaki KLZ 1000 A Versys ABS 2012-2022
• Kawasaki Ninja 1000 SX ABS 2020-2022
• Kawasaki Z 1000 A 2003-2013
• Kawasaki Z 1000 F 2014-2016
• Kawasaki Z 1000 SX ABS 2011-2021
• Kawasaki Z 900 RS ABS 2017-2022
• Kawasaki ZX-10R 1000 C Ninja 2004-2020
• Kawasaki ZX-6R 600 G Ninja 1998-2002
• Kawasaki ZX-7RR 750 N Ninja 1996-2003
