Suzuki RV 125 Vanvan 07-13 transmission kit 14x49Z 428 VX 134 links D.I.D - steel

Drive kit Suzuki RV 125 VANVAN 14x49 X-Ring 428 VX Steel 134 links from the manufacturer D.I.D.

D.I.D, a brand recognized worldwide for its excellence in transmission systems, presents this kit of unsurpassed quality. Known for its innovation and the durability of its products, D.I.D. ensures with this kit a smooth transmission and unparalleled resistance.

Choosing a D.I.D. product means opting for decades of experience and trust in the industry. This kit is a clear representation of the legacy and quality that D.I.D. offers to motorcycling enthusiasts.

FEATURES:

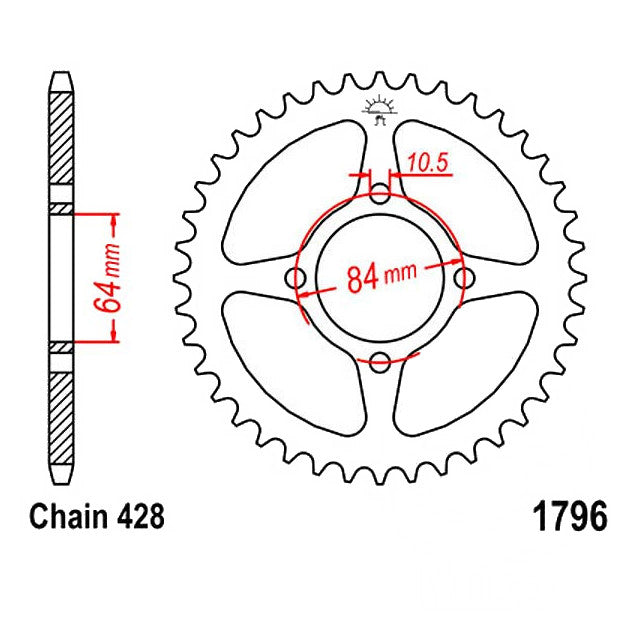

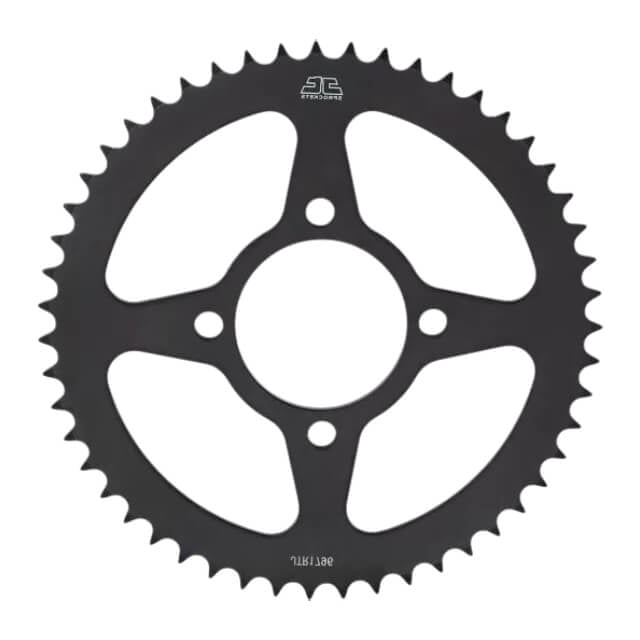

SPROCKET:

• Pitch: 428
• Inner diameter: 64 mm
• Circle measurement: 84 mm
• Hole: 10.5 mm
• Number of holes: 4
• Bolt type: Flat head
• Number of teeth: 49
• Sprocket type: Steel
• Manufacturer: JT

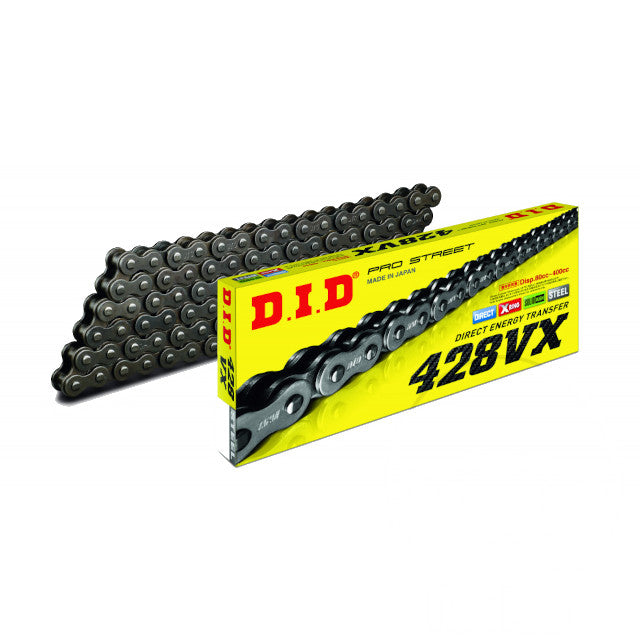

CHAIN:

• Pitch: 428
• Length: 134 Steps
• Seal: X-Ring
• Manufacturer: DID
• Type: VX
• Version: Open
• Tensile strength (kg): 3360 kg
• Outer link color: steel
• Inner link color: steel
• Continuous index: 2700
• Type of connector: Clip

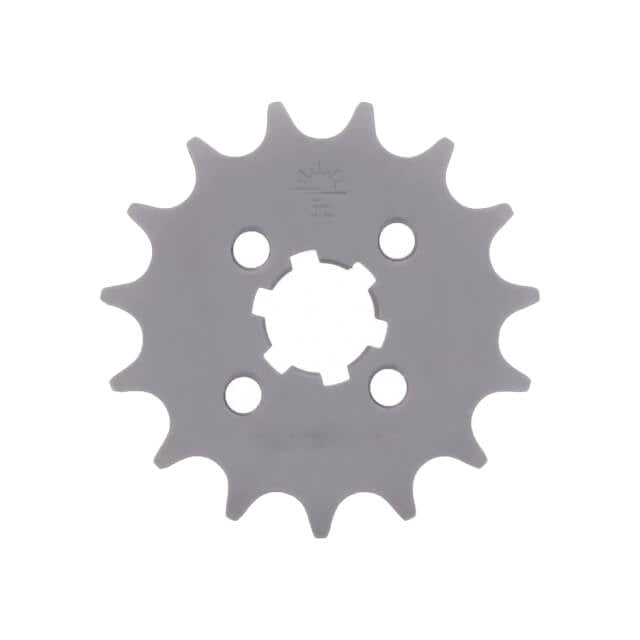

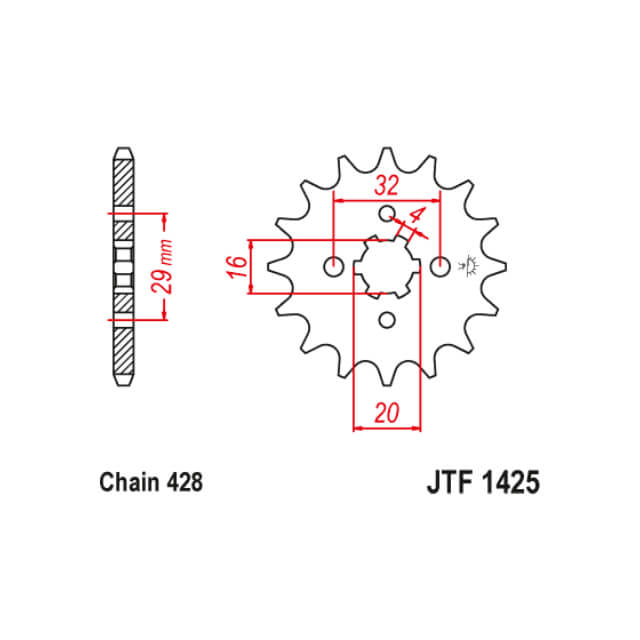

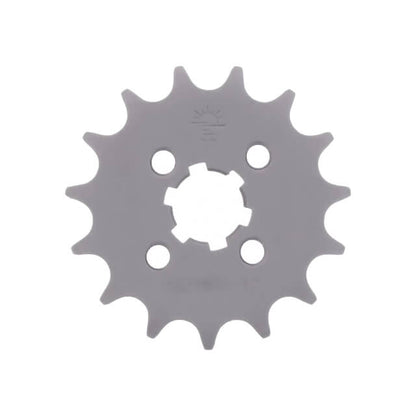

PINION:

• Pitch: 428
• Central fixing: Thick gear
• Min. inner diameter: 16 mm
• Max. inner diameter: 20 mm
• Inner gear (Number of teeth): 6
• Inner gear (Distance): 4 mm
• Number of holes: 2
• Hole distance: 32 mm
• Version: Standard
• Manufacturer: JT
• Number of teeth: 14

COMPATIBLE MODELS:

SUZUKI:

• RV 125 Van Van / 03-13
