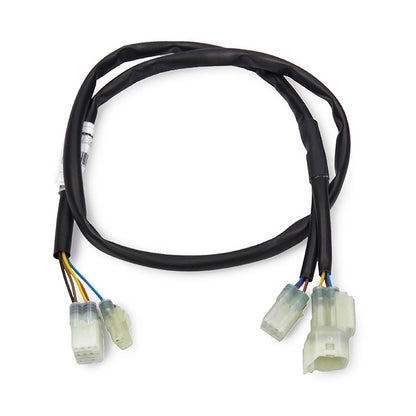

Kymco AK550 Rapid Bike Easy central wiring

Specific wiring for installing the RapidBike Easy control unit on the following models:

Kawasaki

• J / J ABS 300 14/15

Kymco

• K-XCT I 125 12/15
• People GTI IE 125 10/15
• Agility R16 150 14/15
• Agility I R16 (C31000) 200 10/15
• Agility I R16 Plus (C32000) 200 10/15
• People S IE DD 200 07/15
• People S 250 06/08
• Xciting I 250 06/08
• Grand Dink 300 12/16
• People GTI IE / ABS 300 10/15
• People S I 300 08/12
• Super Dink 300 09/15
• Xciting I 300 08/12
• Xciting I R 300 08/14
• Super Dink IE 4T LC Euro4 350 17/18
• Xciting I 400 12/15
• Xciting I ABS E4 17/
• Xciting I 500 06/12
