Yotsuba moto Woof 16

Yotsuba moto Woof 16.

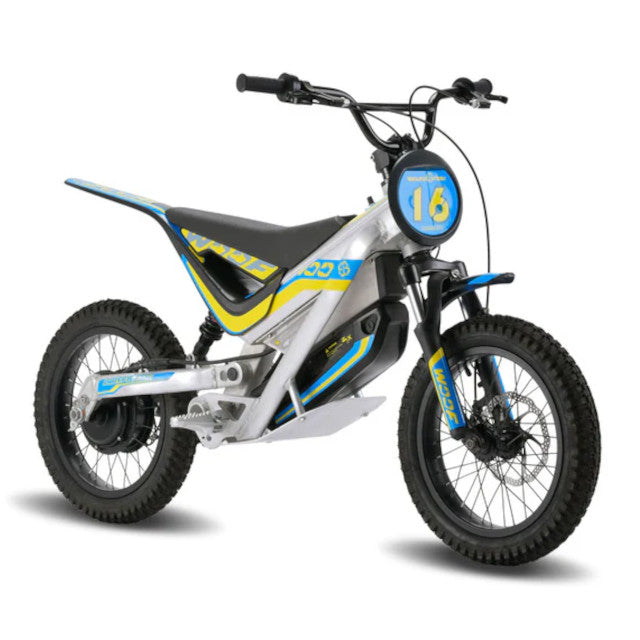

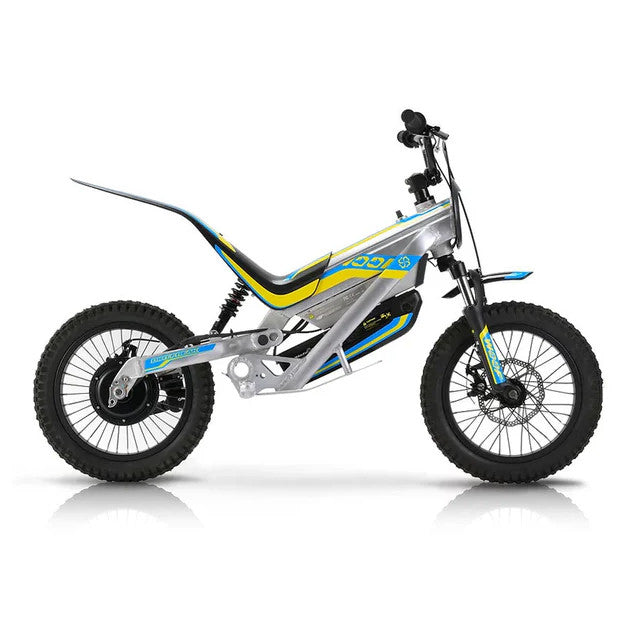

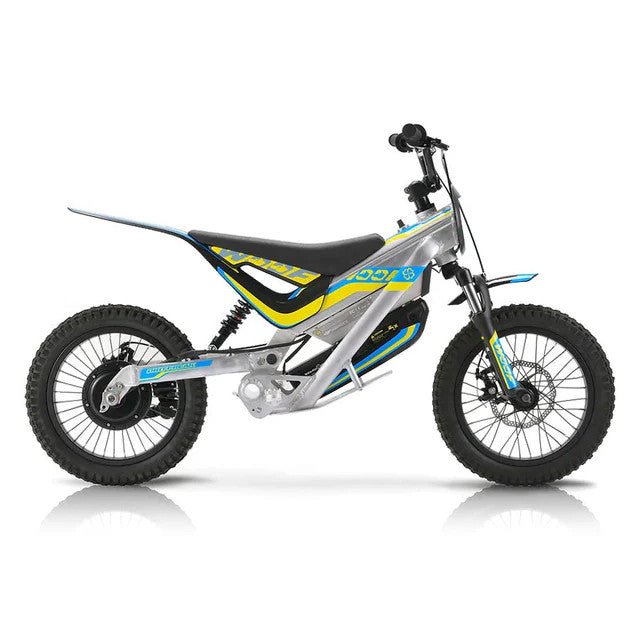

Convertible motorcycle 2 in 1, with a power of 750/1500w, voltage of 48v, aluminium frame, front and rear suspension, and disc brakes.

The motorcycle has been developed so that you can enjoy 2 different specialties, Motocross and Trial.

Key information

WOOF

• The main feature of the WOOF is that it can be configured in dimensions as an Off-road or Trial motorcycle by changing the mounting position of the swingarm and making the seat removable.
• It only takes about 5 minutes to change the size, so it can be easily adjusted depending on the type of terrain.

Battery

• The battery has a capacity of 10Ah, which is enough for 2-3 hours of operation. The continuous running time is about 50 minutes in dry conditions and about 45 in wet. The estimated charging time is about 3 hours.

Speeds

• WOOF has a continuously adjustable dial to regulate the power. The mode switch allows you to choose between acceleration-oriented mode (sunny mode) and traction-oriented mode (rain mode). It does not affect either the power or the top speed.

Gyroscopic sensor

• Detects falls, activating and stopping the motor when the tilt exceeds 65 degrees.

Frame

• The frame is neither painted nor treated with an oxide coating. The user must polish or wax it regularly.

Suspension and braking

• Front and rear suspension, and cable-operated disc brakes. The standard brake levers are designed for small-diameter handlebars.

Motor

• This motorcycle has no chain or sprockets. It uses a hub motor built into the rear wheel. This reduces the possibility of trapping fingers or feet in the chain or sprockets.
• Its configuration (with the motor close to the ground) provides a lower centre of gravity and helps when picking up the motorcycle.
• The power is 48V 750W (output) / 1500W (maximum instantaneous). The maximum speed on flat terrain is 40Km/h.

Tires

• Standard tires provide adequate grip for both on-road and off-road use.

Protector

• To protect the battery, the motorcycle is equipped with a robust 3 mm thick lower protector, allowing for greater durability against impacts.

Technical specifications

• Length: 1365 mm (1320)
• Width: 600 mm
• Height: 790 mm (805)
• Wheelbase: 950 mm (905)
• Minimum seat height: 563 mm (485)
• Ground clearance: 170 mm (200)
• Steering angle: 26° (23°)
• Frame: AL6061
• Front fork: AL6061
• Front suspension: Telescopic
• Rear suspension: Mono shock absorber
• Front brake: Disc
• Rear brake: Disc
• Wheel size: 16 x 2.4
• Weight: 25 kg
• Maximum speed Fast/Medium/Low: 40 km/h
• Motor: Hub motor
• Battery: Lithium 48 V / 10 Ah
• Power: 750 / 1500 W
• Voltage: 48 V
• Charging time: 3 hours
• Battery life Fast/Medium/Low: 30 / 60 / 100 minutes
• Maximum recommended weight: 55 kg
• Recommended age: From 7 years old
