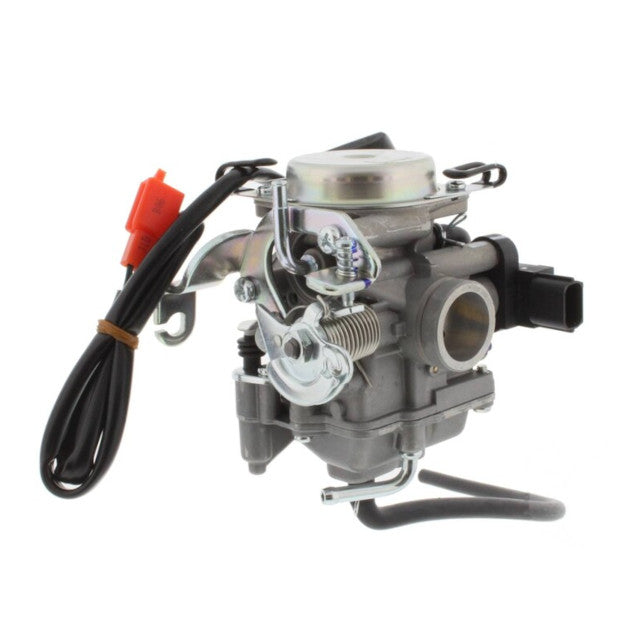

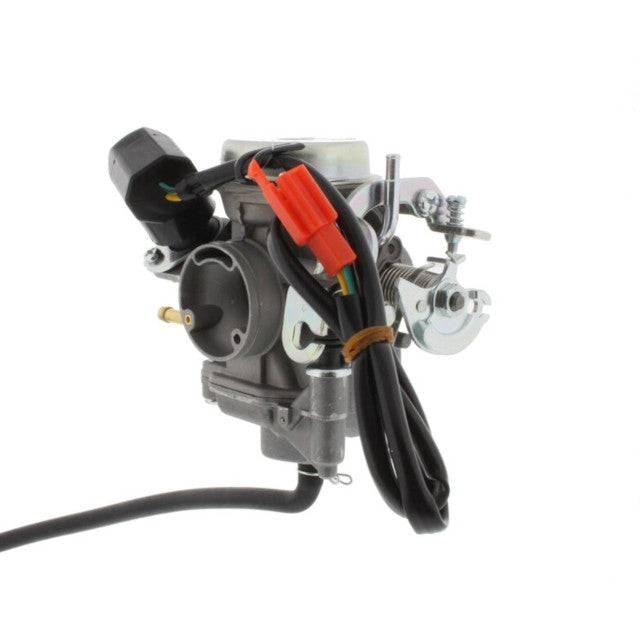

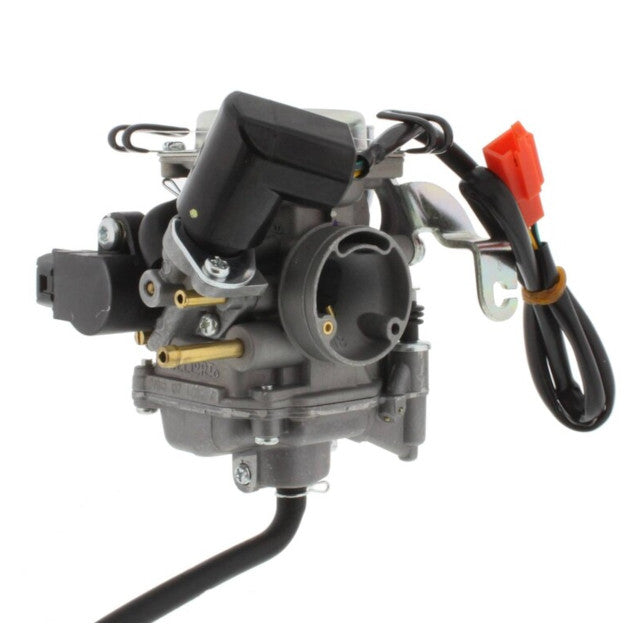

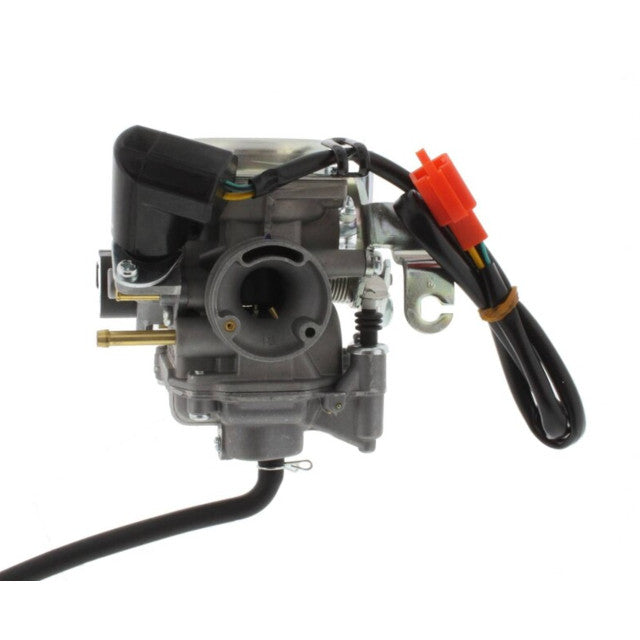

Carburettor 18Z type TKSVB SYM E5 Dellorto

Carburettor TKSVB 18Z from the manufacturer Dellorto

Dellorto offers its carburettor specially designed for modern scooters of 50 cc and 4T engines under the Euro5 standard.

This carburettor is optimised to ensure a correct air-fuel mixture, maintaining a balance between the pressures of the carburettor and the diaphragm, which is crucial for engine efficiency. In addition, it helps to meet the strict Euro5 emission requirements, providing adequate performance without compromising the reduction of pollutant gases.

A carburettor of this type is standard on the SYM Fiddle 50 4T 12’’ and 45 km/h (not suitable for 25 km/h)

The carburettor is supplied ready for installation (tuned for 50cc 4T Euro5 scooters).

Technical specifications:

• Main jet: 86 (7 mm)
• Idle jet: 33

• Intake manifold diameter: 28 mm
• Air filter manifold diameter: 38 mm
• Venturi: 18
• For engine: 4T
• Mounting type: Flexible
• Starter motor: Automatic
• European standard: Euro5


Suitable for:

SYM

• SYM CROX 50 4T E5 2021-2024
• SYM FIDDLE II 50 4T 2021-2024

OEM: SYM 16100-AYU-000
