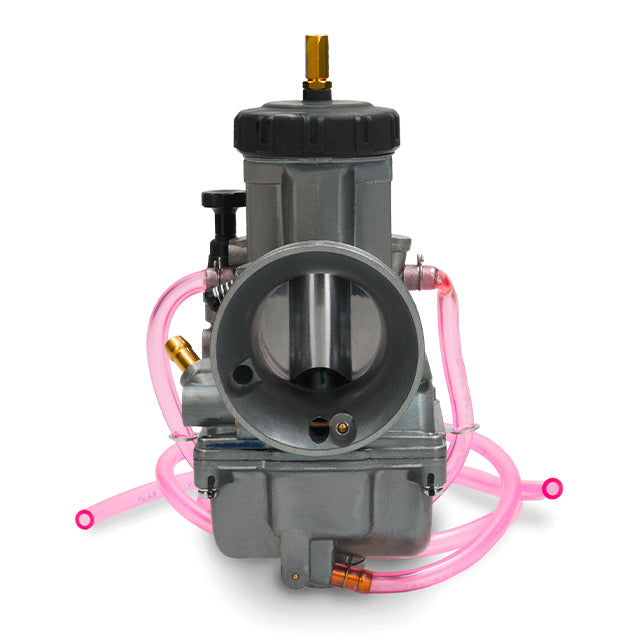

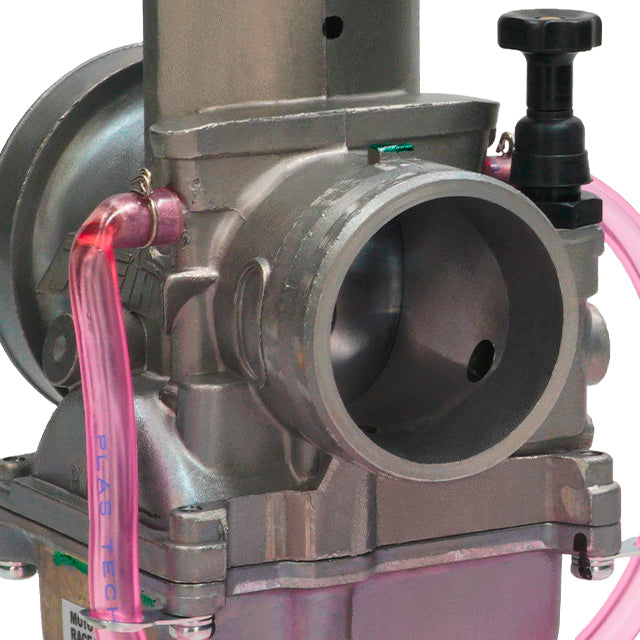

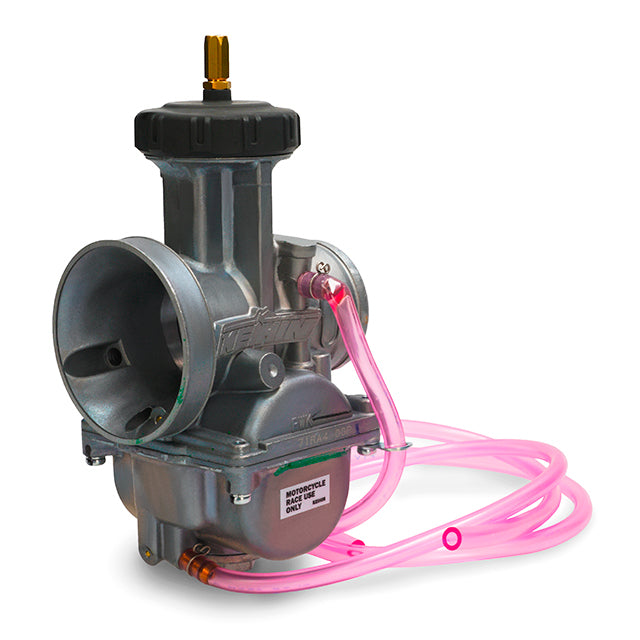

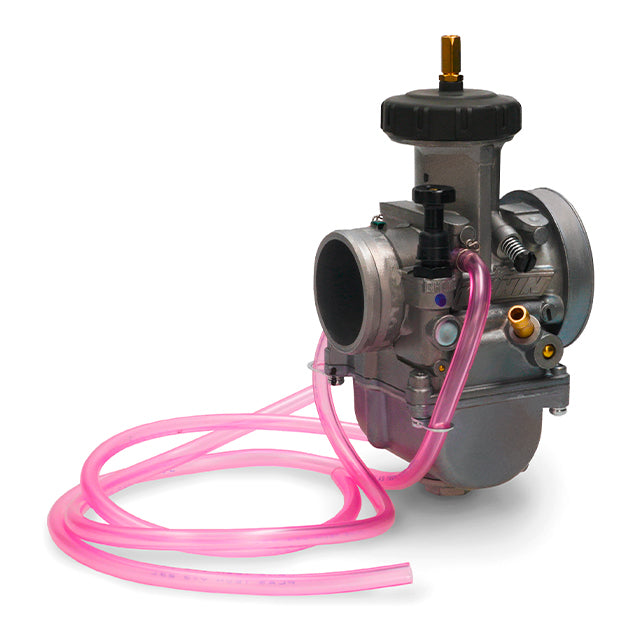

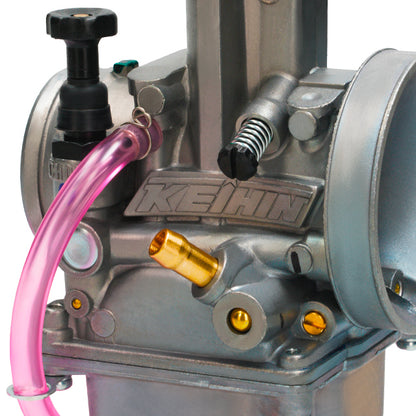

Keihin PWK 38 Carburettor

Keihin PWK 38 mm Carburettor. The original 38 mm Keihin carburettor with a semi-flat slide allows you to significantly improve the performance of motorcycles and scooters, as it is a high-performance component.

It is ideal for 2-Stroke engines, offering an optimal adjustment of the carburetion to achieve the desired performance according to the configuration of the motorcycle and the usage conditions.

It features a lever choke for cold starting, as well as overflow tubes to redirect excess fuel to the outside.

If you are looking for more power, this is your Carburettor!

MEASUREMENTS:
· Outer diameter connection with intake: 46 mm
· Outer diameter connection with air filter: 63 mm
· Carburettor body height: approx. 172 mm
· Carburettor body width: approx. 91 mm

ADJUSTMENT:
· Main jet: 172 (PWK type)
· Idle jet: 58 (PWK type)
· Slide needle: DDJ
· Slide: 7

Important: 100% Original Keihin Carburettor.
