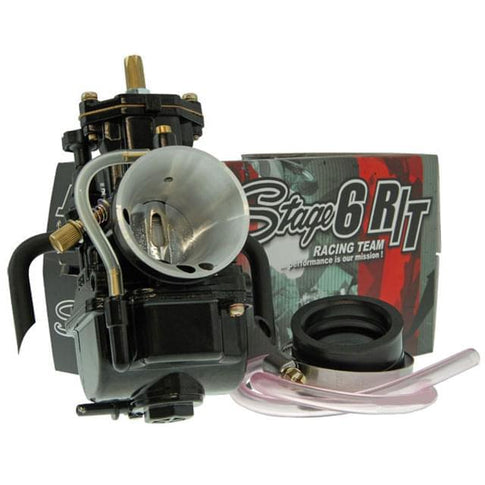

Carburettor type PWK Racing Team MKII Stage 6 R/T

Carburettor Stage 6 R/T MKII type PWK with lever choke.

The Stage6 R/T RACING TEAM carburettor is an exclusive developed by the manufacturer KOSO for the Stage6 RACING TEAM line.
The machined intake optimises airflow and improves the starting of the motorbike.

A compact exterior and a 35mm connection allow for easy installation without compromising its quality. In addition to its excellent technical features, the R/T carburettor stands out for its black RACING design.

The Power Jet system provides an extra supply of petrol at high revolutions, based on a small jet responsible for injecting this extra petrol.

Features

- Intake diameter: 34 / 35mm
- Air filter diameter: 48 / 49 / 50mm
- Choke: Lever
- Oil inlet: No
- Vacuum: Yes
- Main jet:  120 (21mm / 24mm) / 125 (26mm) / 130 (28mm)
- Idle jet: 38
- Powerjet: 30
- Needle: N68E

Attention! Depending on the carburettor diameter, it may not include a powerjet.
