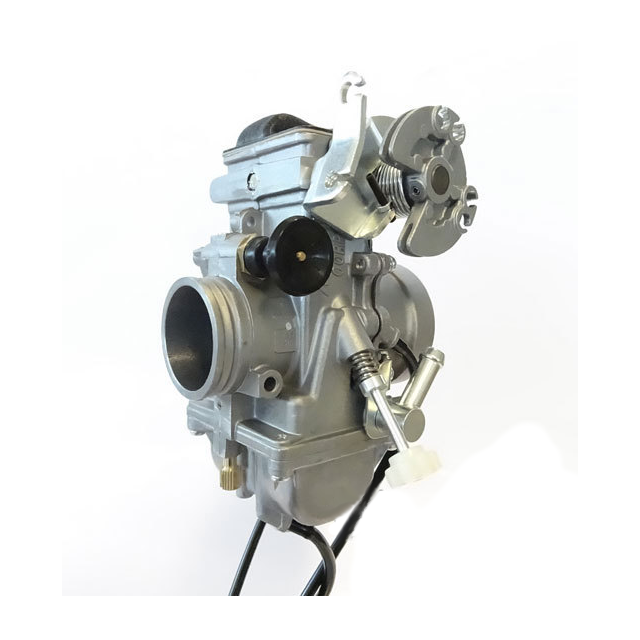

Mikuni TM 36 Flatslide Carburettor

Name: Mikuni TM 36 Flatslide Carburettor
Brand: Mikuni
SKU: TM36-31
Price: 295.0 EUR
Availability: OutOfStock

295,00€

295,00€ ~~349,50€~~ -16%

Product variants

SKU: TM36-31

Sold out

Quantity

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Receive it in 24-48 hours
Free shipping on orders over €119

Description

Carburettor TM36 Flatslide Mikuni flat slide with pump

The easiest way to get more power, no need to make significant modifications to the engine!
A performance improvement of 3 HP and more is possible! Across the entire speed range (since performance depends more on intake and exhaust)
Equipment TM36 / TM40: Carburettor with accelerator pump, throttle slide with positive actuation (opening and closing), cold start device (choke) and low pressure port (for example, for low pressure fuel taps, if applicable)

Specifications
Main jet (high) 135
Pilot jet (low) 17.5
Needle jet (diffuser) P-6 (568 )
Needle 9DZH5-50-3
Starter jet 42.5
Pilot air jet 0.8
Air mixture screw 0.5 turns
Accelerator pump nozzle 0.30
Float height 19 mm
Starter position Lever on the left
Idle screw position Left
Air mixture screw position Left
Outer diameter (cylinder side) 42 mm
Outer diameter (airbox side) 55 mm
Fuel inlet Left

Does not include breather tubes.
