CDI unit unrestricted with Stage6 remote control Rieju / Beta / Sherco (Moric)

Stage6 CDI unit with remote-selectable limiter for 50cc motorcycles with Moric ignition, compatible with different models of Rieju, Beta, Sherco, Yamaha, MBK, and HM.

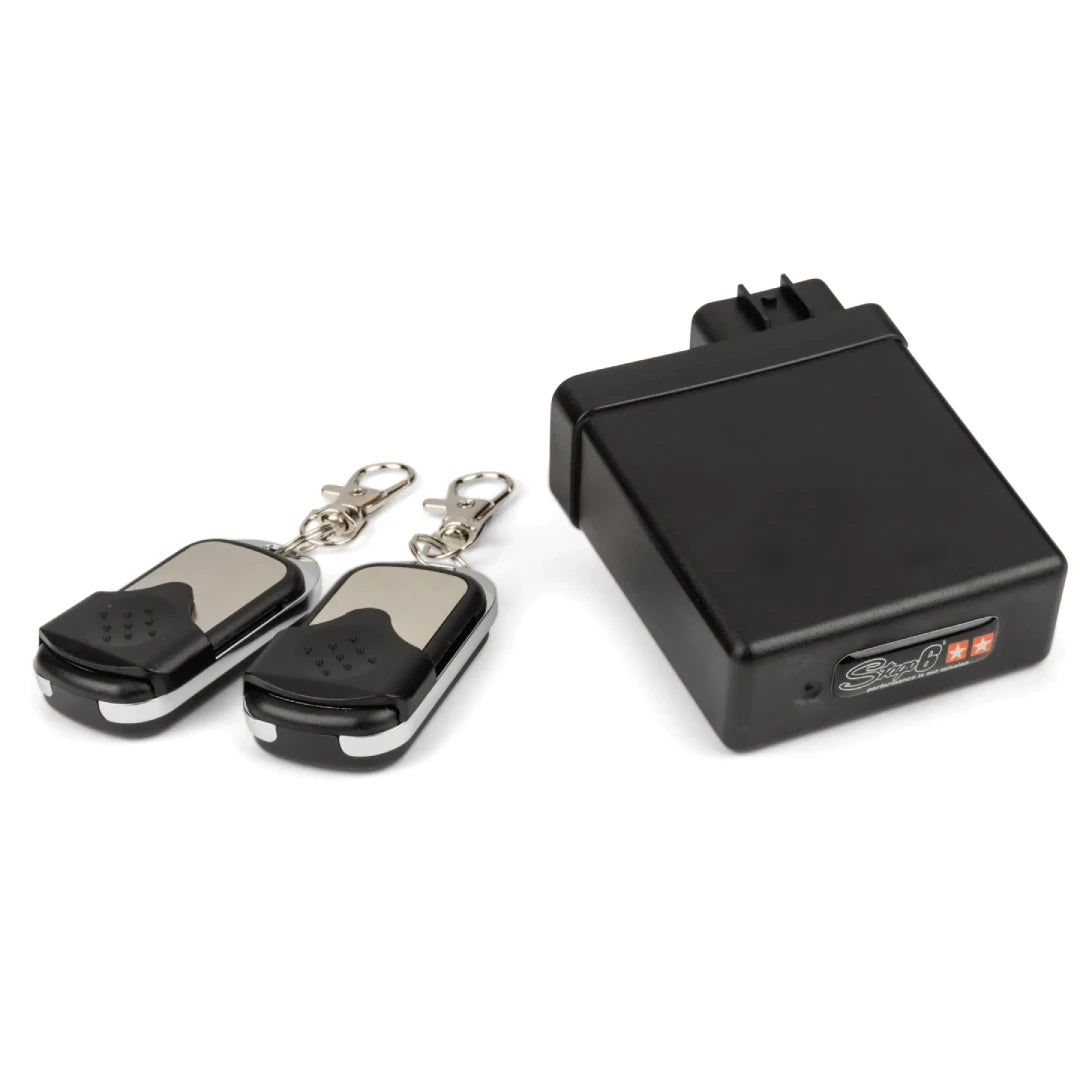

Unlike a conventional unrestricted CDI unit, this control unit allows you to change the engine RPM range remotely. It includes 2 remote controls with which you can select between four different modes, from strong RPM limiting to a mode with virtually no limitation.

It is an especially interesting solution for a modified motorcycle with a performance exhaust, higher-performance cylinder, or other modifications, as it allows you to take advantage of a higher RPM range when you need it and select a lower range at other times, such as when passing the roadworthiness inspection.

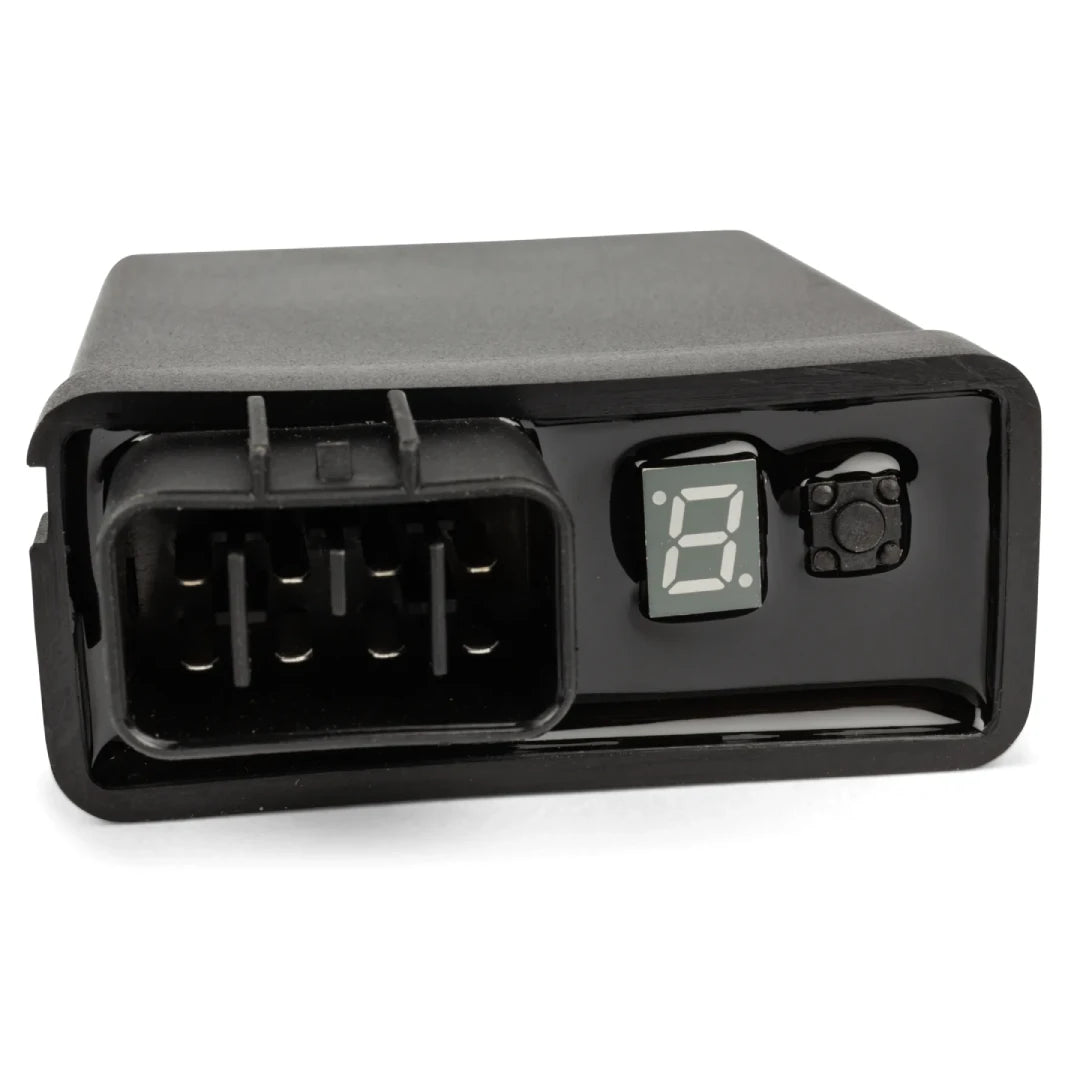

The Stage6 CDI unit includes a small indicator showing the selected mode and a synchronization button to pair the control unit with one or more remote controls.

4 operating modes

• Mode A: limited to 4,000 rpm.
• Mode B: limited to 7,000 rpm.
• Mode C: limited to 8,000 rpm.
• Mode D: up to 16,000 rpm, a mode with no practical limitation for this type of engine.

Mode A can be used as an anti-theft function, since with the engine limited to 4,000 rpm the motorcycle becomes practically unusable for normal riding.

What will you achieve?

• Select the RPM limit from the remote control.
• Remove the limitation of the original CDI unit when the setup needs to rev higher.
• Make better use of a Sport / Racing exhaust.
• Combine it with a sport or higher-performance cylinder.
• Have several operating modes without having to change the control unit.
• Use the 4,000 rpm mode as an anti-theft function.

Plug & Play installation

Installation is simple: you only need to disconnect the original CDI unit and connect the Stage6 in its place. It uses an 8-pin connector and is designed for motorcycles equipped with a compatible Moric ignition system.

Features

• Brand: Stage6.
• Product: CDI unit / ignition control unit.
• Type: selectable limiter / derestrictor.
• Ignition system: Moric.
• Connector: 8 pins.
• Remote controls included: 2 units.
• Modes: 4,000 / 7,000 / 8,000 / 16,000 rpm.
• Installation: Plug & Play.
• Application: 50cc motorcycles.
• OEM Rieju: 0/005.705.3880.

Compatible models

BETA

• RR 50 2013-2017

HM

• Baja 50
• CRM 50
• Derapage 50
• HM 50

MBK

• X-Power 50 2003-2006

RIEJU

• MRT 50 2012-2017
• RS3 50

SHERCO

• HRD 50

YAMAHA

• TZR 50 2003-2006

Important: after removing or modifying the RPM limit, it is advisable to check the carburetion and engine tuning. A different exhaust or cylinder may require changes to the main jet and other adjustments so that the engine runs correctly and does not run lean.

Attention: before placing the order, check that your motorcycle actually uses a Moric ignition with a compatible 8-pin connector. Compatibility depends on the installed ignition system.
