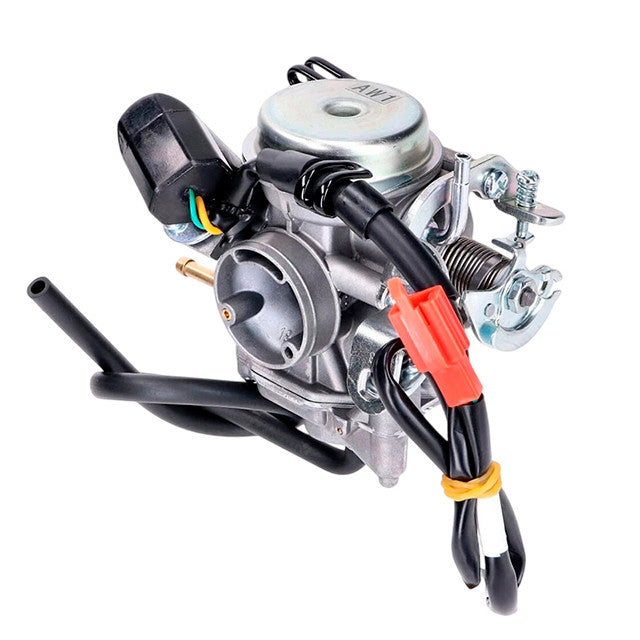

Carburettor 18G type TKSB SYM E4 Dellorto

Carburettor TKSVB 18G from the manufacturer Dellorto

Dellorto offers its carburettor specially designed for modern scooters of 50 cc and 4T engines under the Euro4 standard.

This carburettor is optimised to ensure a correct air-fuel mixture, maintaining a balance between the pressures of the carburettor and the diaphragm, which is crucial for engine efficiency. In addition, it helps to comply with the strict Euro4 emission requirements, providing adequate performance without compromising the reduction of pollutant gases.

Technical specifications:

• Main jet: 80
• Pilot jet: 35
• Intake manifold diameter: 38 mm
• Air filter manifold diameter: 29 mm
• Venturi: 18
• For engine: 4T
• Mounting type: Flexible
• Starter motor: Automatic
• European standard: Euro 4

Compatible with:

Peugeot

• PEUGEOT TWEET 50 4T ACTIVE 2018-2020
• PEUGEOT TWEET 50 4T ALLURE 2018
• PEUGEOT TWEET 50 4T E4 2018-2019
• PEUGEOT TWEET 50 4T EVO 2017-2019
• PEUGEOT TWEET 50 4T PRO E4 2017-2018
• PEUGEOT TWEET 50 4T RS 2017-2018

SYM

• SYM FIDDLE II 50 4T 2018-2019
• SYM FIDDLE III 50 4T E3 2017
• SYM FIDDLE III 50 4T E4 2017-2020

OEM: Peugeot 804087, SYM 16100-Z6M-000
