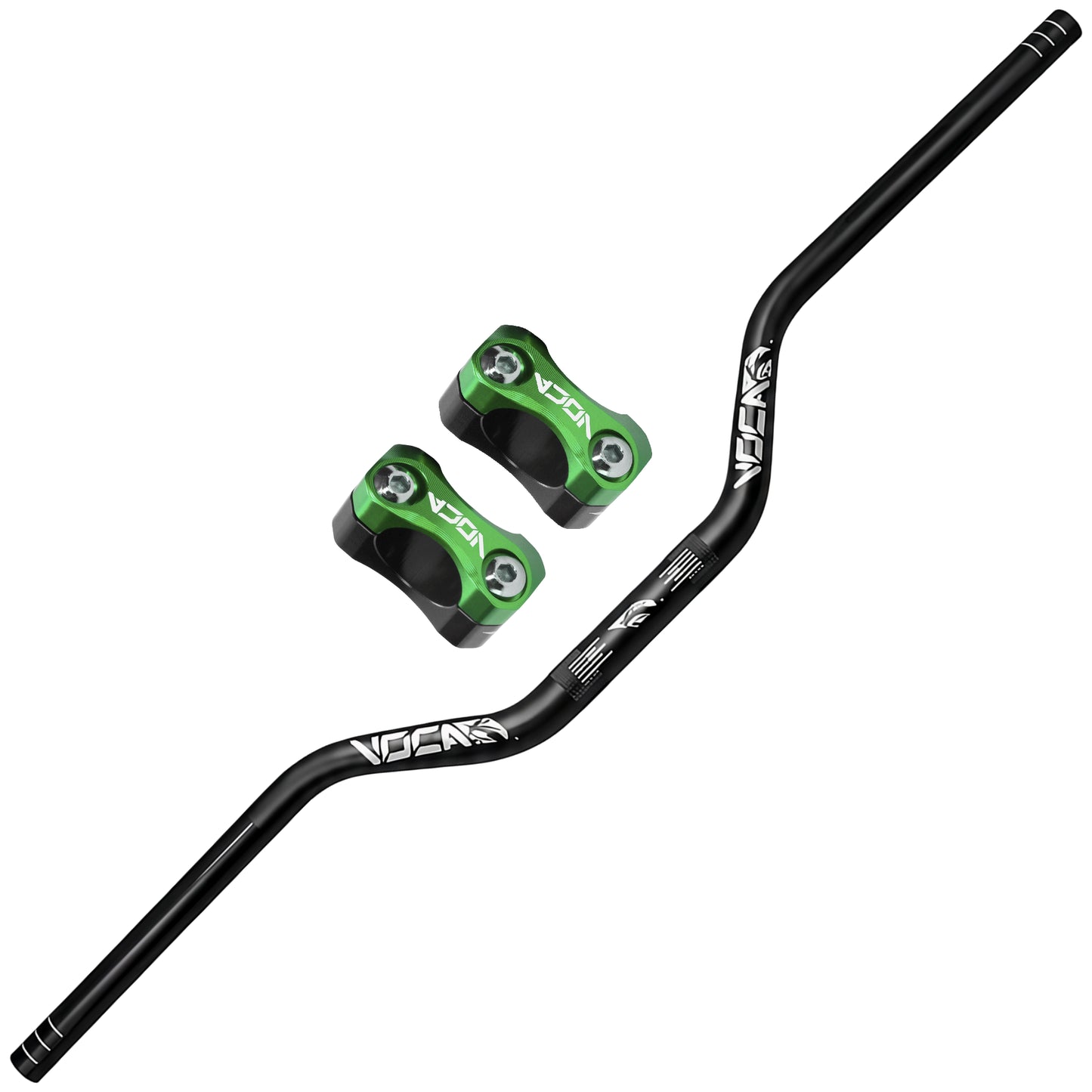

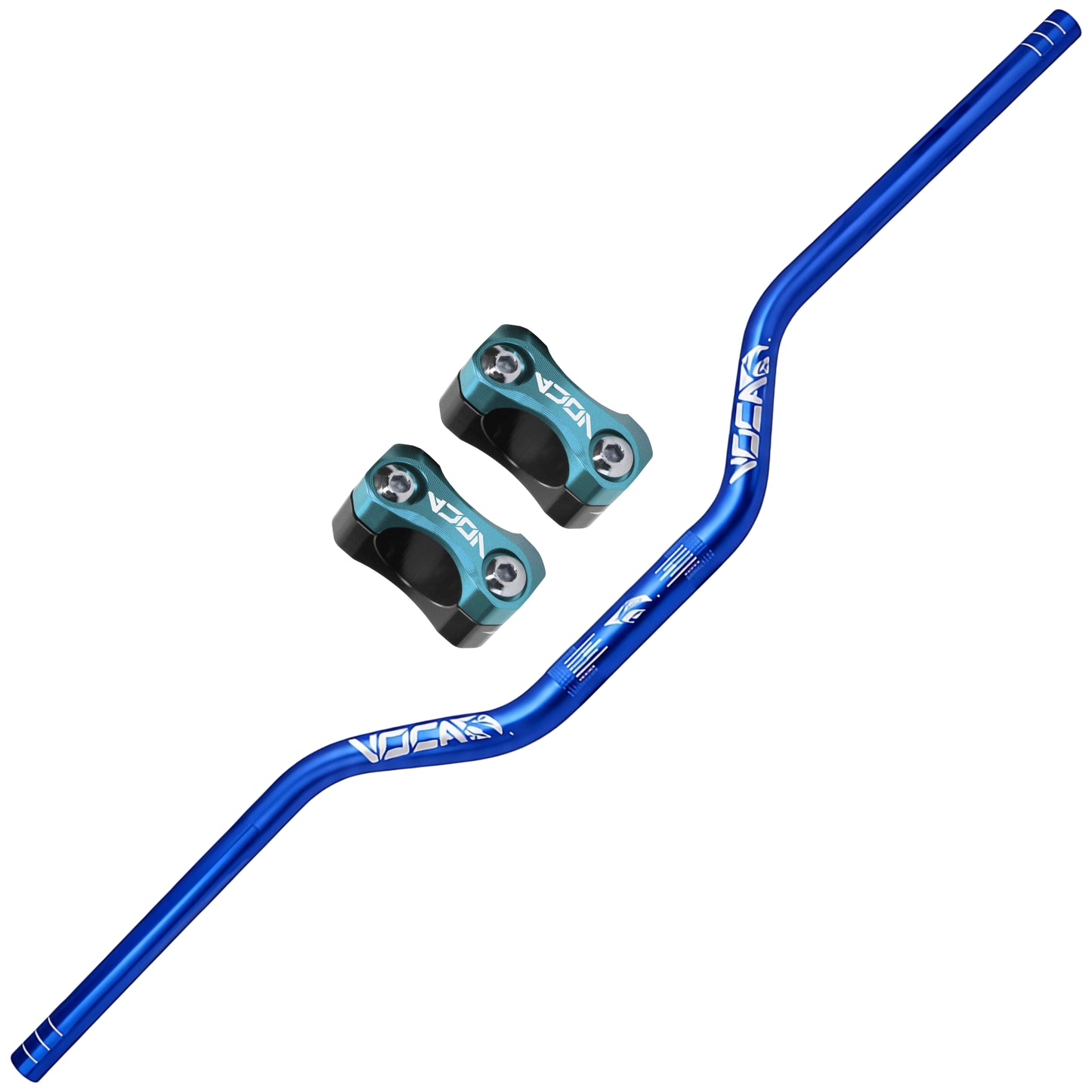

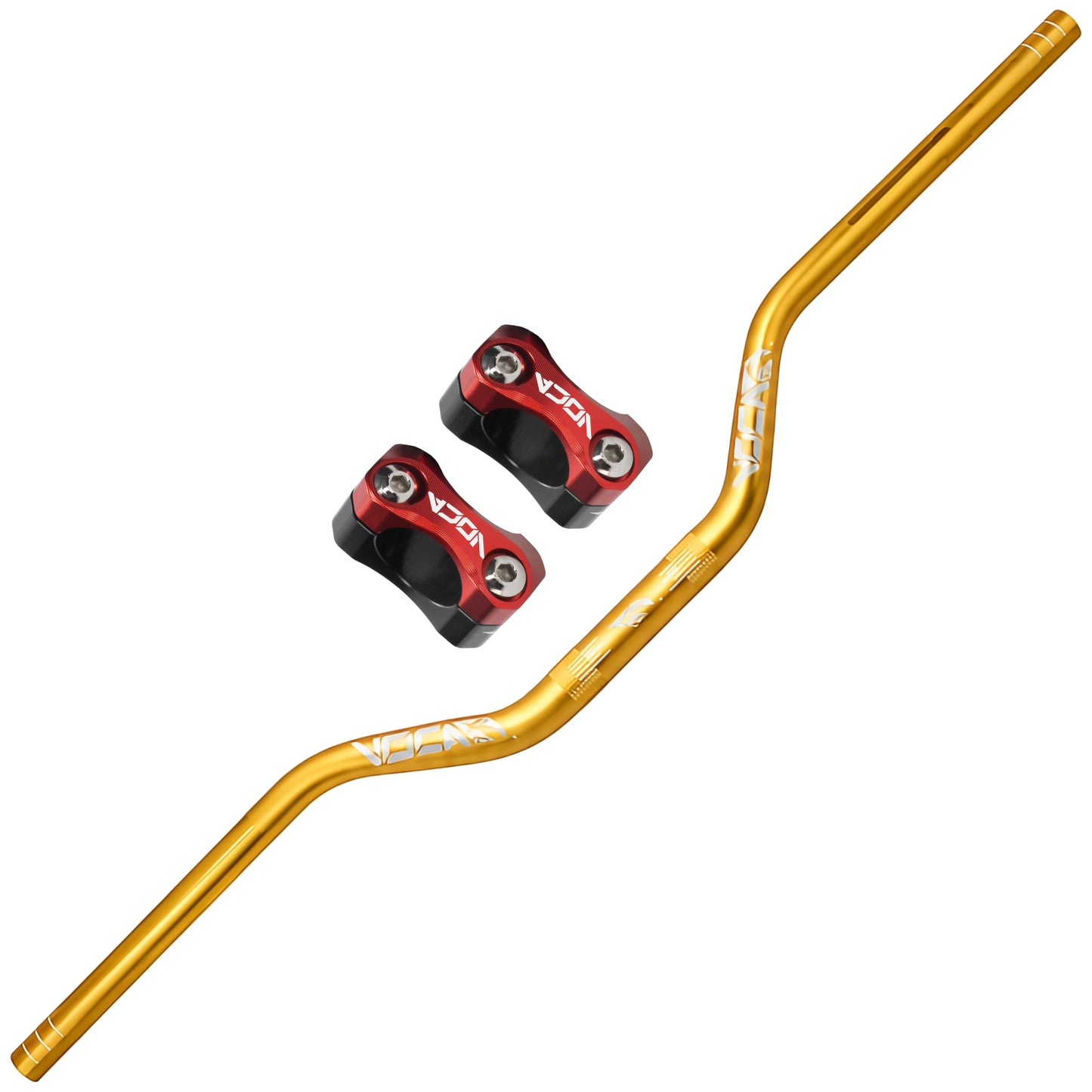

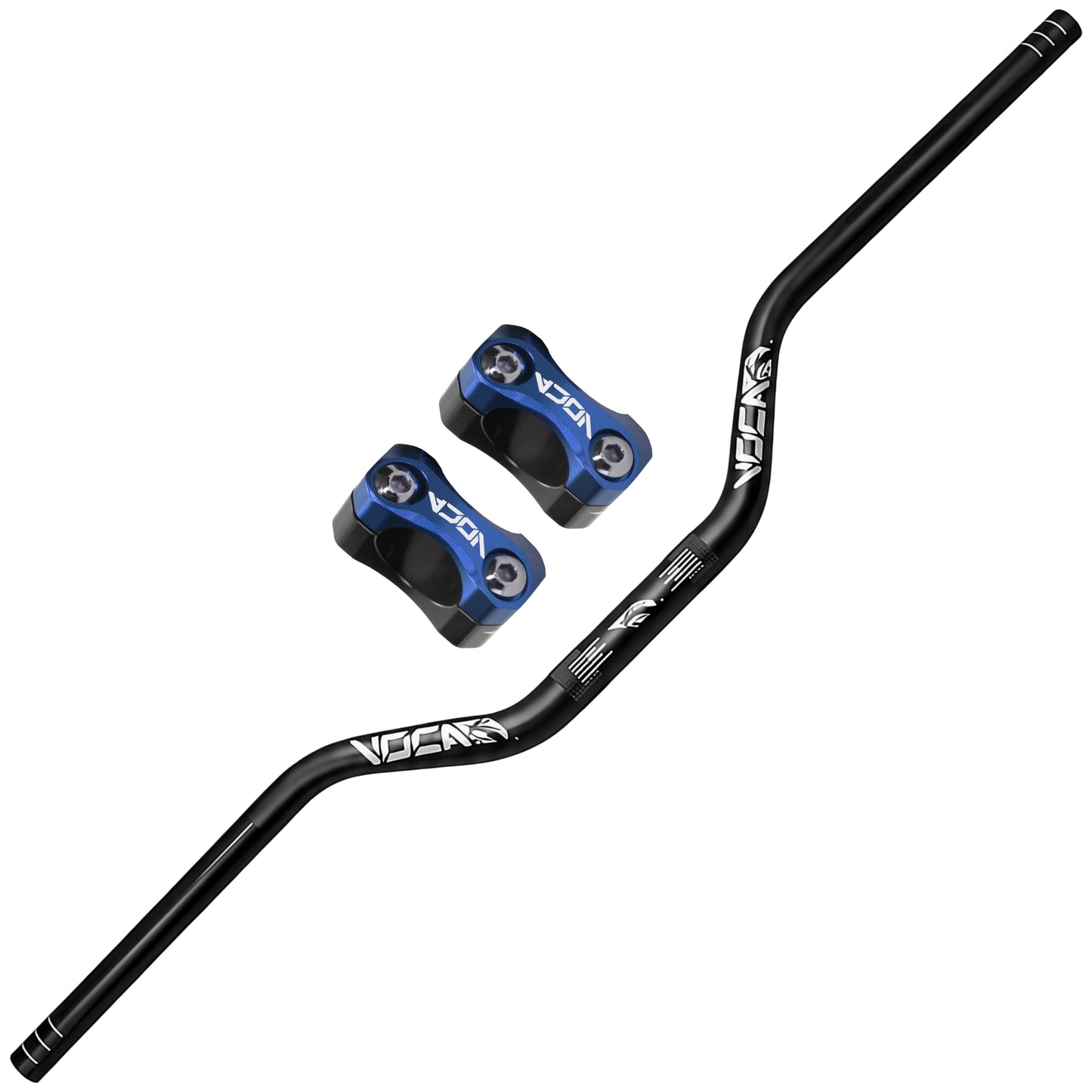

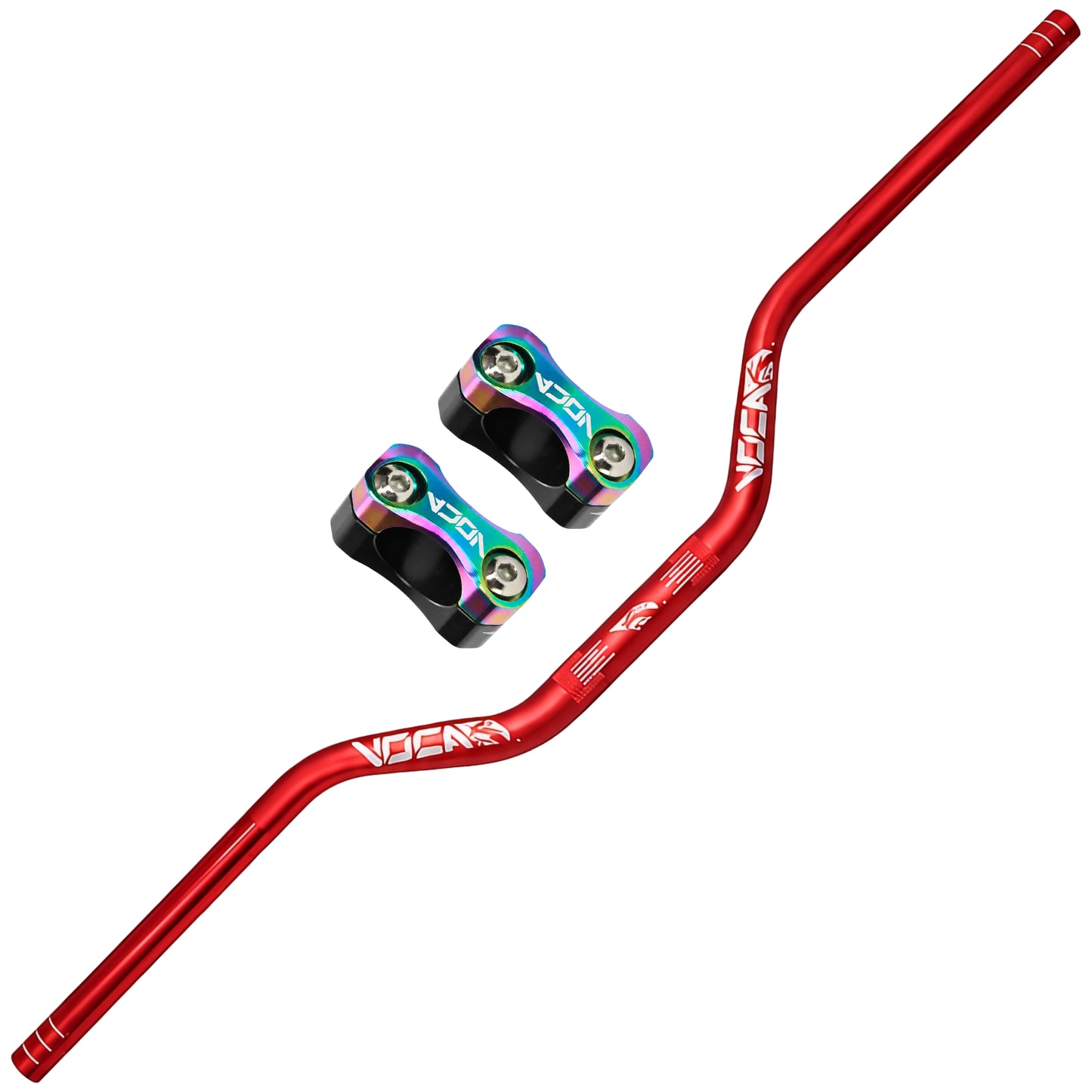

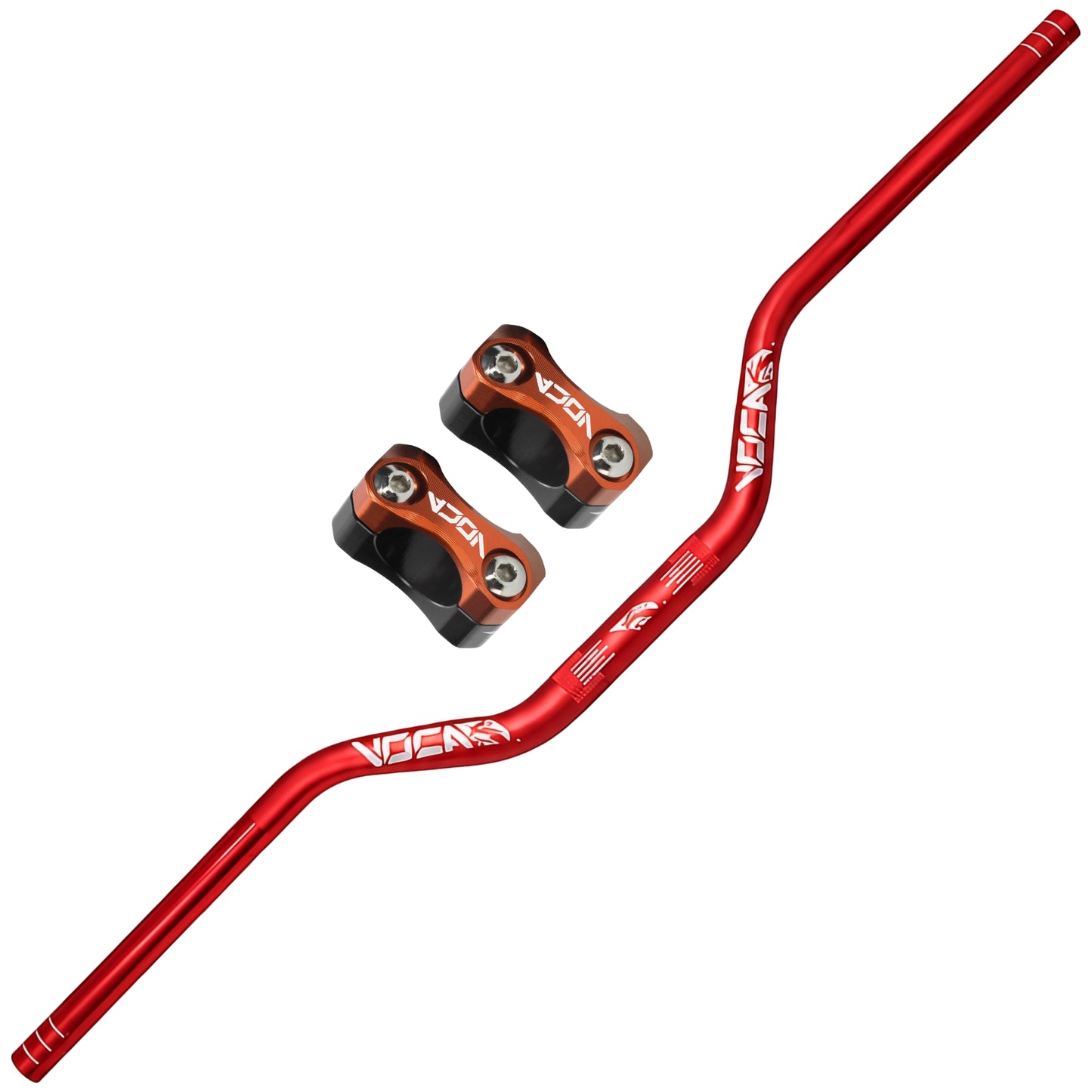

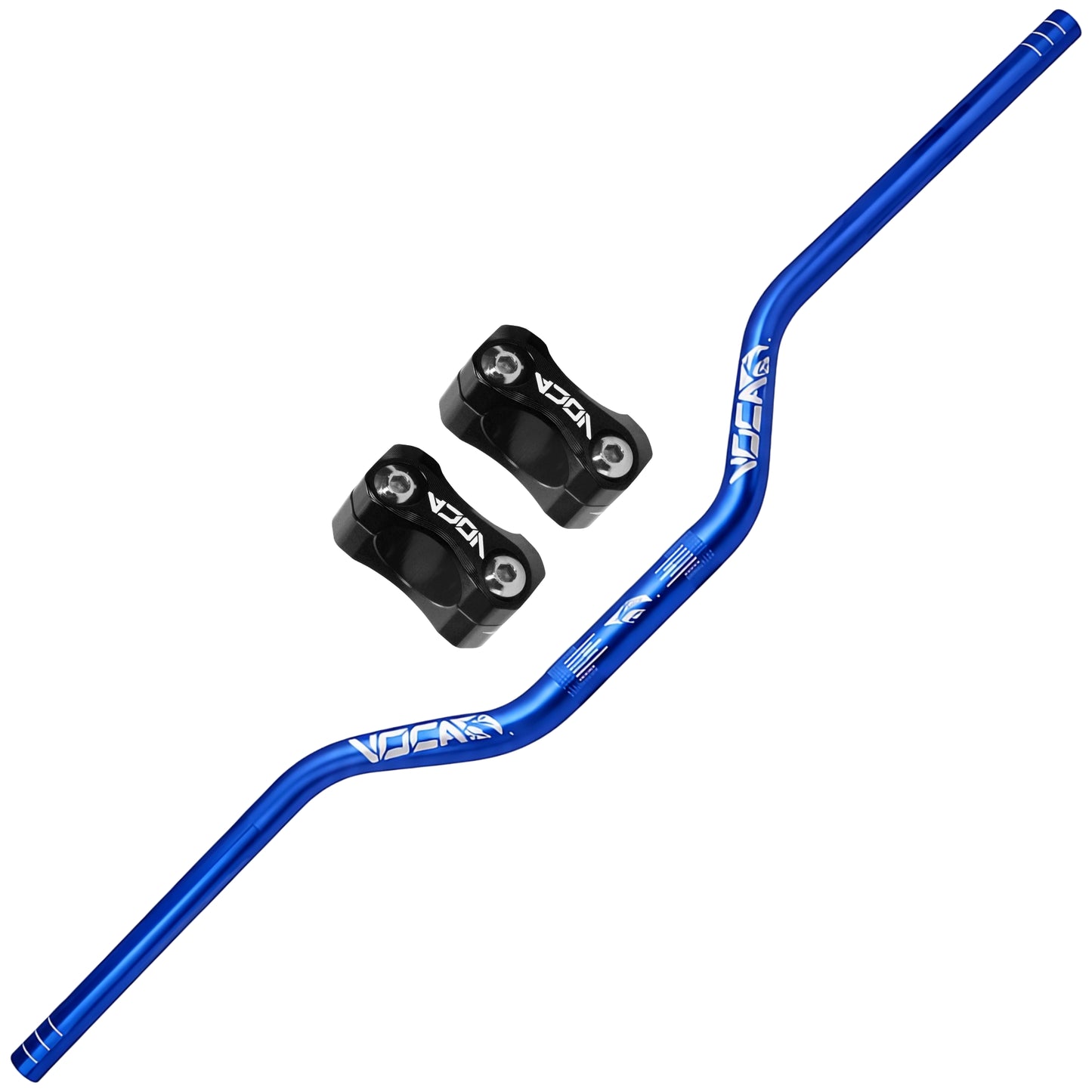

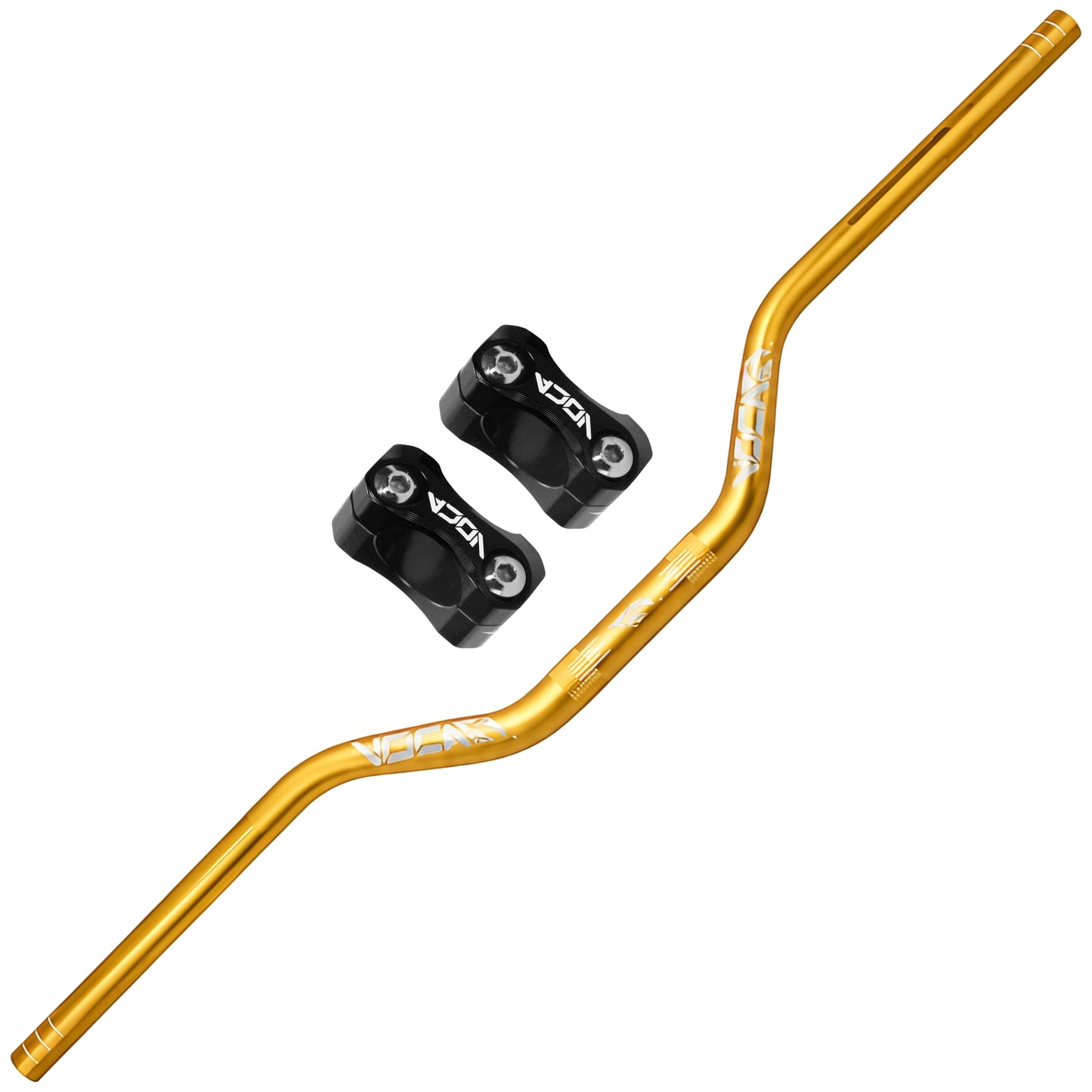

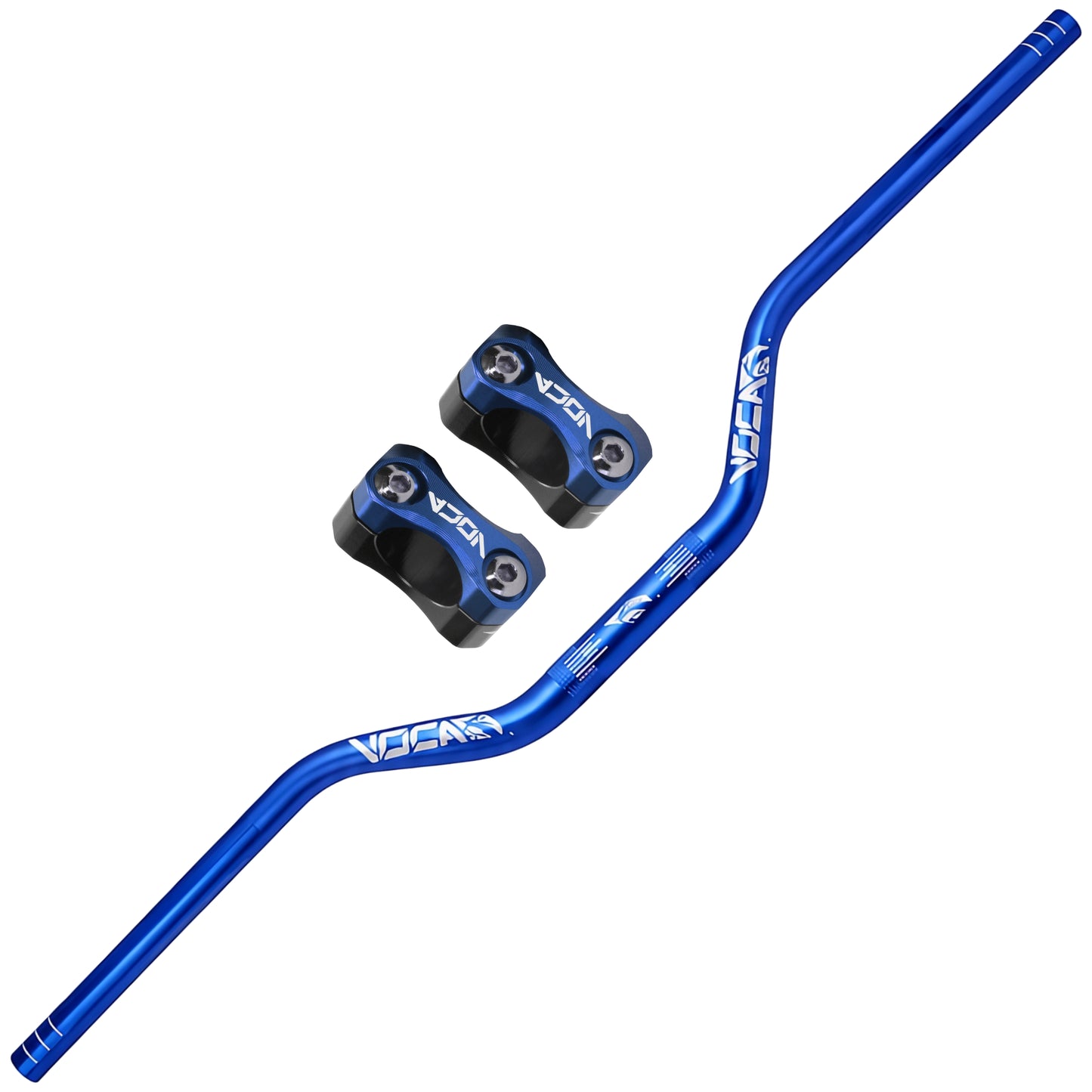

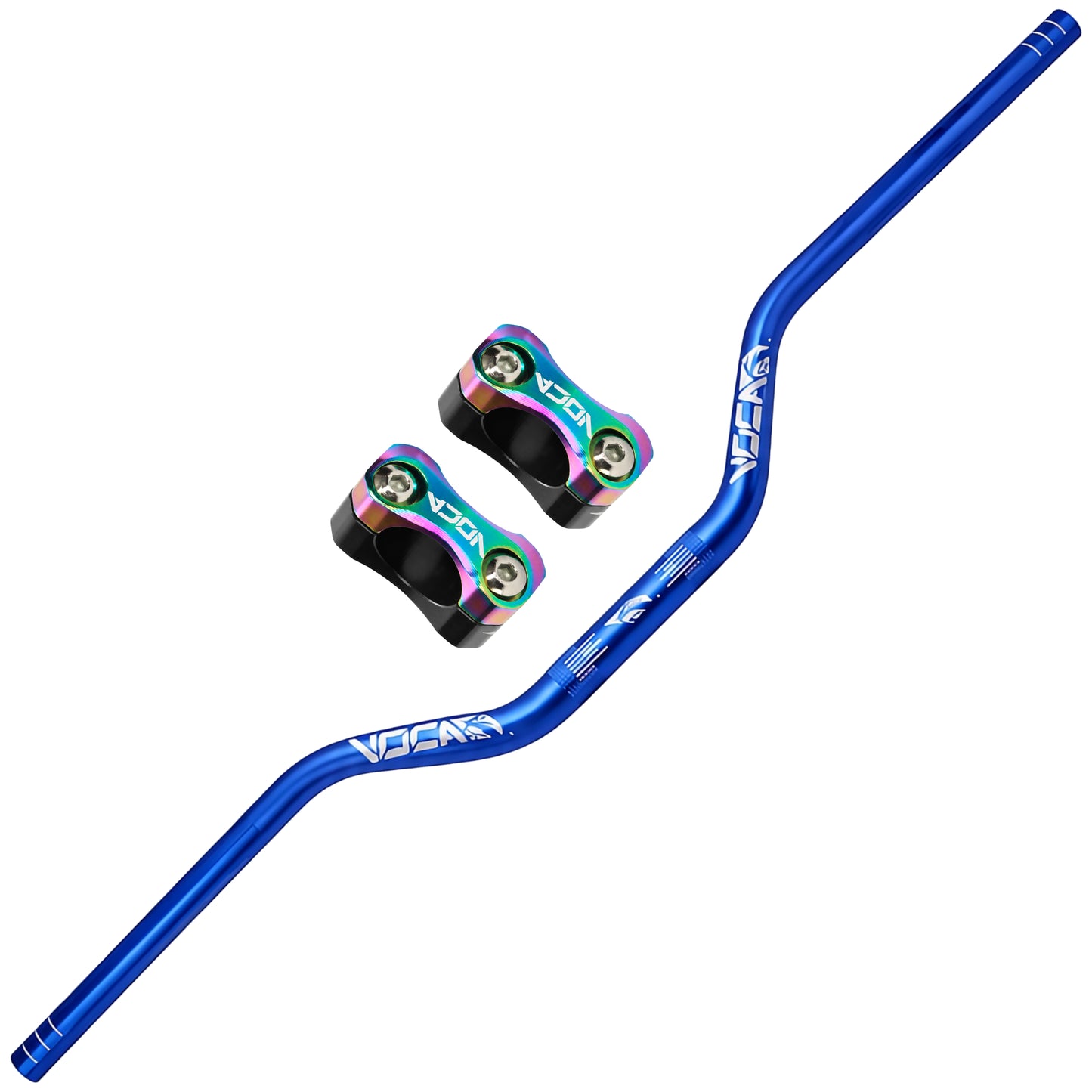

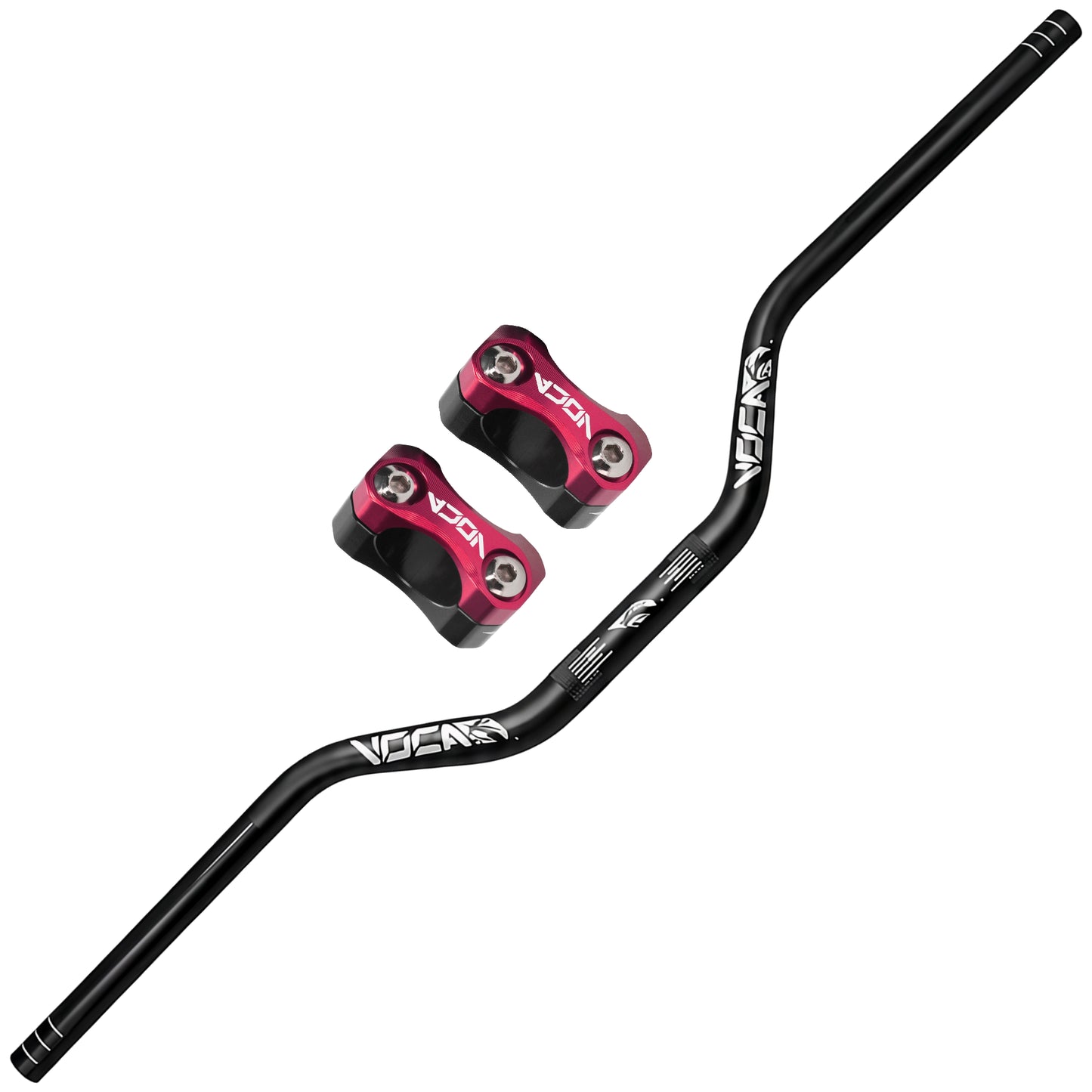

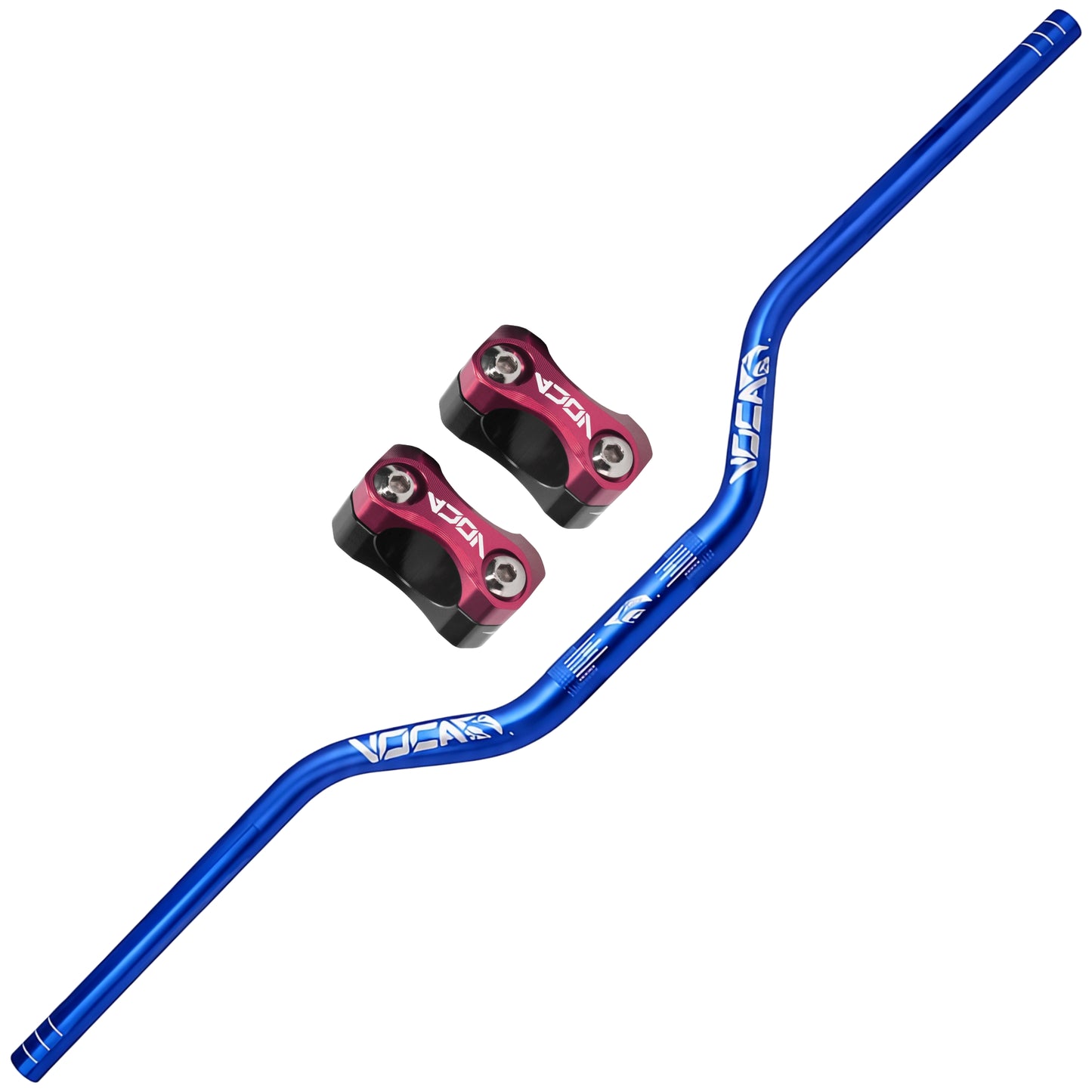

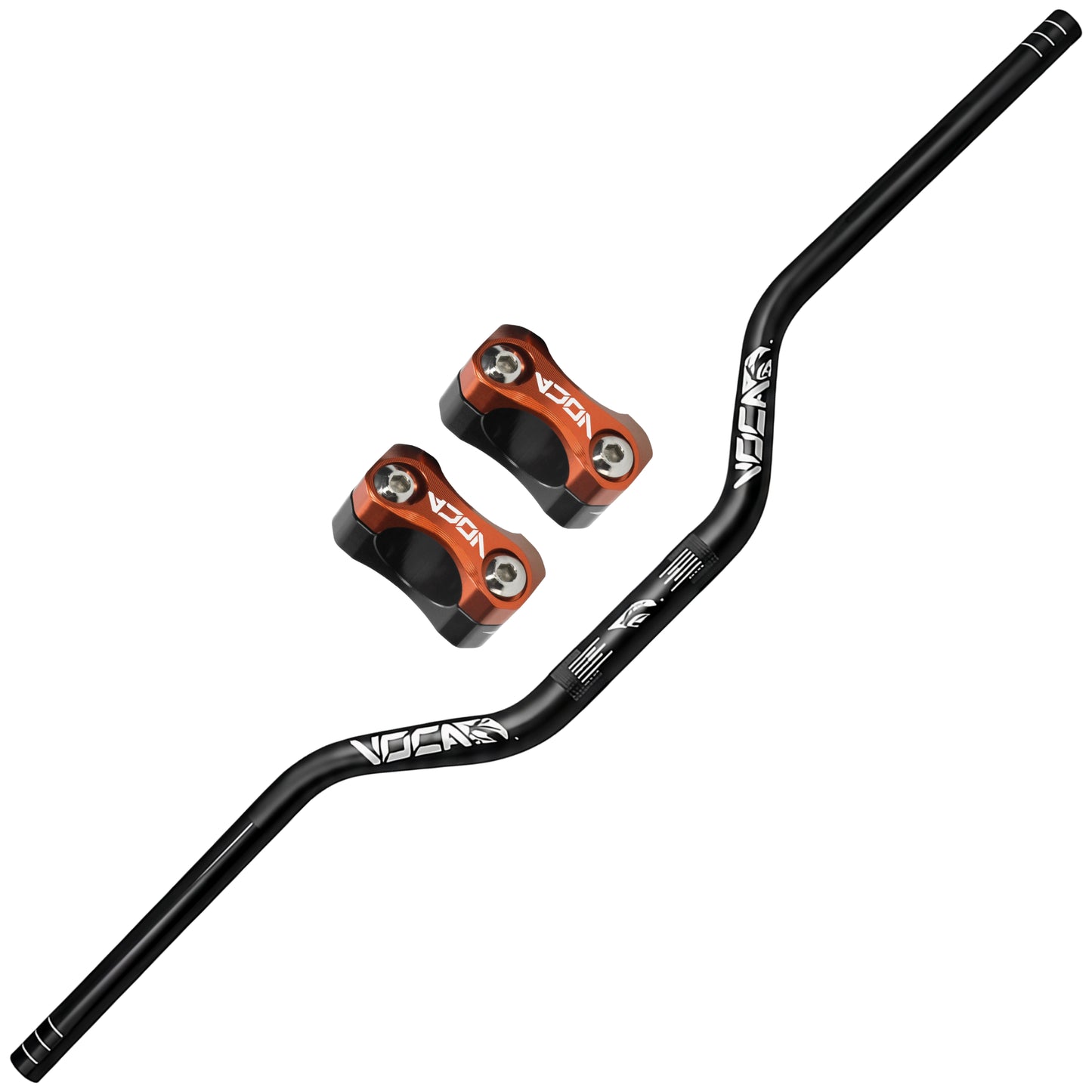

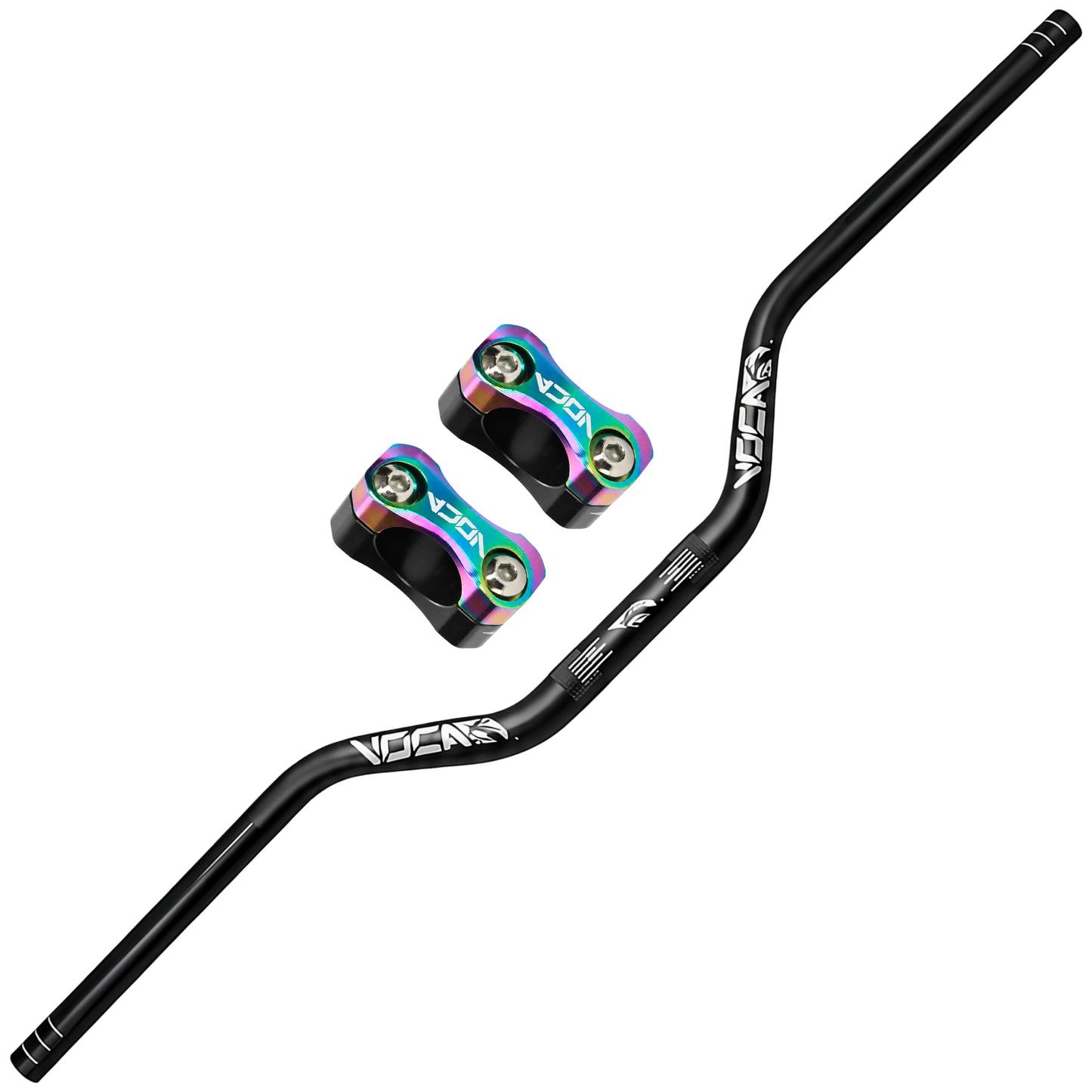

Handlebar kit HB28 and VOCA Racing CNC triple clamps

Voca Racing kit consisting of a HB28 handlebar and handlebar risers, designed for mopeds and geared motorcycles that require a Ø28.6 mm handlebar. This set offers strength, lightness, and a high-quality finish, guaranteeing precision and comfort while riding.

The Voca HB28 Ø28.6 handlebar is made from a T6 aluminum alloy with a 5 mm thickness, combining rigidity and lightness. Its total length is 805 mm, with cutting lines at both ends that allow it to be easily adjusted to 795 mm or 785 mm as needed. The height from the center of the risers to the ends is 94 mm, offering an ergonomic position for all geared mopeds and motorcycles with Ø28.6 risers.

The handlebar features laser markings in the central area for adjusting the exact position, as well as engraved Voca logos. The aluminum finish is shot-blasted for a matte effect, while keeping the ends polished for optimal throttle tube sliding. The left grip area is knurled for secure grip retention.

Handlebar measurements

• A: 805 mm
• B: 180 mm
• C: 94 mm
• D: 70 mm
• E: 25º
• Inner diameter: 14 mm

The kit includes Voca VCR-SD960.V2 Ø28.6 mm CNC risers, which allow a larger-diameter handlebar to be installed on motorcycles with a Ø22 mm mounting point, providing compatibility and an attractive aesthetic finish. Made from high-quality aluminum, they combine lightness and rigidity, offering a more aggressive look without compromising reliability. Two universal risers with M8 screws are included, with adjustable center-to-center spacing from 34.80 mm to 32.20 mm.

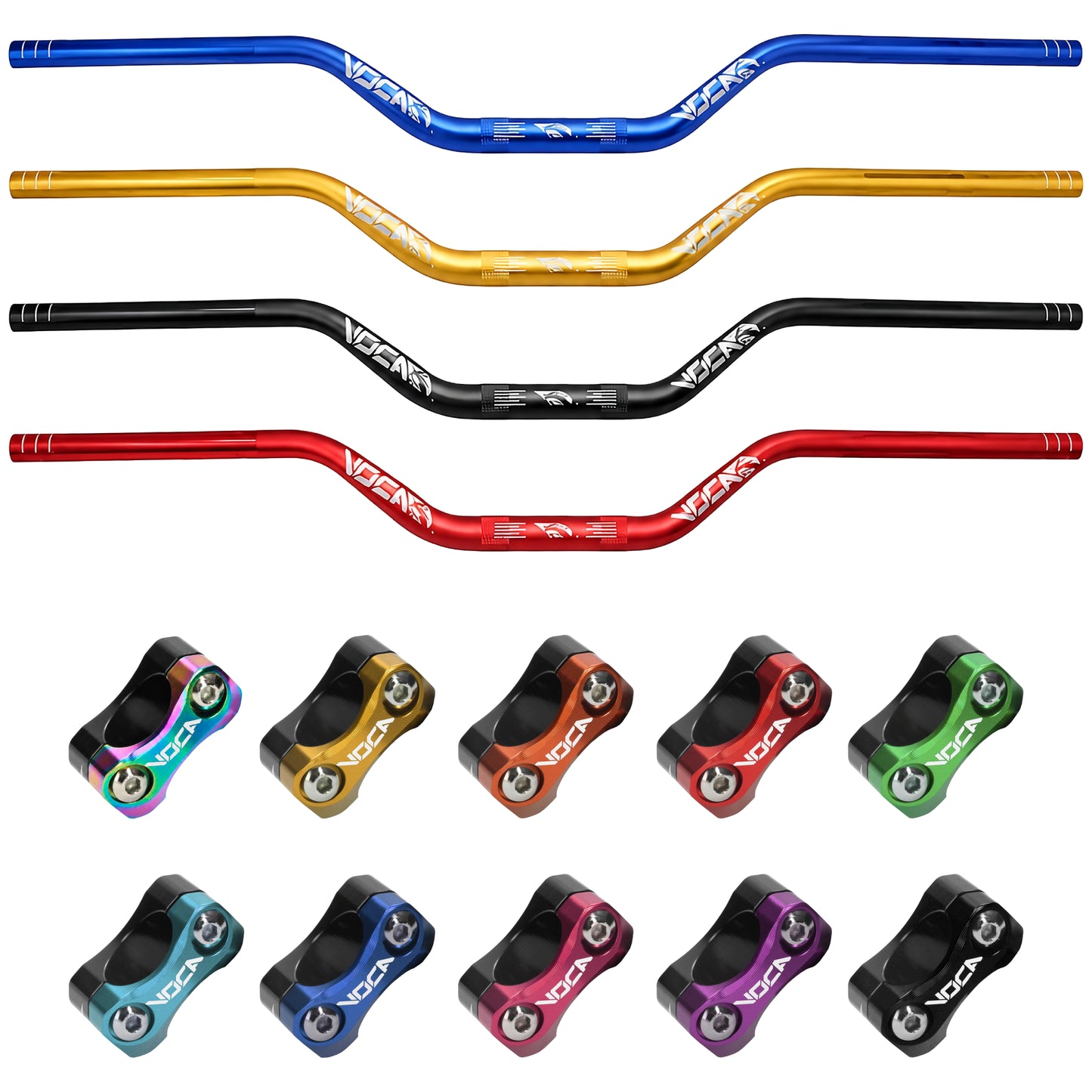

Available colors

• Blue
• Cyan Blue
• Orange
• Black
• Neo-chrome
• Gold
• Red
• Pink
• Green
• Violet

Application

Kit adaptable to most geared mopeds and motorcycles with original Ø22 mm risers, including models such as the Rieju MRT PRO. It is important to check the center-to-center distance of the screws on new models to ensure compatibility before installation.

Main features

• Voca HB28 Ø28.6 handlebar with laser markings and Voca logos
• Manufactured from 5 mm thick T6 aluminum
• Shot-blasted finish with polished ends and knurled left-side area.
• VCR-SD960.V2 Ø28.6 mm CNC risers, universal and lightweight
• M8 screws, center-to-center spacing from 34.80 to 32.20 mm
• Possibility of adjusting the handlebar length to 795 or 785 mm
• Available in multiple colors for aesthetic customization.
• Compatibility with most geared mopeds and motorcycles with Ø22 mm risers through adaptation.

Important

Before installation, check the compatibility of the screw center-to-center distance on recent models, especially the Rieju MRT PRO, to ensure safe and correct fitting.
