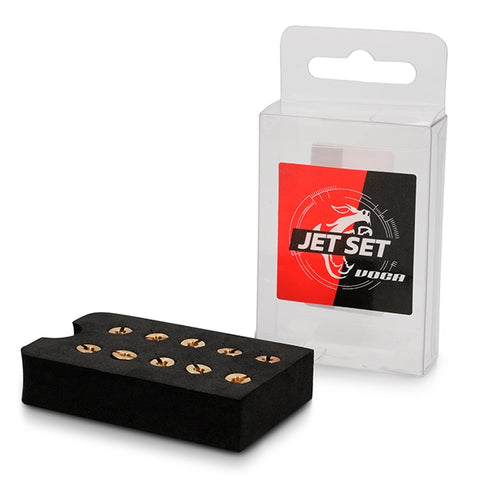

Dell'Orto 5mm Voca chewing gum kit

Kit of 5mm jets from the manufacturer Voca for Dellorto carburetors.

The 5mm jets are compatible with any Dellorto carburetor with a diameter between 19 and 21mm.

Application by carburetor:

• PHBG: Main Jets
• PHBL: Idle Jet
• PHBH: Idle Jet
• PHBE: Idle Jet
• VHSB: Idle Jet
• VHSA: Idle Jet
• SHBC: Main Jet
• SHA

Available kits:

• From 50 to 72. --> 50/52/55/58/60/62/65/68/70/72

• From 75 to 98. --> 75/78/80/82/85/88/90/92/95/98

• From 100 to 122. --> 100/102/105/108/110/112/115/118/120/122

Carburetor adjustment tip:

To start, we need to keep the bike idling for about 3 minutes so it reaches temperature. Once the bike is warm, we take it and give it full throttle for a few seconds, hold it at maximum RPM for about 5 seconds without releasing the throttle, turn off the bike with the key, and proceed to remove the spark plug. Depending on the color of the spark plug, we can determine its condition, for example:

• If the spark plug is a light coffee with milk color, the bike is running lean; you need to increase the main jet by about 5 or 10 points.
• And if the spark plug is only brown, it's running rich, so you need to lower the main jet by about 5 or 10 points.
