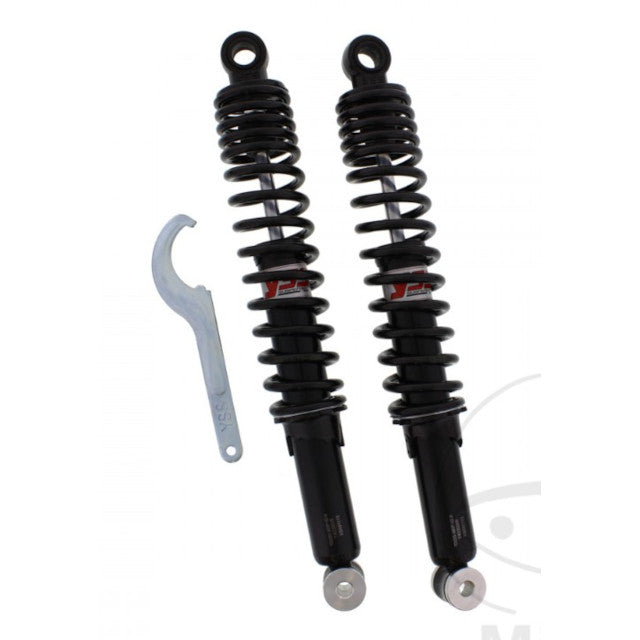

Kit shock absorbers Piaggio X-Evo / X7 / X8 125-250 YSS Eco line

Shock absorber kit Eco Line from manufacturer YSS for Piaggio X-Evo / X7 / X8 125-250.

Without a doubt, if you want to improve the handling of your motorcycle, this is the ideal component. It is adjustable in load, providing greater performance on the road.

• Adjustable spring screw or thread preload. By screwing the cylindrical shock absorbers, the user can turn the preload to fine-tune the spring and tighten a supplied bolt to fix the ring in position.

Features

• Type: Oil pressure
• Upper mounting: Eye
• Inner eye diameter: 10 mm
• Length: 360 mm
• Lower axle mounting: Eye
• Inner eye diameter: 10 mm
• Adjustments: Spring preload
• Spring color: black
• Spring characteristic: 13-18
• Spring length: 220 mm
• Spring diameter: 38/40 mm
• Compensation reservoir: no
• Piston diameter: 22 mm
• Piston rod diameter: 10 mm

Compatible models

PIAGGIO

• X7 125 2008-2008
• X7 125 ie Evo 2009-2014
• X7 250 ie 2008-2010
• X8 125 2004-2007
• X8 200 2004-2005
• X8 250 ie 2006-2008
• X8 400 ie 2007-2008
• XEvo 125 2007-2016
• XEvo 250 ie 2007-2016
• XEvo 400 ie 2007-2012

Assembly instructions
