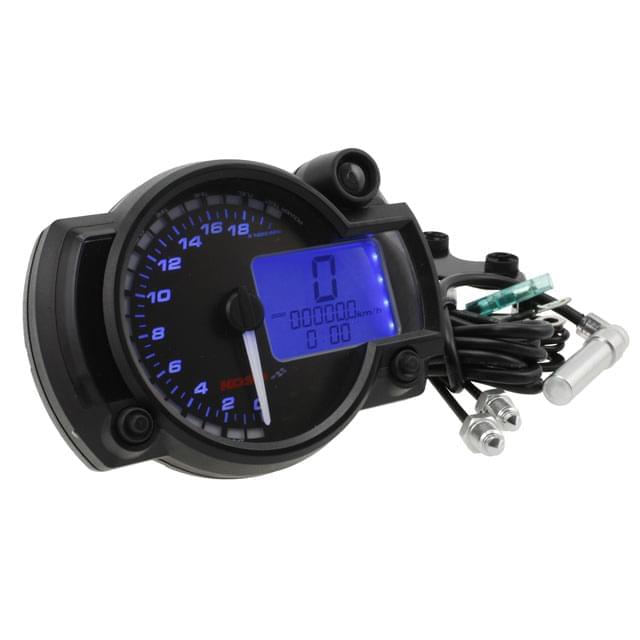

Multi-function indicator RX2N+ 20000RPM Koso black-blue

From the manufacturer KOSO digital we offer a wide variety of gauges, adaptable to scooters and large motorcycles.
As a new feature, we present to you the new king of Koso digital gauges, the RX2N in GP style.
The illuminated display stands out for its large tachometer and a screen that shows speed, fuel, temperature, kilometers, and much more.
We have two RX2N gauges available: the first has a scale up to 10,000 RPM, the second indicates up to 20,000 RPM. The complete kit comes with all the necessary mounts and receivers.
To measure temperature, it includes a sensor for the cylinder head with PT-1/8 thread (Minarelli hor.LC). For large motorcycles, we recommend installing a temperature sensor that is placed in the coolant tube, available with a diameter of 14-26mm.
The RX2N can be installed on both 4-stroke and 2-stroke engines.
Attention! Check the type of plug carefully when ordering spare parts. The BA015B15 already comes with the new plugs!

Dimensions: width 13.6cm x height 10cm. Koso digital RX2N gauge (0-20,000 RPM)

Specifications:
Odometer up to 360 km/h (or 223 mph)
RPM up to 20,000
Adjustable maximum speed warning light (30-180 km/h)
Adjustable maximum RPM warning light. (0-10,000 - 20,000 RPM)
Water temperature indicator with programmable maximum temperature warning (60-120ºC) (adapter kit may be required)
Oil temperature indicator. (Adapter kit required)
Fuel level indicator 100 ohms or 510 ohms.
Automatic recording of: maximum speed reached, RPMs, and temperature.
Clock.
Indicators: Turn signals · High beam · Neutral · Oil pressure · FI
Odometer up to 99,999km. Trip meters A and B
AVAILABLE IN 2 VERSIONS 10,000 AND 20,000 RPM

Includes:
Universal main installation wiring
RPM pickup accessory (2)
Temperature sensor cable (2)
Temperature sensor (2)

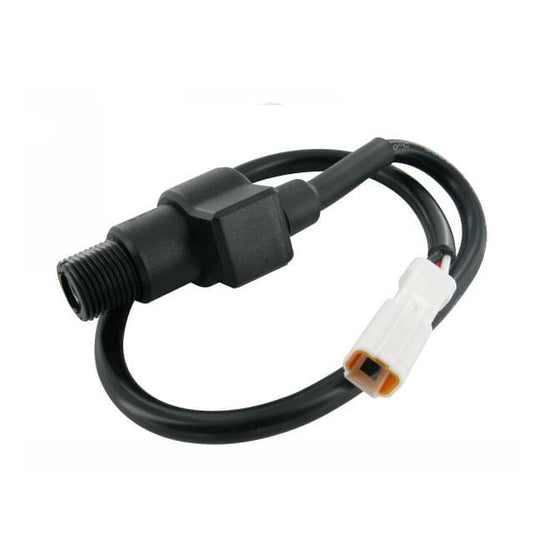

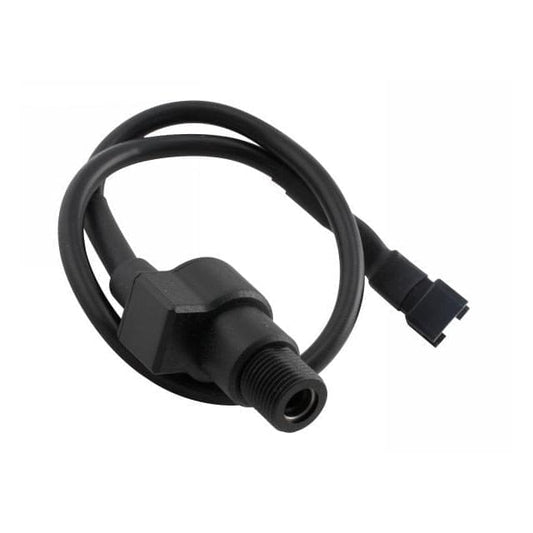

Speed pickup accessory. (ACTIVE digital sensor (no need to install magnets))
Mounts, connectors, screws, Allen keys, etc.
Instruction manual in English
