Malaguti 50 Morini S5 Newfren Clutch

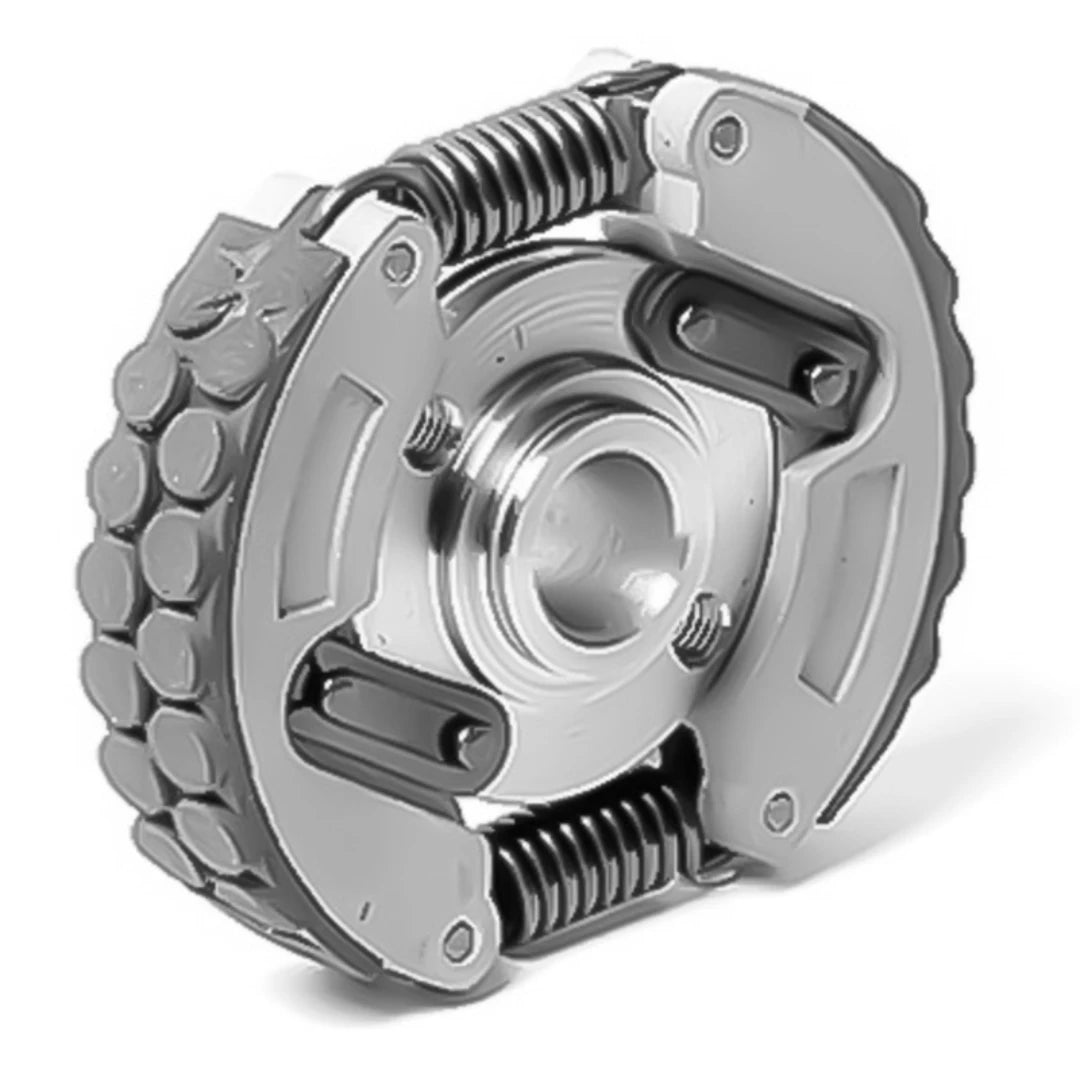

Newfren centrifugal clutch for Malaguti 50 with Morini S5 engine, intended to replace the original assembly when the shoes begin to lose friction material or the clutch no longer engages correctly.

In this type of transmission, the clutch operates by centrifugal force. As RPM increases, the shoes move outward until they contact the clutch bell and transmit engine torque to the final transmission. When the friction lining is worn, glazed, or contaminated, the friction coefficient decreases and symptoms such as slipping, increased engagement speed, jerking, or loss of acceleration on take-off appear.

Replacing the clutch restores an effective friction surface and re-establishes cleaner engagement between the shoes and the clutch bell. This improves torque transfer at take-off and prevents part of the engine's energy from being lost in the form of slippage and heat.

It is also important to check the condition of the clutch bell. If it shows bluish areas caused by excessive temperature, grooves, or an excessively polished surface, it may compromise operation even when a new clutch is fitted.

When should it be replaced?

• When the engine revs up but the motorcycle is slow to move off.
• If jerking or vibrations appear during engagement.
• When the clutch begins to engage at a different speed than usual.
• If the shoes show worn, glazed, or contaminated friction lining.
• After overheating that has damaged the friction surfaces.

Features:

• Type: centrifugal clutch.
• Manufacturer: Newfren.
• Application for Malaguti 50.
• Compatible with Morini S5 engine.
• Replacement part to restore engagement and torque transmission.
• Suitable for replacing clutches with wear, slipping, or irregular operation.

Compatible models

MALAGUTI

• CENTRO 50 4-Stroke 1993–2013
• CENTRO 50 BASE 1993–1994
• CENTRO 50 SL 1993–1994
• CROSSER 50 CR1 1993–1994
• F10 50 AC 1992–1994
• F12 PHANTOM 50 AC 1994–1994
• F12 PHANTOM 50 LC 1994–1994
• F15 FIREFOX 50 AC 1994–1994
• FIFTY 50 EVOLUTION 1991–1994
• FIFTY 50 FULL CX 1990–1994
• FIFTY 50 TOP 1990–1994
• GRIZZLY RCX 10 1990–2000
• GRIZZLY RCX 12 1990–2000
• MRX 50 1990–1992
