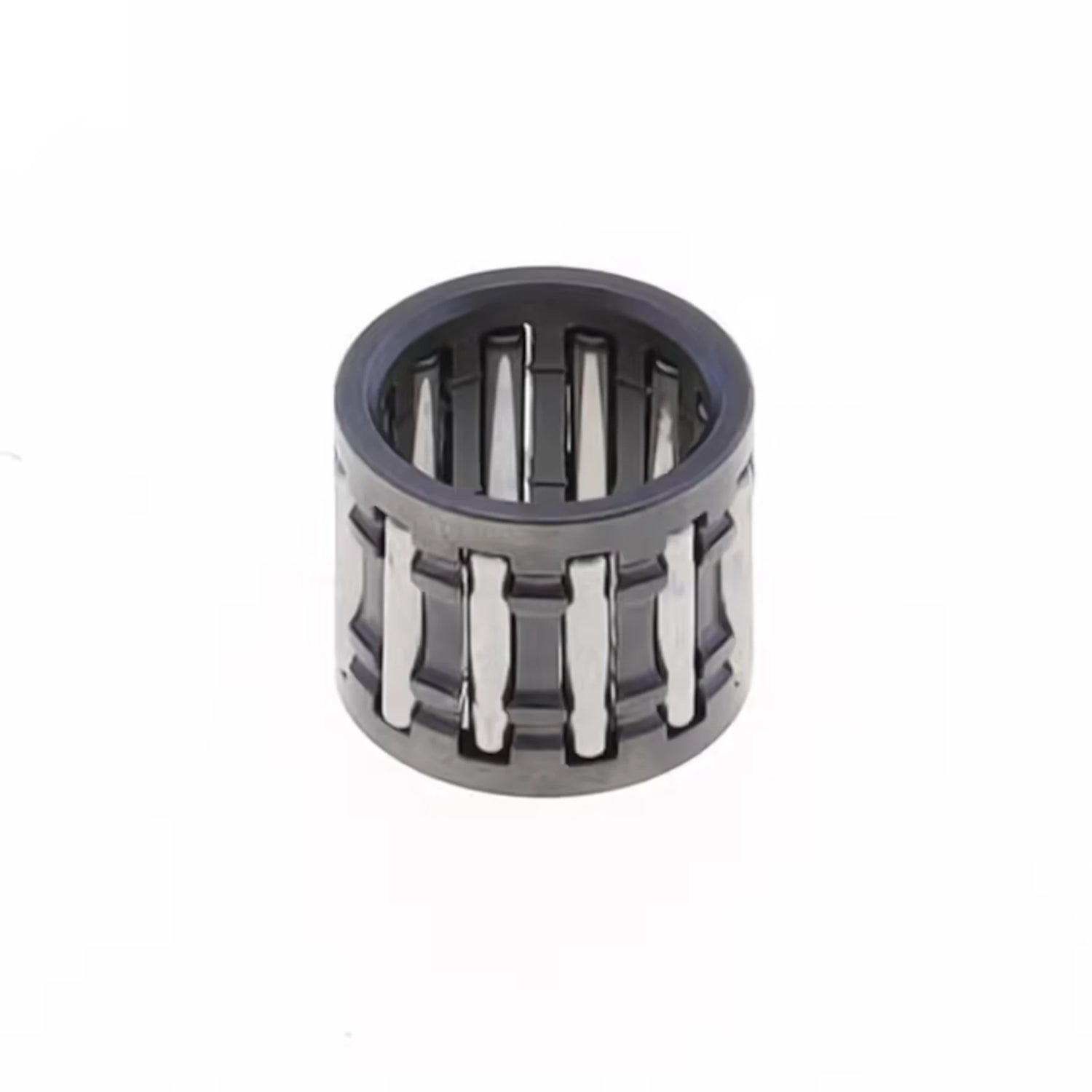

Needle bearing d.16x21x17.5mm Yamaha DT 125 R 04-06 Athena

Needle bearing from manufacturer Athena for Yamaha DT 125 R 04-06.

When the needle bearing operates with excessive play or wear, metallic noises may appear in the upper part of the engine, abnormal vibrations, a rough feel when revving up, or premature wear on the gudgeon pin and the small end of the connecting rod.

A Athena needle bearing in good condition allows the piston pin to operate correctly, with lower friction and more even support of the needles. It is a recommended part when replacing the piston, removing the cylinder, or carrying out internal engine maintenance, since reusing a marked bearing may compromise the reliability of the assembly.

This needle bearing has dimensions of 16x21x17,5 mm, with an inner diameter of 16 mm, an outer diameter of 21 mm, and a height of 17.50 mm. It corresponds to KV bearing type and is compatible with Yamaha OEM reference 93310316B400.

Technical characteristics

• Product type: needle bearing.
• Brand: Athena.
• Vehicle brand: Yamaha.
• Main model: DT 125 R.
• Main years: 2004-2006.
• Inner diameter: 16.00 mm.
• Outer diameter: 21.00 mm.
• Height: 17.50 mm.
• Size: 16x21x17,5 mm.
• Bearing type: KV.
• Yamaha OEM reference: 93310316B400.

Compatible models

YAMAHA

• DT 125 R 2004-2006
• TZR R 125
• TZR RR 125
