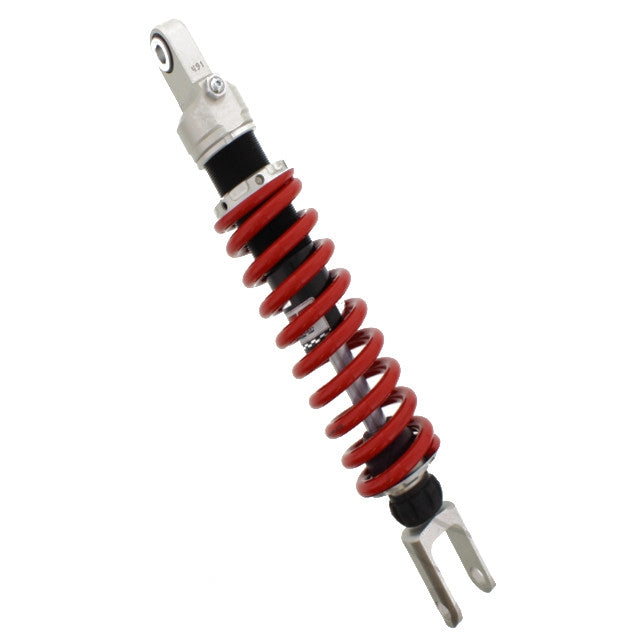

Rear shock absorber Kawasaki KLR 650 95-04 YSS Gas Top Line

Rear shock absorber for Kawasaki KLR 650 from manufacturer YSS.

From the Gas Top Line series, the suspension manufacturer YSS presents this rear shock absorber with a milled aluminum body and adjustable in spring preload and rebound.

The preload of the spring is locked by a threaded pin.

Includes the adjustment tool.

Technical specifications:

• Type: gas pressure
• Upper mounting: Eye
• Inner eye diameter: 12 mm
• Length: 400 mm
• Lower mounting: Fork
• Fork width: 30 mm
• Adjustments:variable spring preload
• Tensile level
• Spring colour: red
• Spring characteristic: 80
• Spring length: 220 mm
• Spring diameter: 46 mm
• Compensation reservoir: no
• Manufacturer: YSS
• Piston diameter: 36 mm
• Piston rod diameter: 16 mm

Assembly instructions

Valid for:

Kawasaki

• Kawasaki KLR 650 1995-2004
