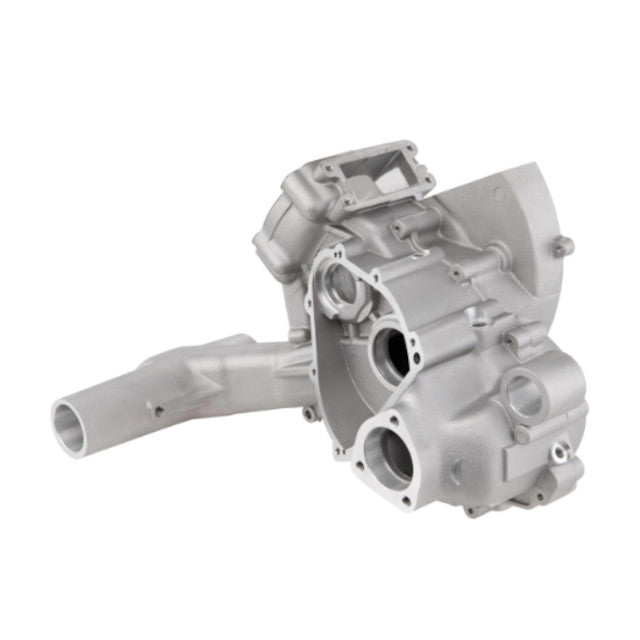

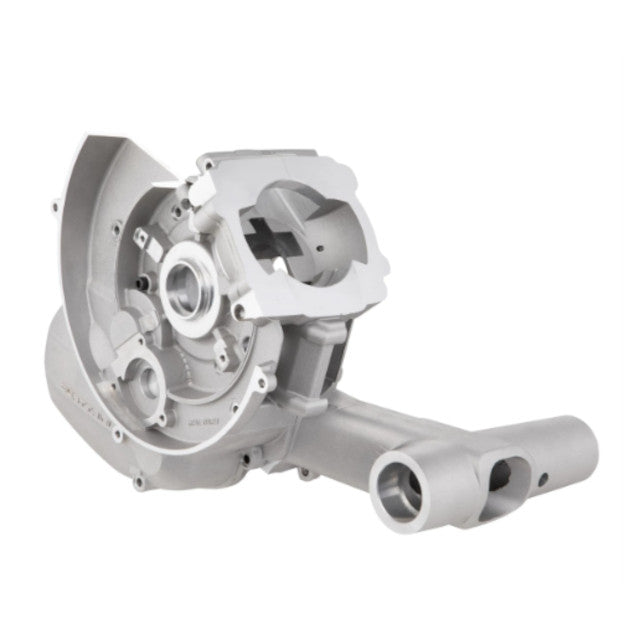

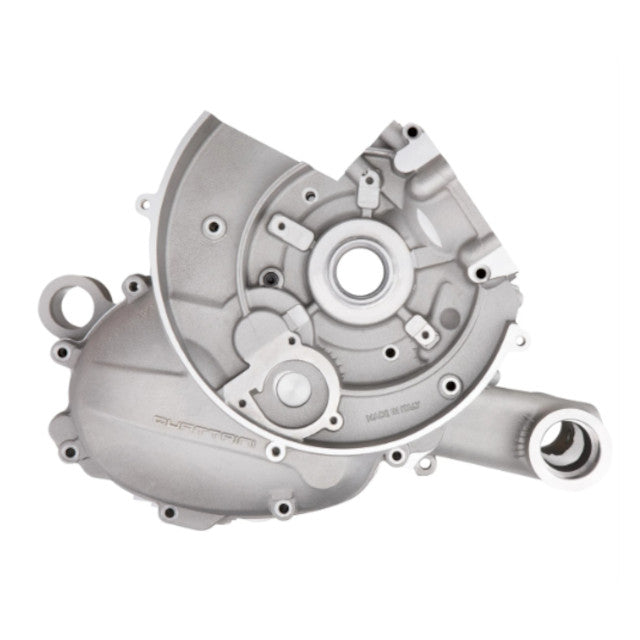

Carter smallframe C1 PRO Vespa Quattrini

Carter smallframe C1 PRO Vespa Quattrini.

Carter for Vespa Smallframe, Primavera, PK, Super, SL. Entirely produced in Italy. Reinforced at specific points, cast in Galsi9 aluminium, it is assembled with 13 allen screws threaded into the same carter with metric 6.

Designed to house a reed box on the opposite side, facing the rear shock absorber. The frame arm is much more resistant than the Piaggio one, allowing you to fit 3.50x10 tyres. It has a housing to install a mechanical water pump, which is operated by a nylon gear that meshes with the primary.

The cylinder plane allows you to fit cylinders with large transfers without needing to add welding. Crankshaft chamber prepared to fit a 95mm blade, 6205 bearings and 24-35-7mm seals. It is possible to fit original replacement parts such as the wheel axle, gearbox, primary, clutch, gear ratios, etc.

This carter comes without the milling for the cylinder studs. You can fit anything from a standard cylinder to an m200. It is prepared for this.
