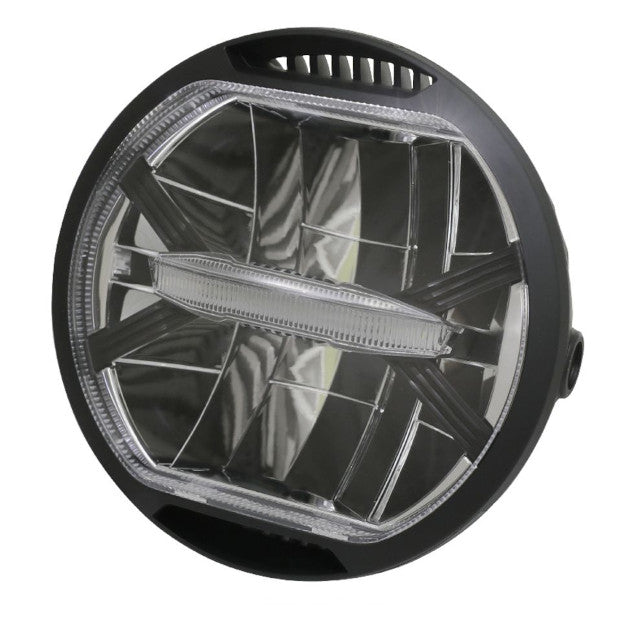

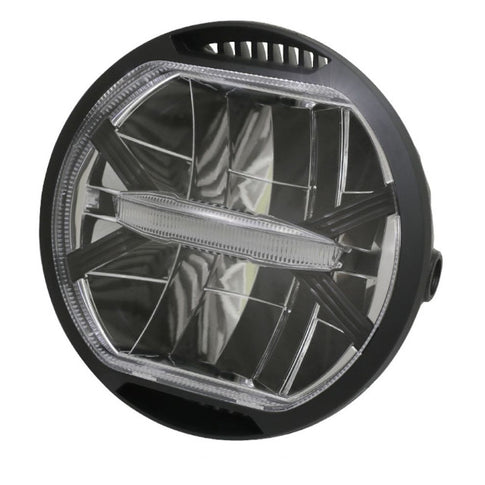

Thunderbolt II LED Optic Koso

Optics Thunderbolt II LED Koso.

Features

Dimensions

• Housing diameter: 170 mm
• Depth: 84 mm (86 mm with lens)
• Distance between mounting hole (center) and end of housing: approx. 48 mm

Wiring diagram

• Combined 3-pin plug
• yellow = low beam (+)
• blue = high beam (+)
• black = ground (-)
• additional cable: white = position light (+), black = ground (-)
• 12V
• low beam: 15 watts
• high beam: 22 watts
• position light: 5 W

Approval: E24-149R00 0238 - JIS D 0203
