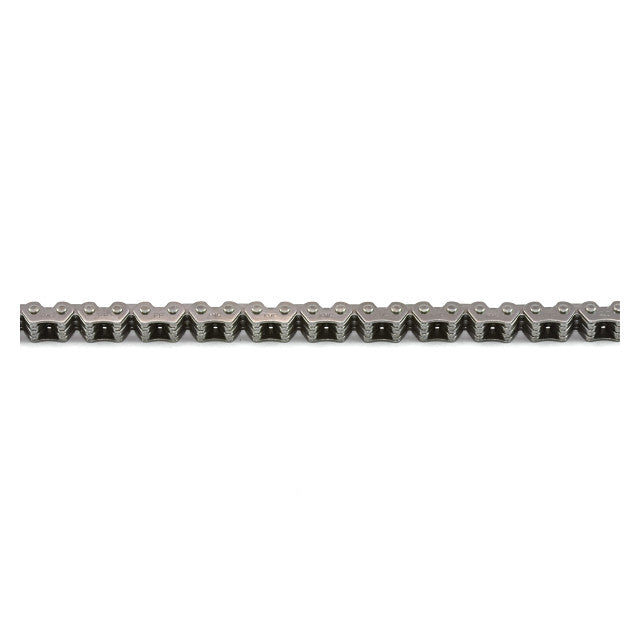

Chain de distribución Suzuki Burgman 400 07-16 KMC

Chain drive chain for Suzuki Burgman 400 from manufacturer KMC

The KMC timing chains are made from high-quality steel, using an advanced stamping method and an exclusive heat treatment for the links.
They maximise the contact area between the links and the sprocket for better chain strength, impact resistance and low operating noise.
These properties make KMC timing chains a very good option as OEM timing chains in terms of quality, reliability and price.

Technical specifications:

• Number of links: 136
• Pitch: 6.35 mm
• Roller link width: 5.10 mm
• Outer mesh thickness: 0.7 mm
• Inner mesh thickness: 1.0 mm
• Inner mesh height: 6.72 mm
• Pin diameter: 2.72 mm
• Pin length: 8.25 mm
• Minimum breaking load: 700
• Average breaking load: 850

Suitable for:

Suzuki

• Suzuki AN400 Burgman K7-L0 400 2007-2010
• Suzuki AN400 Burgman L1-L6 400 2011-2016
• Suzuki AN650 Burgman L4 650 2014
• Suzuki DL650 V-Strom K4-L0 650 2004-2010
• Suzuki DL650 V-Strom L1-L2 650 2011-2012
• Suzuki DL650A V-Strom ABS L3-L5 650 2013-2015
• Suzuki DL650A(UE)-XA(UE)L6 V-Strom 650 2016
• Suzuki DL650XT V-Strom 650 2015
• Suzuki SFV Gladius K9-L0 650 2009-2010
• Suzuki SFV Gladius L1-L5 650 2011-2015
• Suzuki SV650 K3-K7 650 2003-2007
• Suzuki SV650 K8-L0 650 2008-2010
• Suzuki SV650 X-K2 650 1999-2002
• Suzuki SV650A L7 650 2017
• Suzuki SV650SL5 650 2015
