Control unit Aprilia SR MAX 300 Force Master 2.1 Malossi

Control unit Malossi Force Master 2.1 for Aprilia SR MAX 300.

Control unit / Module with which you can adjust the performance in various parameters and obtain greater power.

Gains

• Fuel injection adjustment: Allows you to adjust the amount of fuel injected into the engine, which can result in a more optimal mixture and better fuel efficiency.
• Ignition adjustment: Allows you to adjust the ignition timing, optimizing the spark and improving combustion in the cylinder.
• Self-adaptation mode: Features a self-adaptation function that enables the device to learn and automatically adjust performance parameters according to riding conditions and the rider's style.
• Power increase: Designed to increase engine power, which can result in faster acceleration and improved top speed.
• Improved throttle response: By adjusting fuel injection and ignition, the module can improve throttle response, providing a smoother feel and faster acceleration.

Features

• Gain: ± 14% LOW / HIGH / MEDIUM
• RPM limiter: 700 to 1,000 RPM depending on the application
• Temperature range: -30°C +80°C
• Minimum operating voltage: +7V
• Maximum operating voltage: +16V
• Average current consumption: <200mA
• Environmental protection: IP65
• Power curves: 2 to 6 depending on the model

Compatible models

APRILIA

• SCARABEO Special 300 ie 4T LC euro 3 (PIAGGIO M28RM)
• SPORTCITY CUBE 300 ie 4T LC euro 3 (LEADER M28LM)
• SR MAX 300 ie 4T LC euro 3

DERBI

• RAMBLA i 300 ie 4T LC euro 3 (PIAGGIO)

GILERA

• NEXUS 300 ie 4T LC euro 3

PIAGGIO

• BEVERLY 300 ie 4T LC euro 3 <2009 (M28MM)
• BEVERLY 300 ie 4T LC euro 3 2010-2016 (M692M)
• BEVERLY 300 ie 4T LC euro 4 2017-2020 (MA21M)
• BEVERLY TOURER 300 ie 4T LC euro 3
• CARNABY 300 ie 4T LC euro 3 (QUASAR)
• MP3 300 ie 4T LC euro 3 2009-2014 (QUASAR M634M)
• MP3 300 ie 4T LC euro 3 2014-2016 (M862M)
• MP3 300 ie 4T LC euro 4 2016-2018 (TA11M)
• MP3 YOURBAN SPORT 4V 300 ie 4T LC euro 4 2017-2018
• X7 EVO 300 ie 4T LC euro 3 (QUASAR)
• GTS 300 ie 4T LC euro 4 2017-2018 (MA33M)
• GTS Super 300 ie 4T LC euro 3 <2013 (QUASAR M454M)
• GTS Super 300 ie 4T LC euro 3 2014-2016 (QUASAR M454M)
• GTS Super 300 ie 4T LC euro 4 2017-2018 (QUASAR M458M-M45EM)
• GTV 300 ie 4T LC euro 3 (QUASAR)
• SEI GIORNI 300 ie 4T LC euro 4 >2018

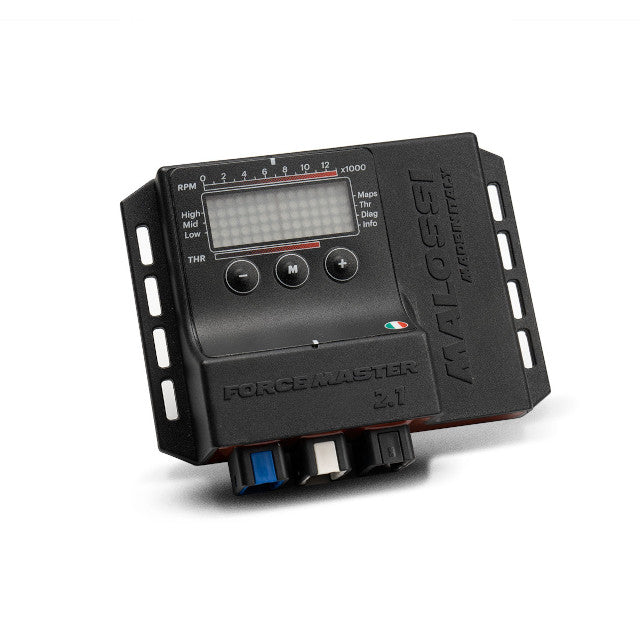

Attention! This is a generic image, it is compatible with the models indicated in the description or in valid for.
